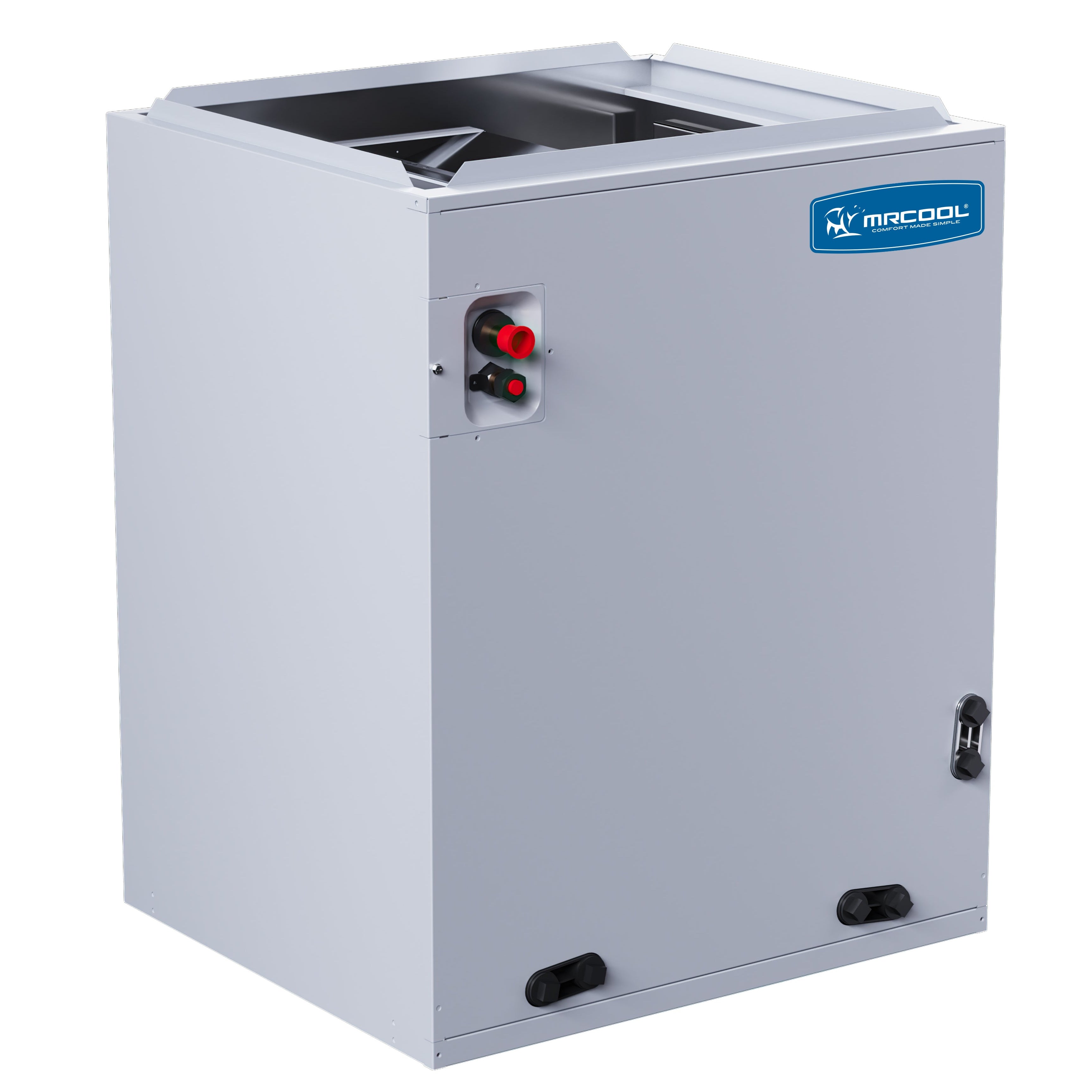

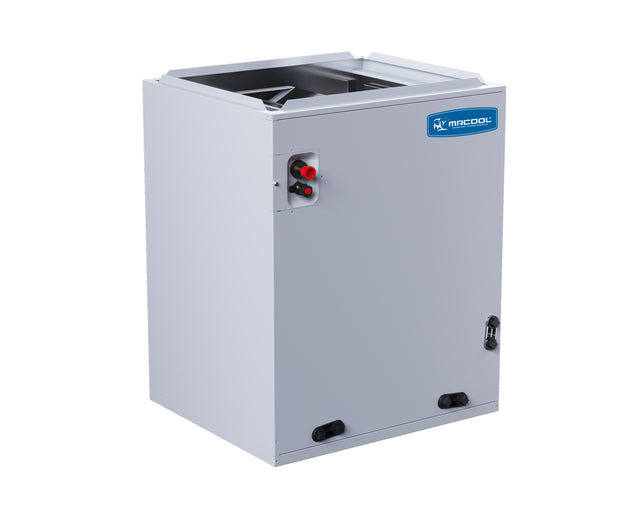

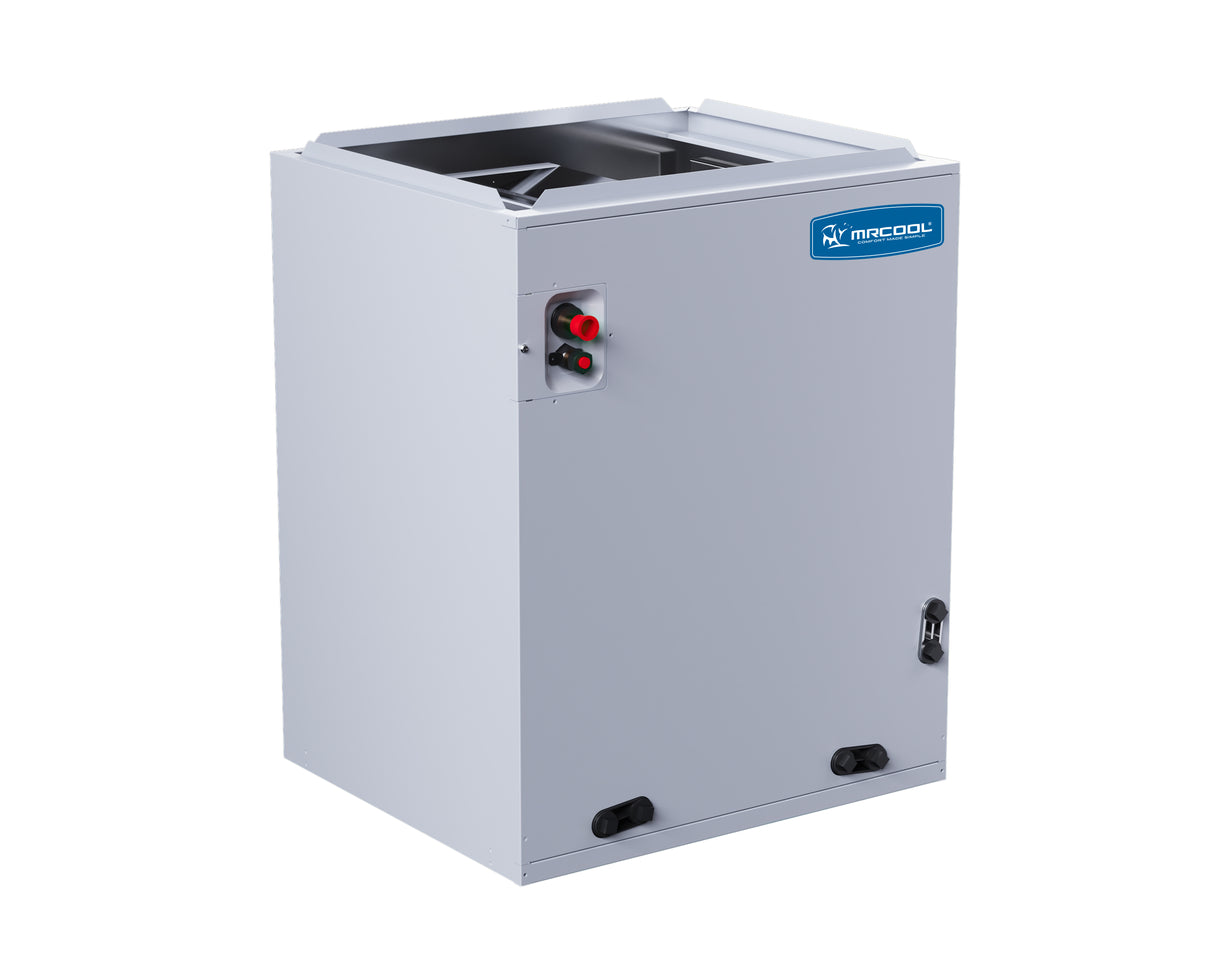

MRCOOL HCMP3036CFOA MRCOOL ProDirect Series A Coil 30K/36K BTU

Product Description

The MRCOOL ProDirect Series A Coil, MPN HCMP3036CFOA, is built for enhancing HVAC system efficiency. It supports R410A and R22 refrigerants, integrating seamlessly into PRODIRECT systems. It features an advanced heat exchanger, including aluminum fins and internally grooved copper tubing. The coil comes within a thermally insulated cabinet covered with foil-faced insulation to optimize performance.

• Compatible with R410A and R22 refrigerants
• Includes aluminum fins and grooved copper tubing for better heat exchange
• Designed with a multi-positional layout for flexible installation

Product Highlights

This unit is UL certified and comes with two drain pans and a supply duct measuring nineteen and a half inches, making it a suitable choice for various installations.

Product Information

Standard Information

• Brand: MRCOOL
• Series: PRODIRECT Series Cased Coils

Technical Specifications

• MPN: HCMP3036CFOA
• Cooling Capacity (BTU): 30,000/36,000
• Liquid Line Size: 3/8 inches
• Suction Line Size: 3/4 inches
• Base Warranty: 5 Years
• Net Depth: 21 inches
• Net Height: 20 inches
• Net Width: 21 inches
• Net Weight: 51 lbs
• Evaporator Coil Tube Material: Aluminum
• Evaporator Coil Tube Size: 9/32 inches
• Supply Duct Size: 19 1/2 inches
• Dimensions (L x W x H): 21.00 in x 21.00 in x 20.00 in
