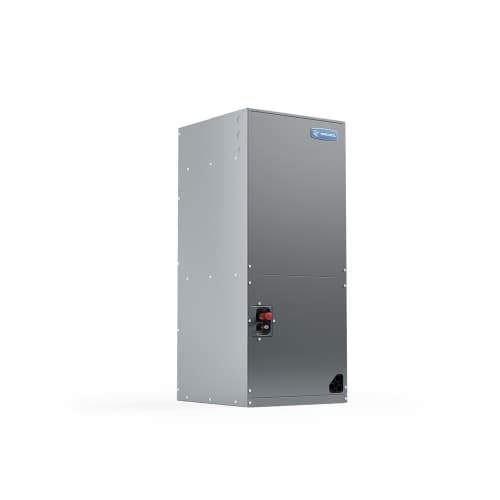

MRCOOL HAH15060 ProDirect 5 Ton Multi-Position Air Handler HAH15060

Product Description

The MRCOOL ProDirect 5 Ton Multi-Position Air Handler, MPN HAH15060, is engineered for central split systems. It features a multi-speed blower motor and an A-shaped evaporator coil for optimal cooling efficiency.

• Multi-speed blower motor for flexibility.
• A-shaped evaporator coil enhances cooling performance.
• Supports various installation positions: upflow, downflow, horizontal.

Product Highlights

This air handler is suitable for multiple configurations and includes a detachable air filter for maintenance ease. It is compatible with heat strips up to twenty kW.

Product Information

Standard Information

• Model: HAH15060
• Cooling Capacity: 5 Ton

Technical Specifications

• Voltage: 230V
• Electrical Phase: 1-Phase
• Heat Strip Compatibility: Up to 20 kW
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Refrigerant: R-410a
• System Application Type: Central Split Systems
• Warranty: 10-Year Registered Warranty
• Certifications: AHRI Certified, ETL Listed
• Product Height: 53.12 inches
• Product Length: 24 inches
• Product Width: 22 inches
• Weight: 175 lbs
• SEER: 14.3
• CFM: 1,580
• Decibel Rating: 60 dBA
• Max Overcurrent Protection: 15 amps
