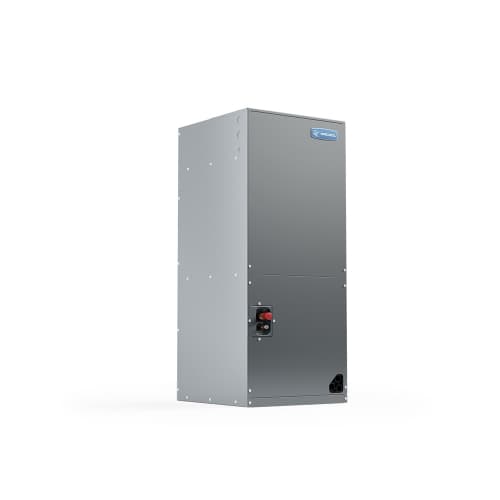

MRCOOL HAH15036 ProDirect Series Air Handler 3 Ton

Product Description

The MRCOOL ProDirect Series Air Handler HAH15036 is suitable for multi-position installation within central split systems. This unit features an A shaped evaporator coil and a three-speed direct drive blower motor for enhanced air flow.

• Includes a removable filter for improved air quality.
• Constructed with a galvanized steel cabinet for corrosion resistance.
• Compatible with electric heat kits for additional heating options.

Product Highlights

This air handler is AHRI certified and ETL listed, ensuring it meets industry standards.

Product Information

Standard Information

• Model: HAH15036
• Series: ProDirect

Technical Specifications

• Cooling Capacity: 3 Ton
• Voltage: 240
• Electrical Phase: 1-Phase
• Heat Strip Compatibility: Up to 15 kW
• Refrigerant: R-410a
• System Application Type: Central Split Systems
• Configuration: Floor Mounted
• Blower Motor: Multi Speed
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
• Max Overcurrent Protection: 15 amps
• Product Height: 45.75 inches
• Product Width: 19.66 inches
• Product Length: 22 inches
• Weight: 140 lbs
• Certifications: AHRI Certified, ETL Listed
