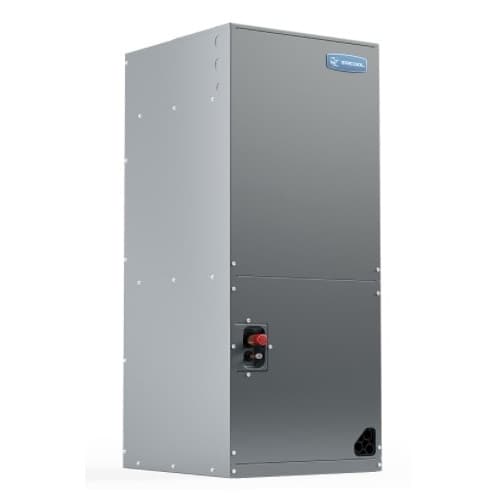

MRCOOL HAH14048 MRCOOL ProDirect 4 Ton 14 SEER Multiposition Split System Air Handler HAH14048

Product Description

The MRCOOL ProDirect 4 Ton 14 SEER Multiposition Split System Air Handler, model HAH14048, is built for central split systems. It is designed with an A-shaped evaporator coil made from copper tubing and aluminum fins. The unit comes with a direct drive blower motor with three speeds, ensuring efficient airflow management.

• Includes a removable filter for easier air cleaning.
• Constructed with a corrosion-resistant galvanized steel cabinet.
• Supports multiple airflow configurations for versatile installation options.

Product Highlights

This air handler is suitable for both residential and commercial applications, providing effective cooling and heating. It can be set up for upflow, downflow, left, or right horizontal airflow, along with compatibility for supplemental heat kits.

Product Information

Standard Information

• Brand: MRCOOL
• Model: HAH14048

Technical Specifications

• Cooling Capacity: 48000 BTU
• SEER: 14
• Airflow: 1695/1574/1434 CFM
• Voltage: 208-230 V
• Phase: 1
• Frequency: 60 Hz
• Sound Level: 51 dBA
• Maximum Sound Level: 54 dBA
• Number of Speeds: 3 Speed
• Filter Type: Replaceable
• Certifications: AHRI Certified & ETL Listed
• Warranty: 10 Year Limited Warranty
• Configuration: Floor Mounted
• Refrigerant: R-410a
