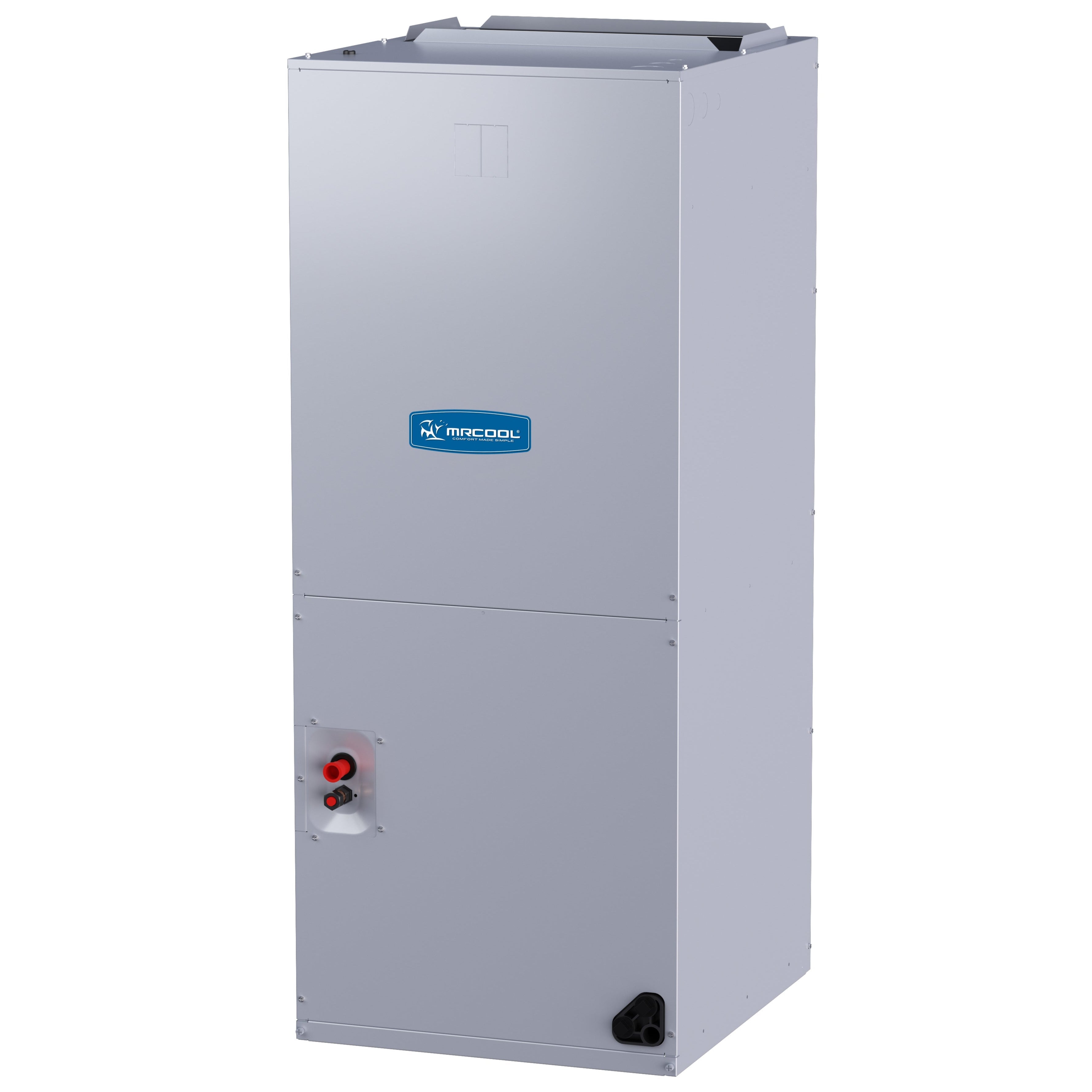

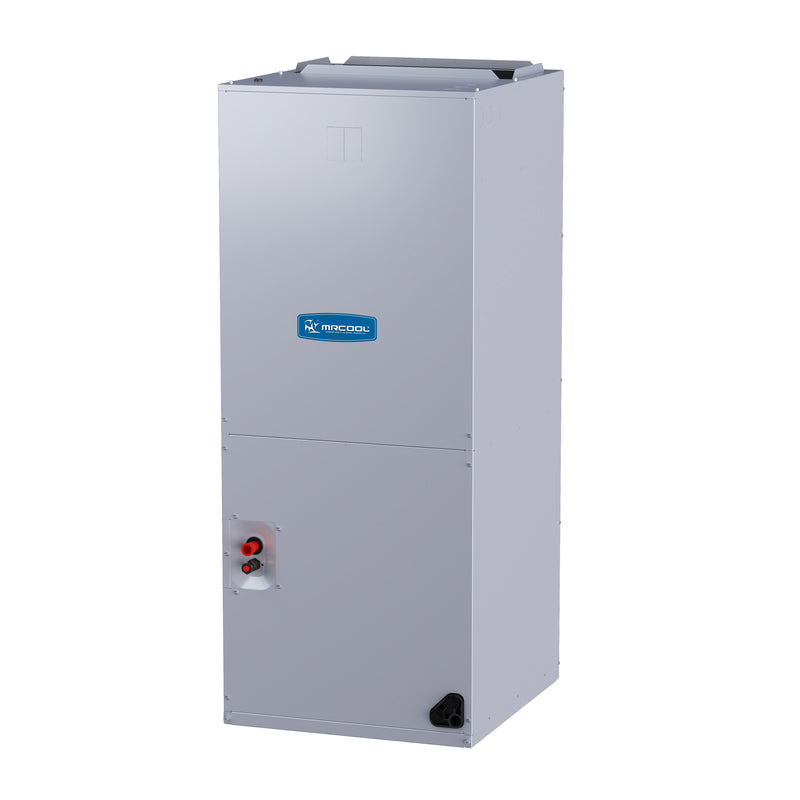

MRCOOL HAH060FPA ProDirect 5 Ton PSC Air Handler

Product Description

The MRCOOL ProDirect 5 Ton PSC Air Handler, MPN HAH060FPA, is suitable for cooling and heat pump systems. It features durable all-aluminum tubes and fins. The factory-sealed cabinet minimizes air leakage during operation. This unit allows for multi-positional installation with both horizontal and vertical condensate drain pans included. Simplified maintenance is achieved with a slide-out blower and coil design. Optional heat kits enhance versatility. The unit is AHRI listed and ETL certified.

• Compatible with cooling and heat pump systems.
• Multi-positional installation is possible.
• Slide-out blower and coil simplify maintenance.

Product Highlights

The MRCOOL ProDirect 5 Ton air handler combines functionality and reliability, making it a solid choice for HVAC professionals.

Product Information

Standard Information

• Brand: MRCOOL
• Model: HAH060FPA

Technical Specifications

• Cooling Capacity: 60000 BTU
• Voltage: 208/230V
• Phase: 1
• Max Fuse Breaker: 15A
• Min Circuit Ampacity: 5.7A
• Refrigerant Type: R410a
• Liquid Line Size: 3/8 inches
• Suction Line Size: 7/8 inches
• Blower Motor Type: PSC
• Blower Motor HP: 3/4
• Blower Motor RPM: 990
• Auxiliary Heater Included: No
• Auxiliary Heater Sizes Available: 5, 7.5, 10, 15, 20
• Net Depth: 24 inches
• Net Height: 54.5 inches
• Net Width: 22 inches
• Net Weight: 161 lbs
• Evaporator Coil Tube Material: Aluminum
• Evaporator Coil Tube Size: 9/32 inches
• Certifications: cETLus Listed, AHRI Certified
• Tonnage: 5
• SEER/EER: 15.2
