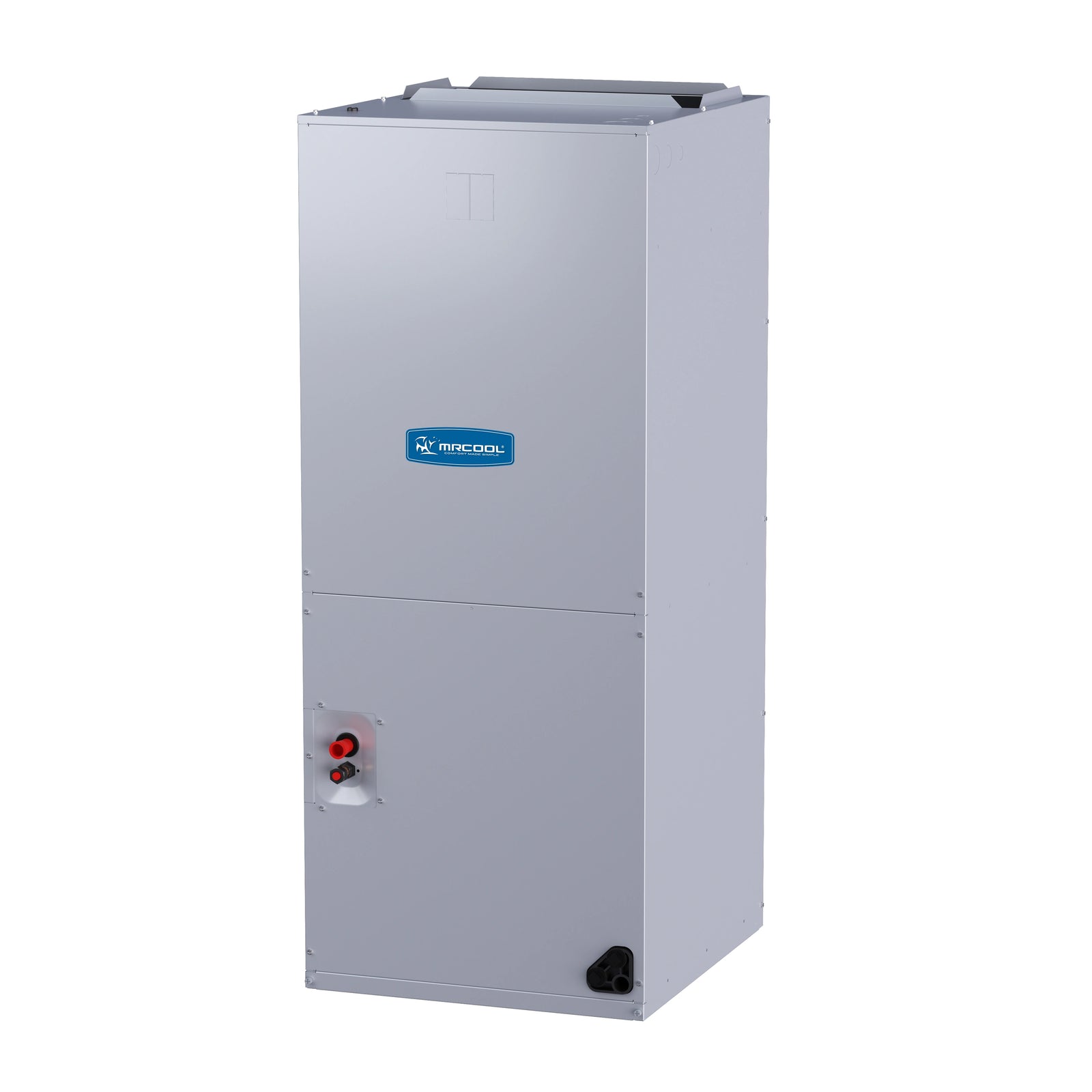

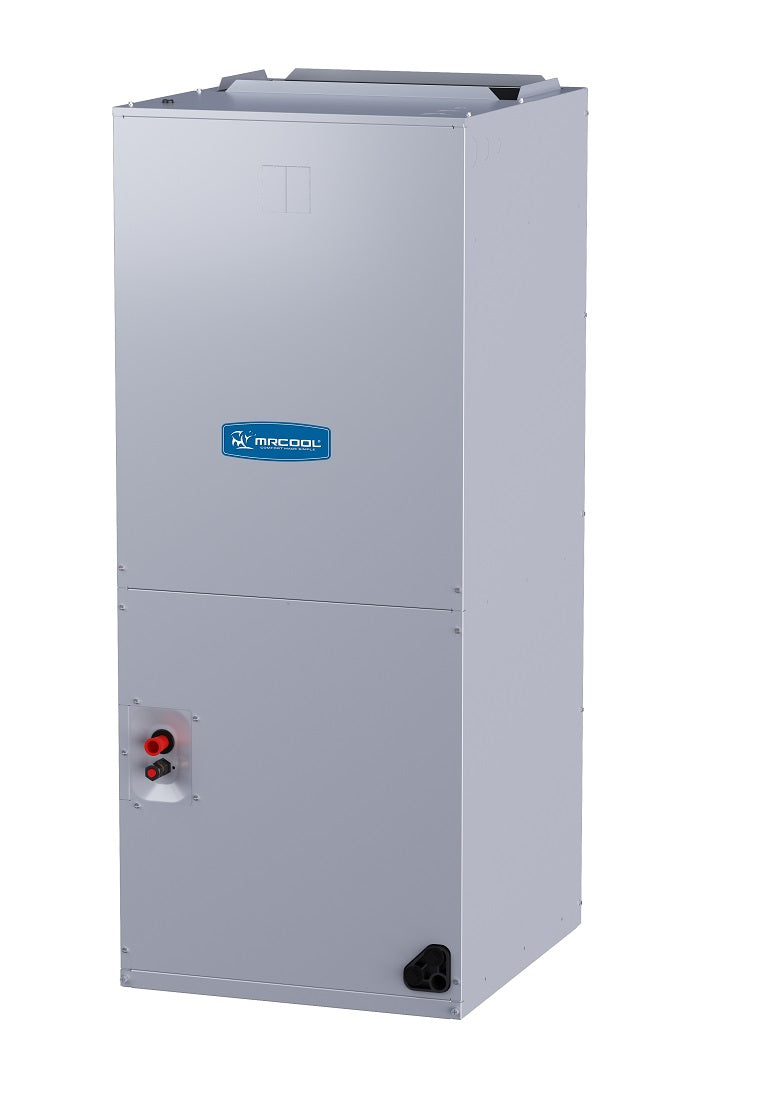

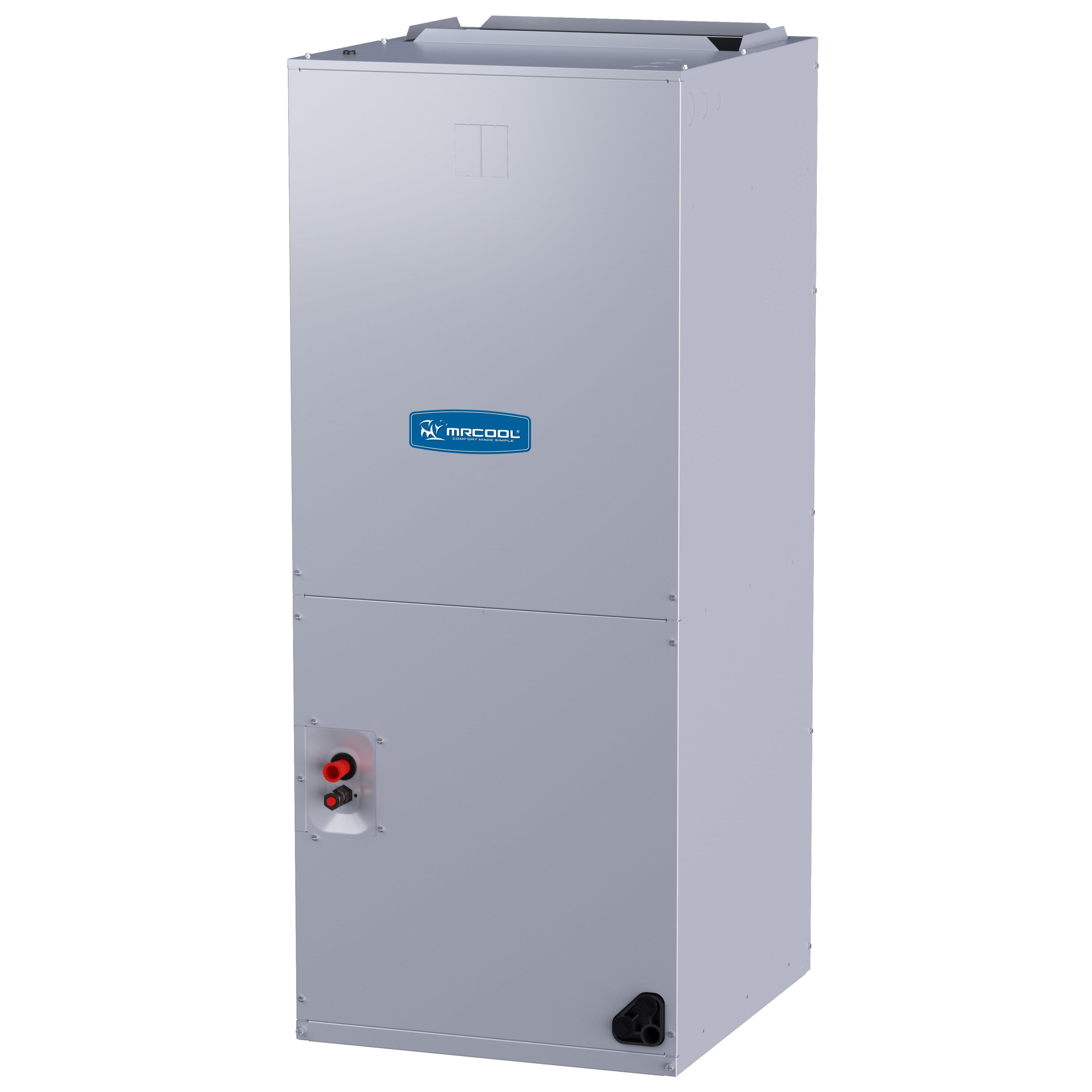

MRCOOL HAH036FPA ProDirect 3rd Gen 36K BTU 3 Ton PSC Air Handler HAH036FPA

Product Description

The MRCOOL ProDirect Series PSC Air Handler HAH036FPA is engineered for compatibility with various cooling and heat pump systems. This air handler is built with all-aluminum tubes and fins that resist corrosion. The factory-sealed cabinet is designed to minimize air leakage during operation. It supports multi-positional installation and comes equipped with both horizontal and vertical condensate drain pans for flexibility.

Maintenance is user-friendly due to the slide-out blower and coil, simplifying the upkeep process. Optional heat kits allow for adjustments in heating capacity, making this a versatile choice for different environments. This unit holds AHRI certification and ETL listing, ensuring it meets industry standards.

• Multi-positional installation capability
• Slide-out blower and coil for easy maintenance
• Includes condensate drain pans, both horizontal and vertical

Product Highlights

The MRCOOL HAH036FPA is a robust air handler ideal for both residential and commercial applications. It is designed to deliver efficient cooling and heating, with ease of serviceability and installation.

Product Information

Standard Information

• Brand: MRCOOL
• Model: HAH036FPA

Technical Specifications

• Cooling Capacity: 36000 BTU
• Tonnage: 3
• Input Voltage: 208V/230V
• Electrical Phase: 1 Ph
• Max Fuse Breaker: 15 A
• Refrigerant Type: R410a
• Blower Motor Type: PSC
• Net Dimensions: 21.625 D x 46.5 H x 19.625 W inches
• Net Weight: 128 lbs
• Certifications: cETLus Listed, AHRI Certified, ETL Listed
