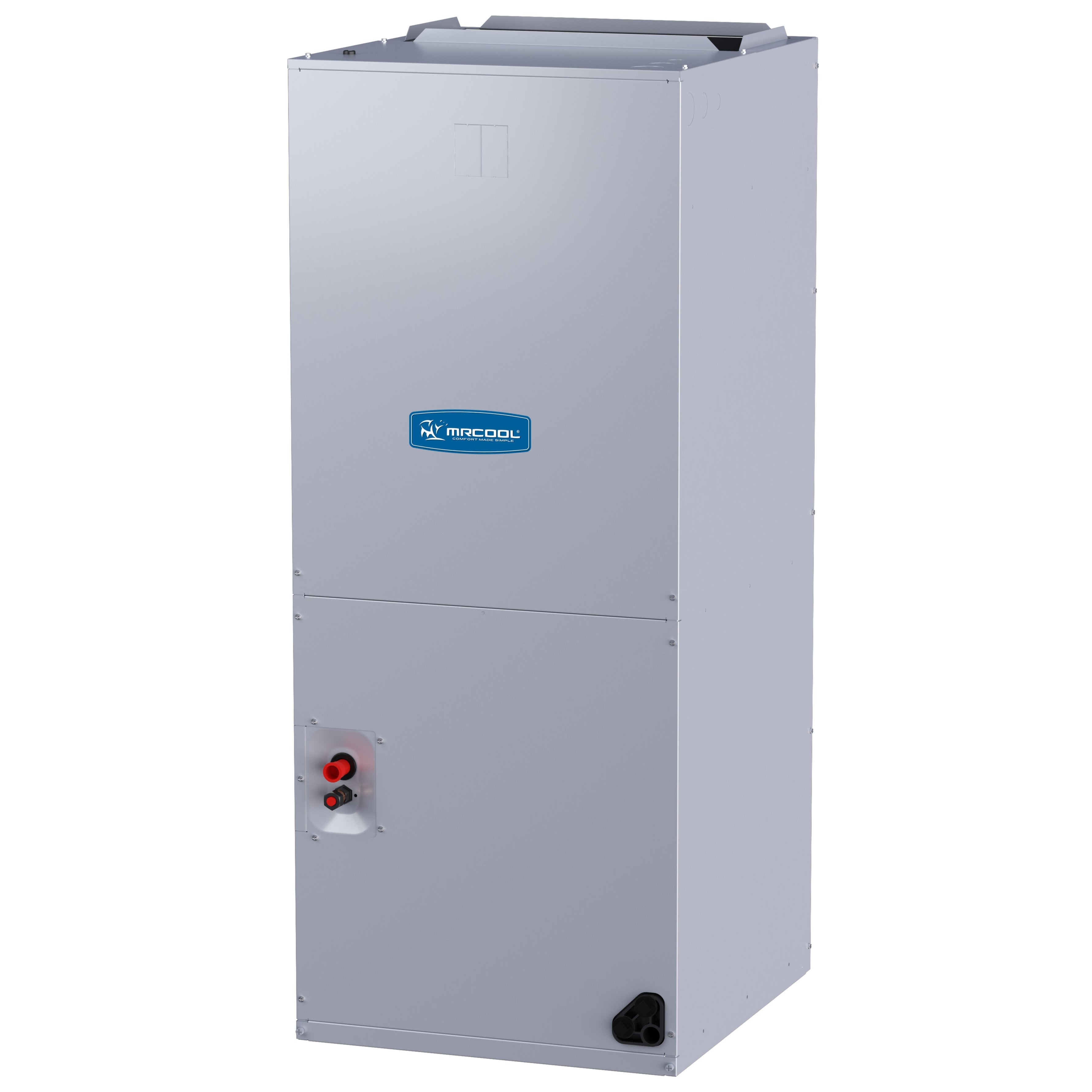

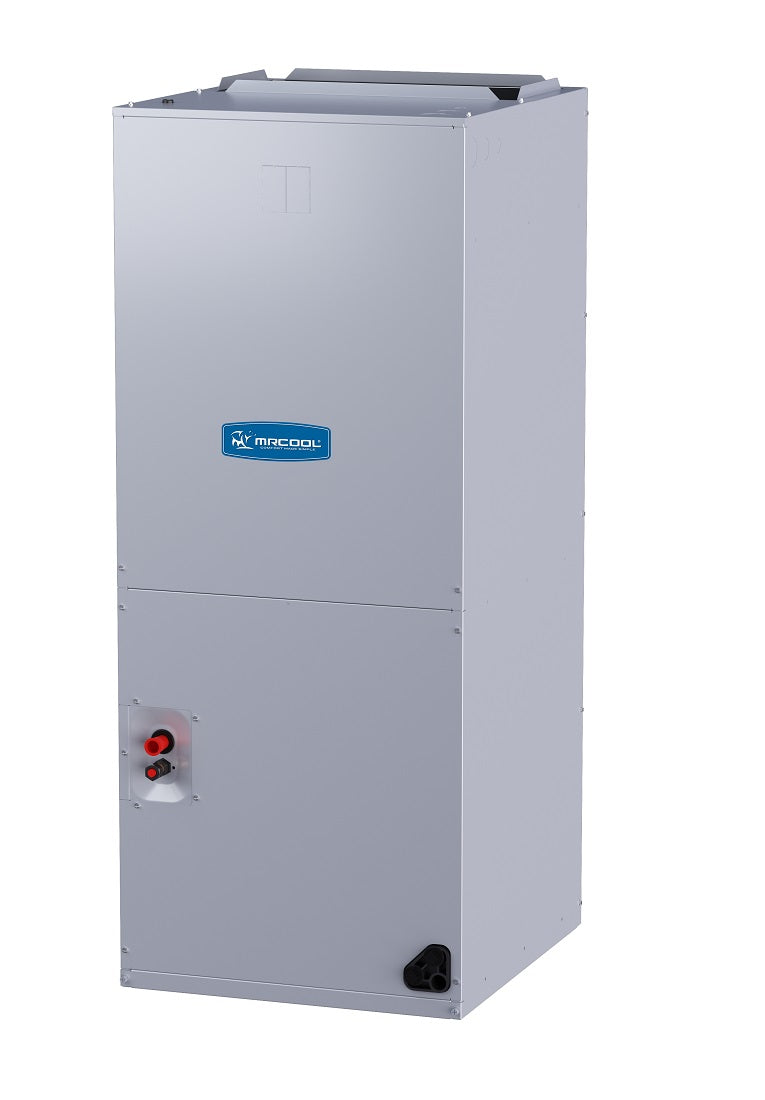

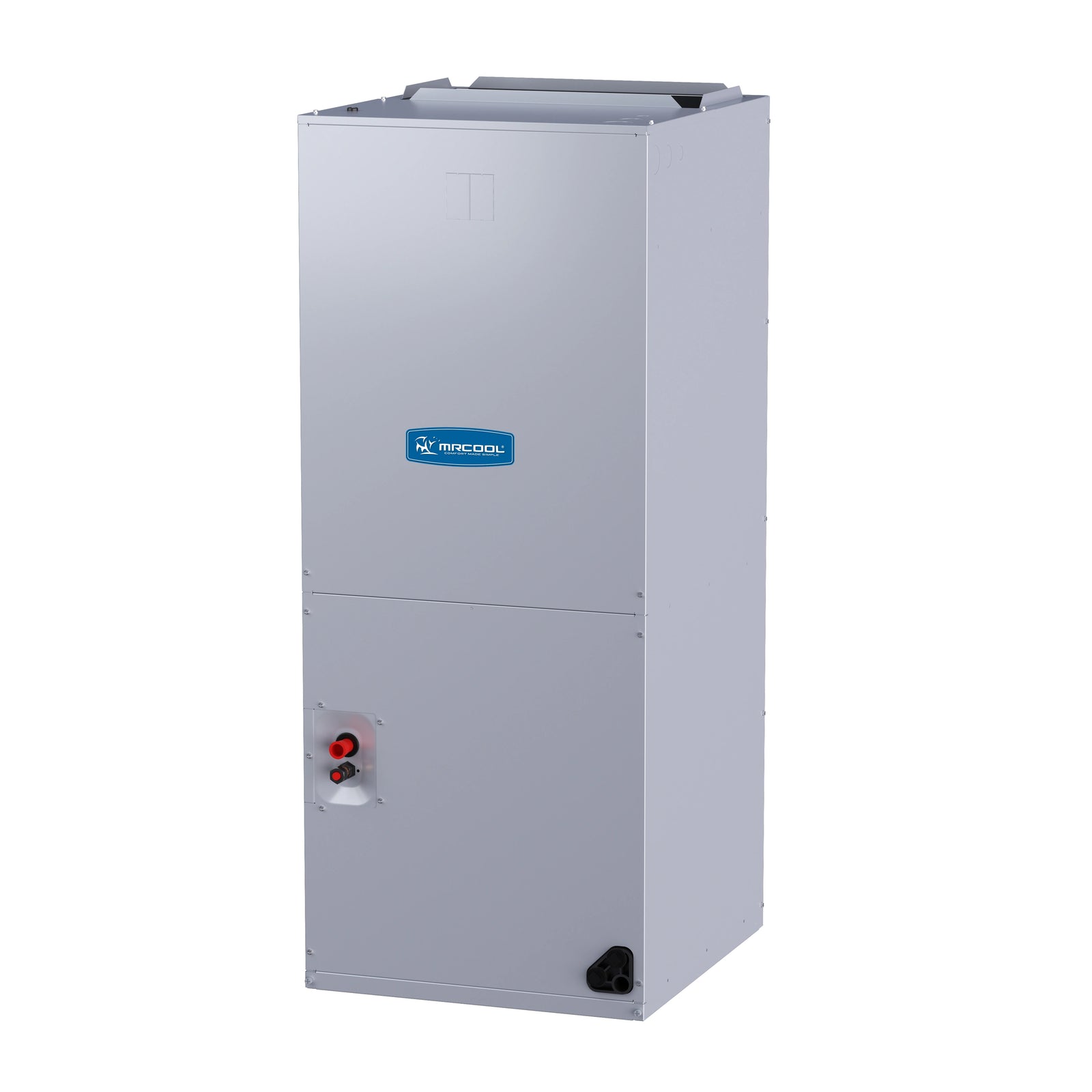

MRCOOL HAH036FEA PRODIRECT Series ECM Air Handler 3 Ton Replacement MPN

Product Description

The MRCOOL 3 Ton PRODIRECT Series ECM Air Handler, model HAH036FEA, is designed for use with cooling systems and heat pumps. The product features a multi-speed ECM blower motor that ensures high efficiency. Constructed with all-aluminum tubes and fins, it offers durability against corrosion. The factory-sealed cabinet minimizes air leakage, optimizing performance.

• Multi-speed ECM blower motor for efficient airflow.
• All-aluminum construction enhances durability.
• Supports horizontal and vertical condensate drain options.

Product Highlights

This air handler allows for multi-positional installation and includes slide-out components for easier maintenance. Optional heat kits can be installed in the field to enhance the system's capability.

Product Information

Standard Information

• Brand: MRCOOL
• Series: PRODIRECT Series ECM Air Handler

Technical Specifications

• MPN: HAH036FEA
• Cooling Capacity: 36000 BTU/H
• Tonnage: 3
• Input Voltage: 208V/230V
• Electrical Phase: 1 Ph
• Cycle: 60 Hz
• Maximum Amperage: 15 Amp
• Max Fuse Breaker: 15 A
• Min Circuit Ampacity: 3.8 A
• Refrigerant Type: R410a
• Liquid Line Size: 3/8 inches
• Suction Line Size: 3/4 inches
• Blower Motor Type: ECM
• Blower Motor HP: 0.5
• Blower Motor RPM: 1050
• Auxiliary Heater Available: Yes
• Auxiliary Heater Sizes: 5,7.5,10,15,20
• Net Depth: 21.625 inches
• Net Height: 46.5 inches
• Net Width: 19.625 inches
• Weight: 125 lbs
• Certifications: AHRI Listed, ETL Certified
• SEER/EER: 15.2
