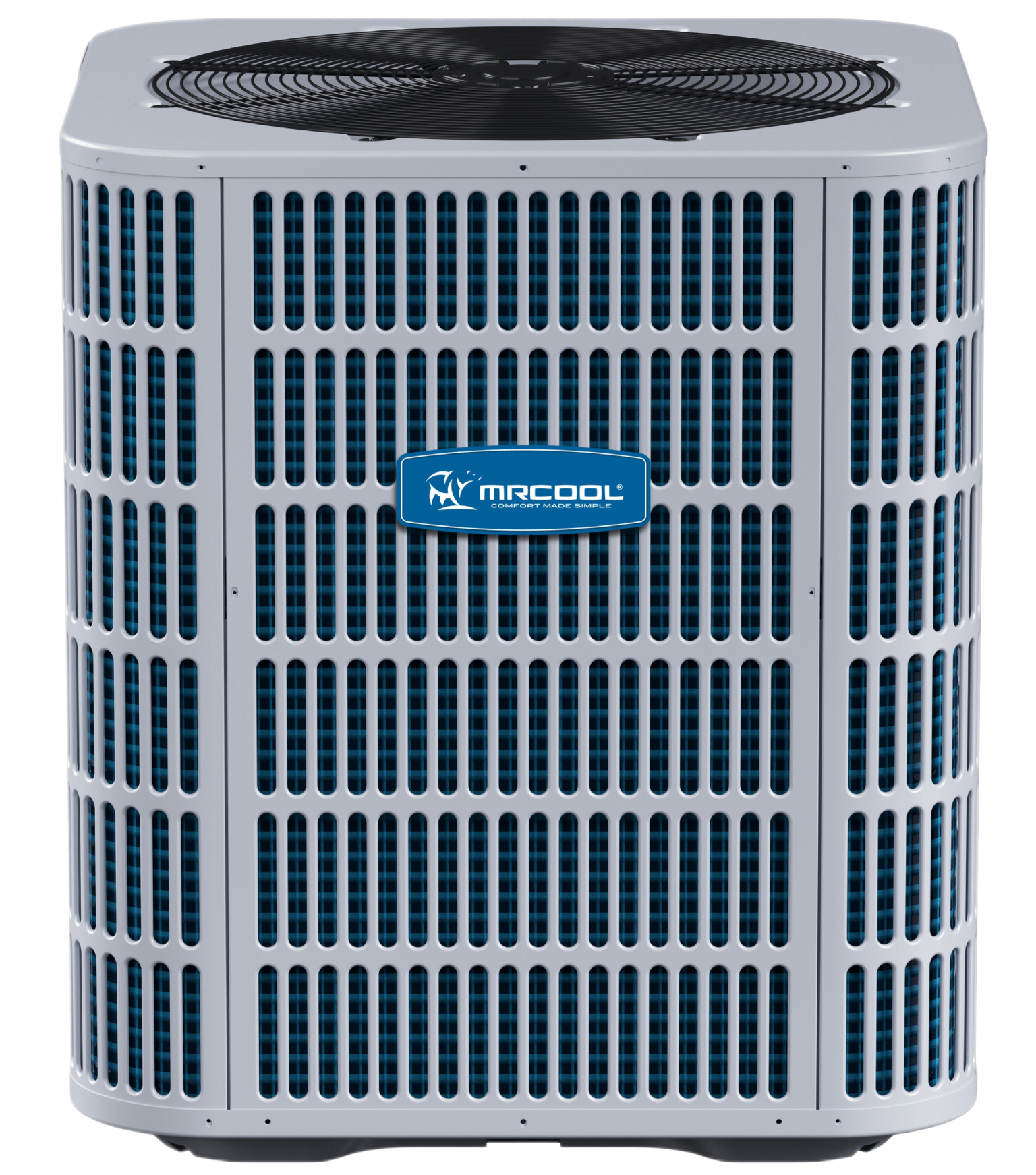

MRCOOL HAC15060FA MRCOOL ProDirect Series 5 Ton Air Conditioner Condenser

Product Description

The MRCOOL ProDirect Series 5 Ton Air Conditioner Condenser, model HAC15060FA, is engineered for effective cooling in residential settings. This unit operates with R-410A refrigerant and incorporates an energy-efficient compressor for optimal performance. It features robust construction with inner-groove copper tubing and aluminum fins designed for heat exchange efficiency.

• Operates with R-410A refrigerant.
• Equipped with sound control top design.
• Includes service valves with sweat connections.

Product Highlights

This air conditioner condenser features a sound control top to reduce noise during operation. It comes with service valves that allow for easy maintenance and repairs. The unit is constructed to withstand various environmental conditions.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: HAC15060FA

Technical Specifications

• Cooling Capacity: 60000 BTU/H
• SEER2 Rating: 15.2
• Input Voltage: 208V/230V
• Electrical Phase: 1 Ph
• Cycle: 60
• Maximum Amperage: 60 Amp
• Minimum Circuit Ampacity: 35.1 A
• Maximum Fuse Breaker: 60 A
• Rated Load: 26.3
• Refrigerant Type: R-410A
• Refrigerant Volume: 126 OZ
• Decibel Rating: 77 DBA
• Liquid Line Size: 3/8 inches
• Suction Line Size: 1 1/8 inches
• Compressor Motor Type: Scroll
• Condenser Fan Motor Type: ECM
• Condenser Fan Motor HP: 1 1/3
• Weight: 194 lbs
• Certifications: AHRI Certified, ETL Listed
• Condenser Dimensions: 29 1/8 inches D x 33 3/16 inches H x 29 1/8 inches W
