MRCOOL GCIK-CL5T-SM 5 Ton Closed Loop Installation Kit with Straight Manifold

Product Description

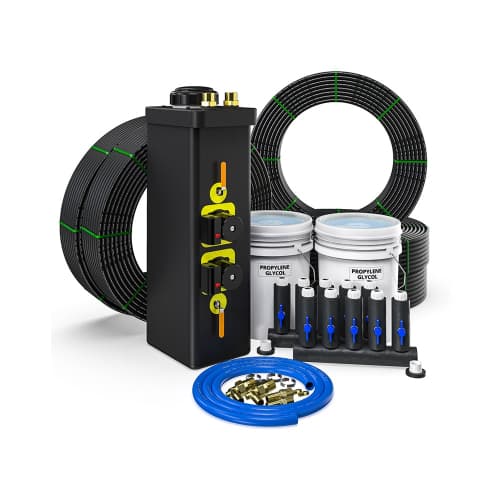

The MRCOOL GCIK-CL5T-SM is a five-ton closed-loop installation kit that is suitable for geothermal systems. This kit contains essential components for installation, including five rolls of three-quarter inch by six hundred feet CenFuse High-Density Polyethylene Loop Pipe SDR 11. It also features a one and one-quarter inch by three-quarter inch five-circuit insulated header in a straight pattern and a Geo-Pulse Non-Pressurized Geothermal Flow Center, which includes a two-pump system. Additionally, the kit comes with a one-inch by twelve-foot geothermal hose kit that contains one MPT to one barb ninety-degree elbow union adapters, along with ProTek PG Plus Propylene Glycol Heat Transfer Fluid in a five-gallon container.

• Includes high-density polyethylene loop pipe.
• Features a five-circuit insulated header with a straight pattern.
• Contains propylene glycol heat transfer fluid.

Product Highlights

This installation kit simplifies the geothermal setup process, offering reliable components for effective performance.

Product Information

Standard Information

• Equipment Type: Install Kit
• Configuration: Straight

Technical Specifications

• Proposition 65 Warning: Yes
• Components Dimensions FS4701100750600: fifteen inches x forty inches x forty-eight inches (HxWxD) 101 lbs.
• Components Dimensions HPVC1207X5S: seven inches x twenty-seven inches x twenty-seven inches (HxWxD) 20 lbs.
• Components Dimensions GP22K-SU10F-R2: forty inches x eighteen inches x thirteen inches (HxWxD) 55 lbs.
• Components Dimensions HK10U9012: six inches x eighteen inches x eighteen inches (HxWxD) 5 lbs.
• Components Dimensions 9992102: fourteen inches x twelve inches x twelve inches (HxWxD) 45 lbs.
• Shipping Height: forty-eight inches
• Shipping Width: forty inches
• Shipping Depth: seventy-five inches
• Product Code: GCIK-CL5T-SM
• Manufacturer: Mr. Cool
• SKU: GCIK-CL5T-SM
