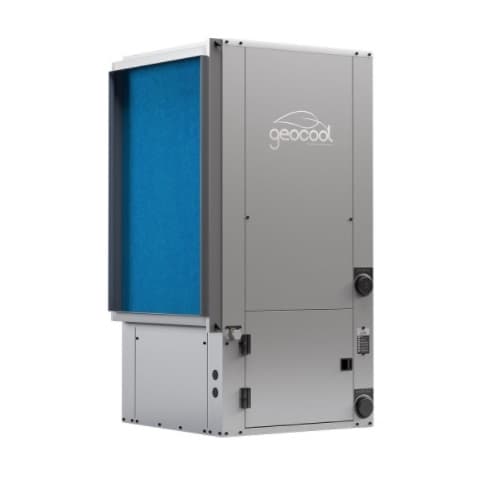

MRCOOL GCHPV024TGTANXR GeoCool Geothermal Heat Pump

Product Description

The MRCOOL GeoCool GCHPV024TGTANXR is a two-ton geothermal heat pump designed for vertical installation. This model operates on 208-230V, single-phase, 60 Hz power and uses R-410A refrigerant. The heat pump features a scroll compressor and comes with a three-quarter horsepower blower motor and a replaceable twenty-eight by thirty-inch filter.

• Energy-efficient design certified by ENERGY STAR
• ETL listed and AHRI certified
• Suitable for spaces up to one thousand square feet

Product Highlights

This geothermal heat pump is suitable for residential and light commercial use. It meets high efficiency standards and is optimal for reducing energy costs.

Product Information

Standard Information

• Country of Origin: USA
• UPC: 8.18545E+11

Technical Specifications

• Model Number: GCHPV024TGTANXR
• Voltage: 208-230V
• Phase: Single-Phase
• Frequency: 60 Hz
• Cooling Capacity: 21900 - 29000 BTU/H
• Heating Capacity: 16500 - 25700 BTU/H
• Compressor Motor Type: Scroll
• Blower Motor HP: 3/4
• Refrigerant: R-410A
• Filter Size: 28x30
• Filter Type: Replaceable
• Max Fuse Breaker: 34 amps
• Minimum Circuit Ampacity: 21.9 amps
• Depth: 32 inches
• Height: 44 inches
• Width: 25.75 inches
• Net Weight: 290 lbs
• EER Ground Water (FULL): 27.40
• EER Ground Loop (FULL): 17.95
• EER PART LOAD Ground Water (PART): 36.50
• EER PART LOAD Ground Loop (PART): 25.93
• COP 47 Ground Water (FULL): 5.40
• COP 47 Ground Loop (FULL): 4.20
• COP 47 PART LOAD Ground Water (PART): 5.50
• COP 47 PART LOAD Ground Loop (PART): 4.70
• HSPF Ground Water Fluid Flow Rate: COOLING: (PART) 7 - 8 (FULL) / HEATING: (PART) 7 - 8 (FULL)
• AFUE Ground Loop Fluid Flow Rate: COOLING: (PART) 7 - 8 (FULL) / HEATING: (PART) 7 - 8 (FULL)
• CFM COOLING (PART): 850 - 1000 (FULL)
• CFM HEATING (PART): 800 - 950 (FULL)
• Tonnage: 2
• Compressor Amps: 12.1
• Blower Motor Amps: 6.8
