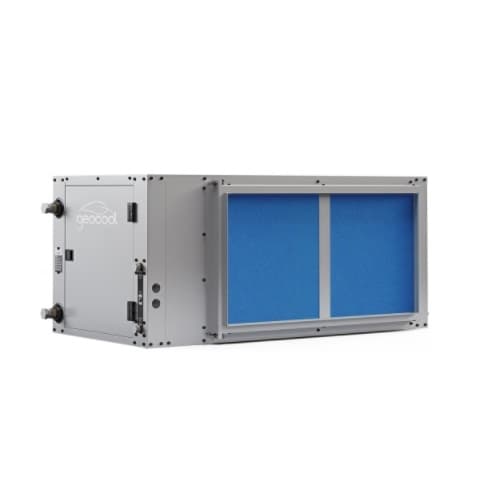

MRCOOL GCHPH048TGTANXL GeoCool 48K BTU Horizontal Two-Stage Geothermal Heat Pump

Product Description

The MRCOOL GeoCool GCHPH048TGTANXL is a two-stage geothermal heat pump designed for horizontal installation with a left return. It runs on a power supply of 230 volts and 60 Hz, making it suitable for various applications. The pump has a nominal capacity of 48,000 BTU and efficiently heats and cools spaces up to two thousand square feet. It incorporates a scroll compressor and a three-quarter horsepower axial flux blower motor, ensuring reliable performance.

• Utilizes R-410A refrigerant
• ETL listed, AHRI certified, and ENERGY STAR compliant
• Includes replaceable filters (20x22 & 20x20)

Product Highlights

This geothermal heat pump provides effective heating and cooling with minimal energy use, making it a smart choice for environmentally conscious consumers.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: GCHPH048TGTANXL

Technical Specifications

• Tonnage: 4
• Stages: Two-Stage
• Voltage: 230V
• Phase: 1
• Frequency: 60 Hz
• Cooling Capacity: 41,000 - 56,000 BTU/H (Ground Water), 38,000 - 50,000 BTU/H (Ground Loop)
• Heating Capacity: 34,500 - 50,000 BTU/H (Ground Water), 38,000 - 50,000 BTU/H (Ground Loop)
• Refrigerant Type: R-410A
• Compressor Motor Type: Scroll
• Blower Motor Type: Axial Flux
• Blower Motor HP: 3/4
• Filter Type: Replaceable
• Filter Size: 20x22 & 20x20
• Maximum Coverage Area: 2000 sq. ft.
• Minimum Circuit Ampacity: 35.2
• Maximum Fuse Breaker: 57.9
• EER: 26.00 (Ground Water), 16.65 (Ground Loop)
• COP: 4.90 (Ground Water), 4.00 (Ground Loop)
• Dimensions: 56 inches D x 23.125 inches H x 25.75 inches W
• Net Weight: 345 lbs
• Color: Gray
• Energy Star Certified: Yes
• Base Warranty: 5 year limited parts warranty
