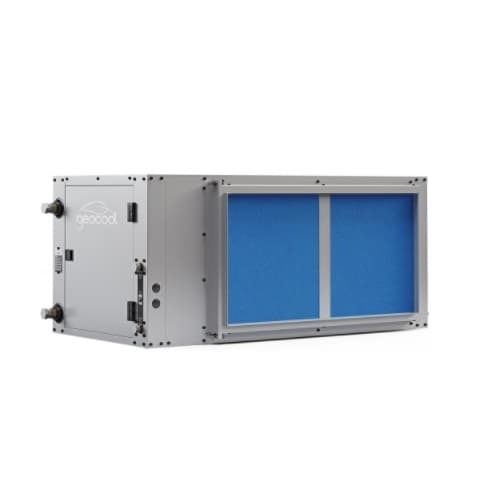

MRCOOL GCHPH024TGTANXR GeoCool 24K BTU Horizontal Heat Pump

Product Description

The MRCOOL GeoCool GCHPH024TGTANXR is a two-ton horizontal heat pump suitable for spaces up to one thousand square feet. This unit operates on a voltage of 208-230 volts and is designed for single-phase, sixty hertz electrical supply. It uses R-410A refrigerant and includes a scroll compressor for efficient operation. The Axial Flux blower motor enhances airflow. Maintenance is simplified with replaceable filters included in the design.

• Operates on 208-230V, single-phase, 60 Hz electrical service.
• Features a two-stage compressor and uses R-410A refrigerant.
• Includes replaceable filters for easy maintenance.

Product Highlights

Product Information

Standard Information

• Brand: MRCOOL
• Model Number: GCHPH024TGTANXR

Technical Specifications

• Heating Technology: Heat Pump
• System Size: 2-ton
• Voltage: 230V
• Phase: 1
• Frequency: 60 Hz
• Cooling Capacity: 29000 BTU/H
• Heating Capacity: 25700 BTU/H
• Refrigerant: R-410A
• Compressor Type: Scroll
• Blower Motor HP: 3/4
• Blower Motor Type: Axial Flux (No Shaft)
• Filter Size: 20X37
• Filter Type: Replaceable
• Minimum Circuit Ampacity: 21.9 amps
• Maximum Fuse Breaker: 34 amps
• Net Depth: 51 in
• Net Height: 23.125 in
• Net Width: 25.75 in
• Net Weight: 305 lb
• Color: Gray
• Suitable Area: up to 1,000 sq. ft.
• EER Ground Water (FULL): 27.40
• EER Ground Loop (FULL): 17.95
• COP 47 Ground Water (FULL): 5.40
