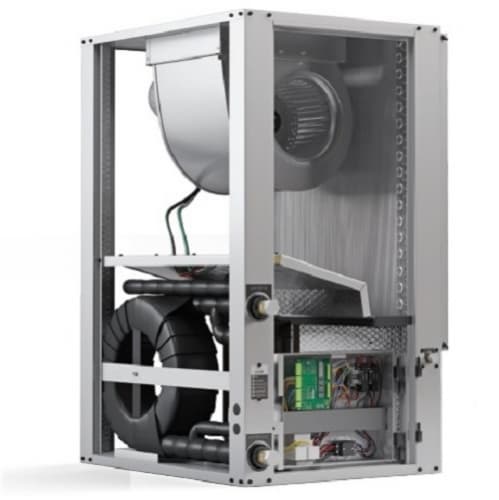

MRCOOL GCHPD060TGTANDR GeoCool 60K BTU Downflow Two-Stage Heat Pump

Product Description

The MRCOOL GCHPD060TGTANDR is a heat pump from the GeoCool series, providing a cooling capacity of sixty thousand BTUs. This unit is designed specifically for downflow air circulation and features a two-stage compressor. It operates on a 230-volt, 1-phase, 60 Hz electrical supply and is built with a CuNi coil and heater. This heat pump is appropriate for spaces ranging from two thousand five hundred to three thousand square feet.

• Downflow air circulation design.
• Operates on a 230V, 1-Phase, 60Hz power supply.
• Equipped with a two-stage compressor.

Product Highlights

This heat pump is suitable for large residential or commercial applications, offering efficient climate control.

Product Information

Standard Information

• Model: GCHPD060TGTANDL
• AHRI Number: 204370721

Technical Specifications

• Air Flow Direction: Downflow
• Coverage Area: 2,500 - 3,000 Sq Ft
• Blower Motor: Variable Speed
• Compressor: Two Stage
• Cooling Capacity: 5 Ton
• EER: 31
• Electrical Phase: 1-Phase
• Heat Pump Efficiency (COP): 5.29
• HWG Connection: 1/2 inch
• Loop Connection: 1 inch
• Max Overcurrent Protection: 65 amps
• Primary Heating Capacity: 55,001 - 60,000 BTU
• Product Height: 62.5 inches
• Product Length: 32 inches
• Product Width: 25.75 inches
• Voltage: 240
• Weight: 380 pounds
• Dimensions: 32 inches x 25.75 inches x 62.5 inches
