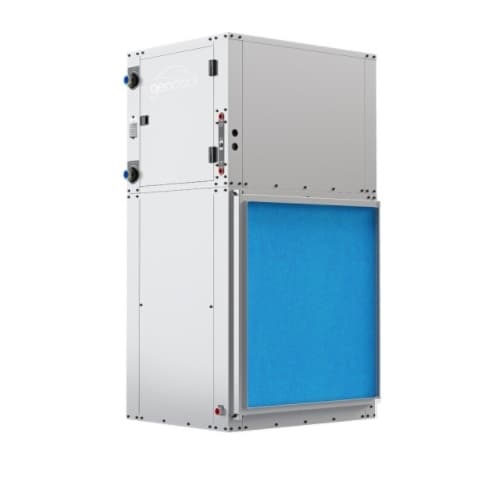

MRCOOL GCHPD024TGTANXR GeoCool 24K BTU 2 Ton Geothermal Heat Pump

Product Description

The MRCOOL GCHPD024TGTANXR is a geothermal heat pump with a capacity of two tons. It is designed for downflow configuration with a right return. This unit operates on 230V, 1-phase, 60Hz power. It features a CuNi coil, a scroll compressor, and a shaftless axial flux blower motor.

• Two-stage operation for efficient heating and cooling.
• Insulated drain pan and double O-ring water connections.
• High and low pressure switches for safety.

Product Highlights

This geothermal heat pump efficiently transfers heat using renewable energy sources, making it suitable for both residential and commercial applications.

Product Information

Standard Information

• Manufacturer: MRCOOL
• Product Code: GCHPD024TGTANXR

Technical Specifications

• Tonnage: 2
• Configuration: Downflow, Right Return
• Cooling Capacity Ground Water (PART): 23000 - 29000
• Heating Capacity Ground Water (PART): 19000 - 25700
• Input Voltage: 230V single-phase
• Stages: Two-Stage
• Maximum Fuse Breaker: 34.0
• Min Circuit Ampacity: 21.9
• Max Coverage Area: 1000
• Refrigerant Type: R-410A
• Compressor Type: Scroll
• Blower Motor Type: Axial Flux (No Shaft)
• Blower Motor HP: 3/4
• Filter Type: Replaceable
• Warranty: 10 year registered parts limited warranty
• Dimensions (L x W x H): 32.00in x 25.75in x 56.00in
• Net Weight: 325
• Coil Type: CuNi coil
• EER Ground Water (FULL): 27.40
