MrCool DIY25-3858C-O Lineset 3/8 x 5/8 25 Foot

Product Description

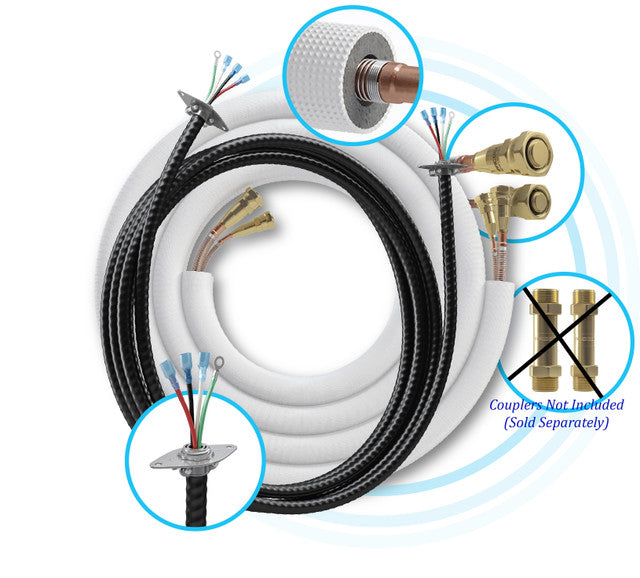

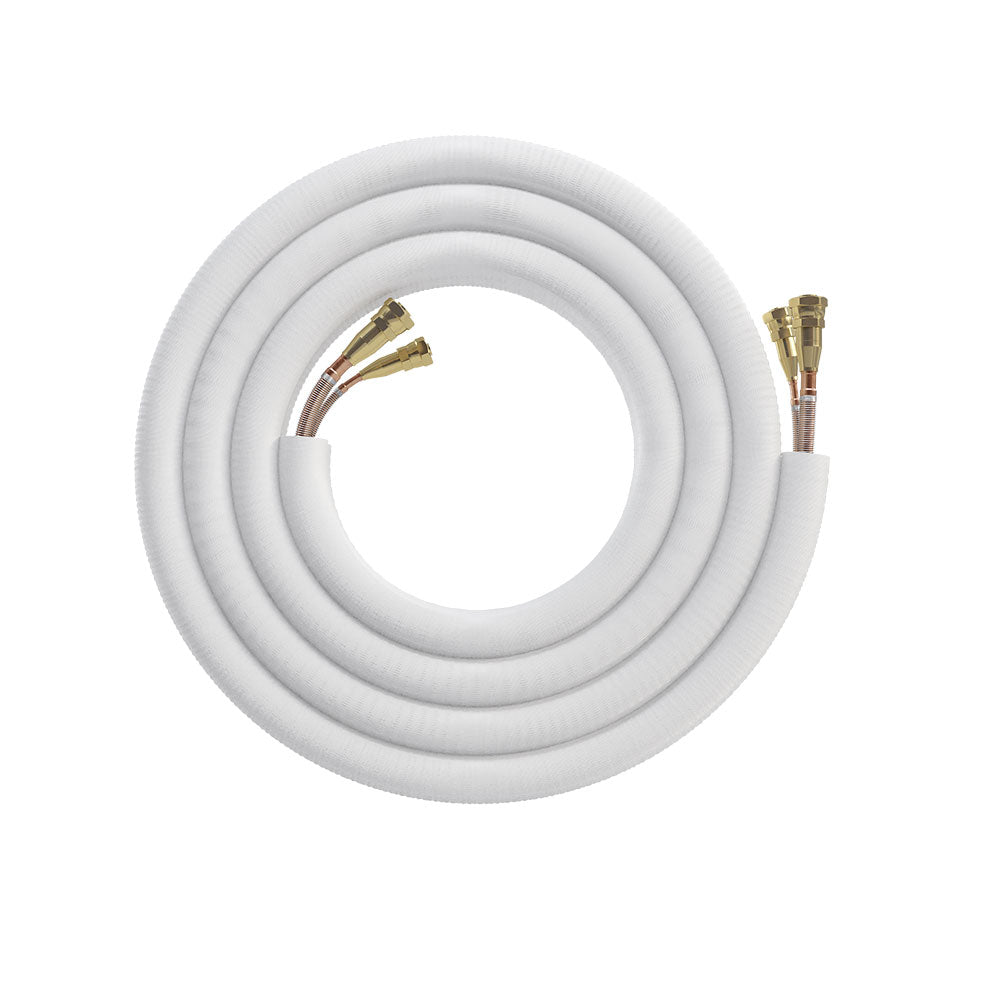

The MrCool DIY25-3858C-O is a 25-foot insulated line set designed for MrCool DIY 24,000 and 36,000 BTU indoor air handling units. This line set includes a 3/8 inch liquid line and a 5/8 inch suction line. The unique design features quick connect fittings, making installation simple without the need for cutting or brazing.

• Length: 25 feet.
• Compatible with DIY 24K and 36K units.
• Includes Pro Cable for added versatility.

Product Highlights

The MrCool line set allows for easy connection between the outdoor condenser and indoor air handler.

Product Information

Standard Information

• Brand: MrCool
• Model: DIY25-3858C-O

Technical Specifications

• Liquid Line Size: 3/8 inches
• Suction Line Size: 5/8 inches
• Length: 25 feet
• Insulation Type: UV protective sleeve
• Compatibility: 24,000 and 36,000 BTU units
• Included Component: Pro Cable
• Installation Type: Quick connect fitting
