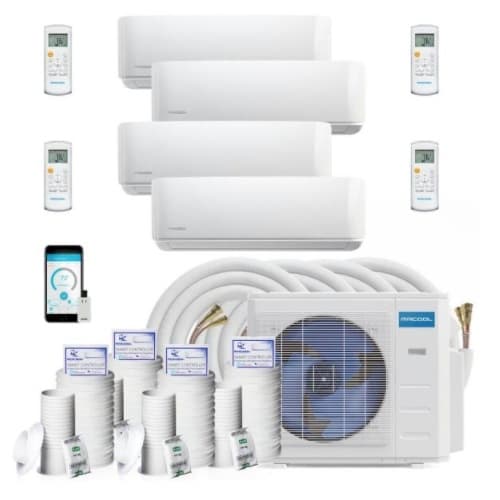

MRCOOL DIY-MULTI4-36HP230 36,000 BTU 4-Zone Ductless Heat Pump Condenser

Product Description

The MRCOOL DIY-MULTI4-36HP230 is a reliable outdoor heat pump condenser designed for multi-zone ductless split systems. This unit provides both heating and cooling for four separate zones, making it ideal for residential and light commercial applications.

• Heating and cooling capacity of 36,000 BTU.
• Supports up to four zones for customized climate control.
• DIY installation with Quick Connect line sets.

Product Highlights

This unit utilizes a DC inverter and R-410A refrigerant, providing energy efficiency. The condenser features a Gold Fin coating that resists corrosion. It operates on 208-230 volts and can connect to Wi-Fi for easy app control.

Product Information

Standard Information

• Model: DIY-MULTI4-36HP230
• Country of Origin: Not specified

Technical Specifications

• Cooling Capacity: 36,000 BTU
• Heating Capacity: 36,000 BTU/h
• SEER: 21.5
• EER: 10.5
• HSPF: 11
• Input Voltage: 208V-230V
• Number of Zones: 4
• Decibel Rating: 65 dBA
• Product Dimensions: 37.24 inches wide, 31.89 inches tall, and 16.14 inches deep
• Product Weight: 170.42 lbs
• Refrigerant Type: R-410A
• Max Lineset Length: 221.5 ft
• Warranty: 5-year Parts/7-year Compressor
• Wi-Fi Compatibility: Yes
• App Compatibility: Yes
