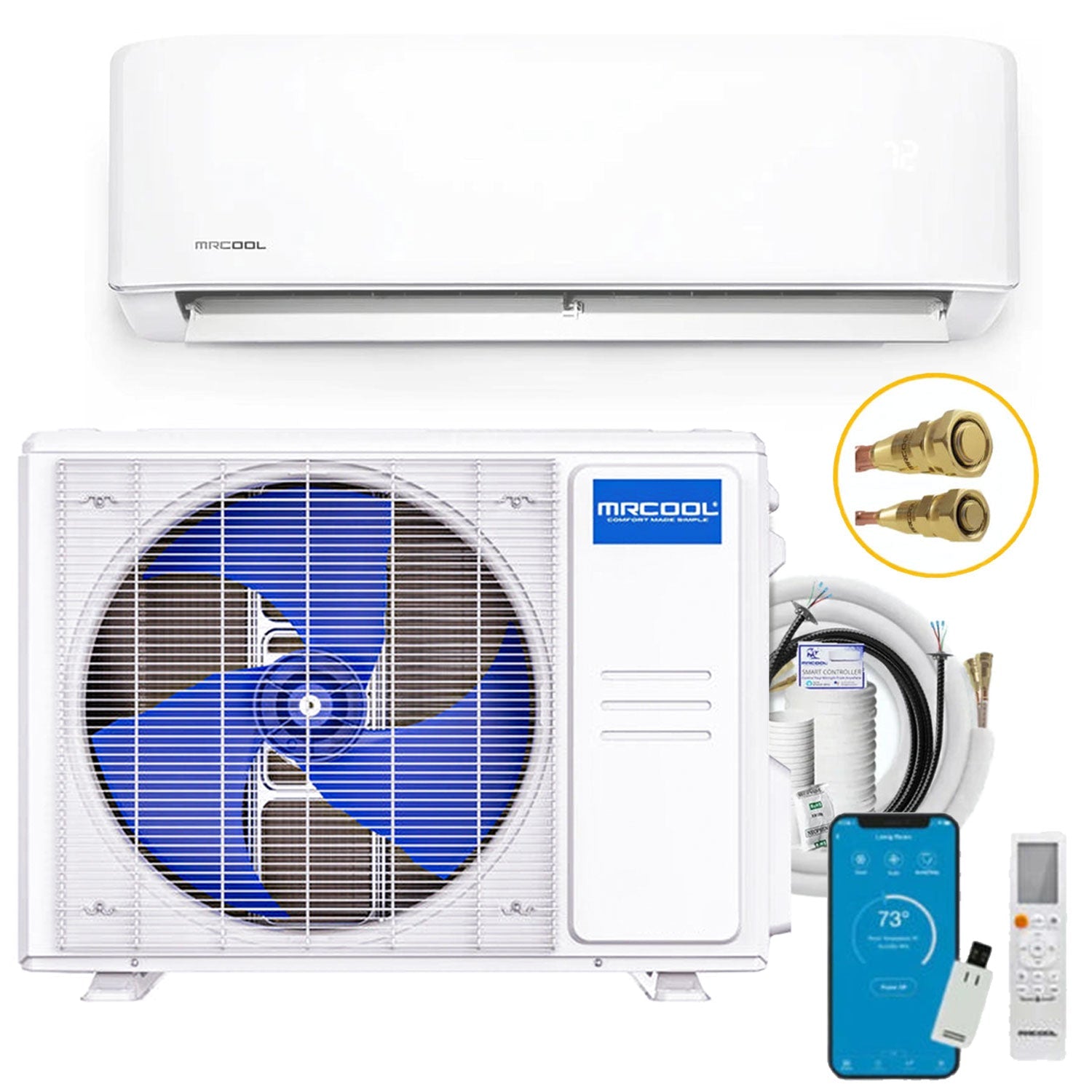

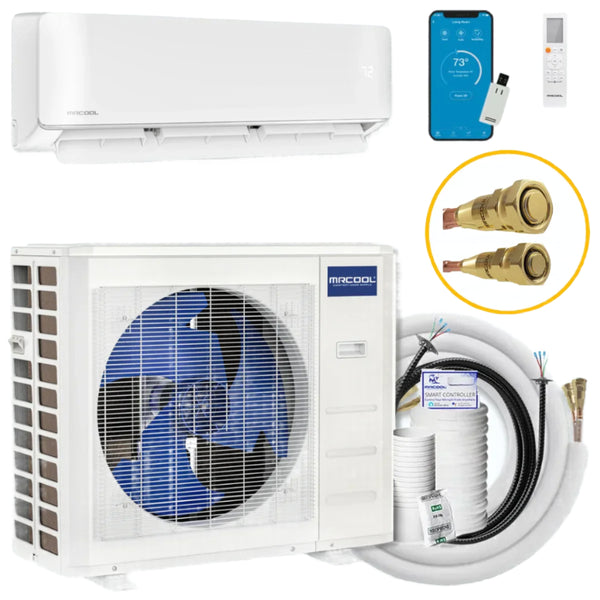

MRCOOL DIY 5th Gen EasyPro 24000 BTU Ductless Mini Split Heat Pump and Air Conditioner 230V R454B Easy Install Includes 16 Ft Line Set WiFi Enabled

No HVAC license or vacuum pump required - true DIY install. Includes pre-charged 16 ft QuickConnect line set and durable DIYPRO cable.

The MRCOOL DIY 5th Generation EasyPro 24,000 BTU Mini Split offers dependable, energy-efficient heating and cooling for rooms up to 1,050 sq. ft. Designed for fast and simple installation, this system includes a 16 ft QuickConnect line set pre-charged with R-454B refrigerant and a weather-resistant DIYPRO cable—no vacuuming or special tools needed.

With a SEER2 rating of 18.9 and HSPF2-4 of 8.7, this ductless mini split delivers high-performance climate control with low energy consumption. Operate the system with the SmartHVAC app, included remote, or voice control via Amazon Alexa or Google Assistant. Smart features like Follow Me and Dry Mode ensure precise temperature control and enhanced air quality.

The system’s Gold Fin condenser resists corrosion in harsh environments, and Active Clean Technology keeps indoor air fresh. This Intertek-listed unit (5031495) is built for long-term durability and is backed by MRCOOL’s Limited Lifetime Warranty, 7-Year Compressor Warranty, and 5-Year Parts Warranty.

?

Product Highlights
• DIY installation - no tools, HVAC license, or vacuuming required
• Includes 16 ft pre-charged QuickConnect line set and DIYPRO cable
• 18.9 SEER2 and 8.7 HSPF2-4 energy efficiency ratings
• Covers up to 1,050 sq. ft.
• WiFi enabled with app, Alexa, and Google Assistant support
• Gold Fin condenser for long-term corrosion protection
• Smart features: Follow Me, Dry Mode, Quiet Mode, Auto Cool
• Quiet indoor performance as low as 21.5 dB
• Industry-leading warranty: Lifetime (with registration), 7-Year Compressor, 5-Year Parts

?

Specifications
• BTU Capacity: 24,000
• Voltage: 208-230V
• SEER2: 18.9
• EER2: 9.7
• HSPF2-4: 8.7
• HSPF2-5: 6.9
• Coverage Area: Up to 1,050 sq. ft.
• Installation: DIY with 16 ft QuickConnect line set (no vacuuming needed)
• Refrigerant: R-454B (50.44 oz pre-charged)
• Line Set Length: 16 ft included (Max 164 ft)
• Wi-Fi Enabled: Yes
• Control Options: SmartHVAC App, Remote, Alexa, Google Assistant
• Indoor Noise Level: 21.5-51.5 dB
• Outdoor Noise Level: 61 dB
• Indoor Dimensions (WxDxH): 42.6 x 9.21 x 13.27 in
• Outdoor Dimensions (WxDxH): 35.04 x 13.46 x 26.5 in
• Piping: 3/8 in (liquid) x 5/8 in (suction)
• Electrical: Max Breaker 20A, Min Circuit Ampacity 19A
• Certifications: UL, CSA, ETL, AHRI, Intertek-listed (5031495)
• Warranty: 7-Year Compressor, 5-Year Parts, Limited Lifetime with Care Program
