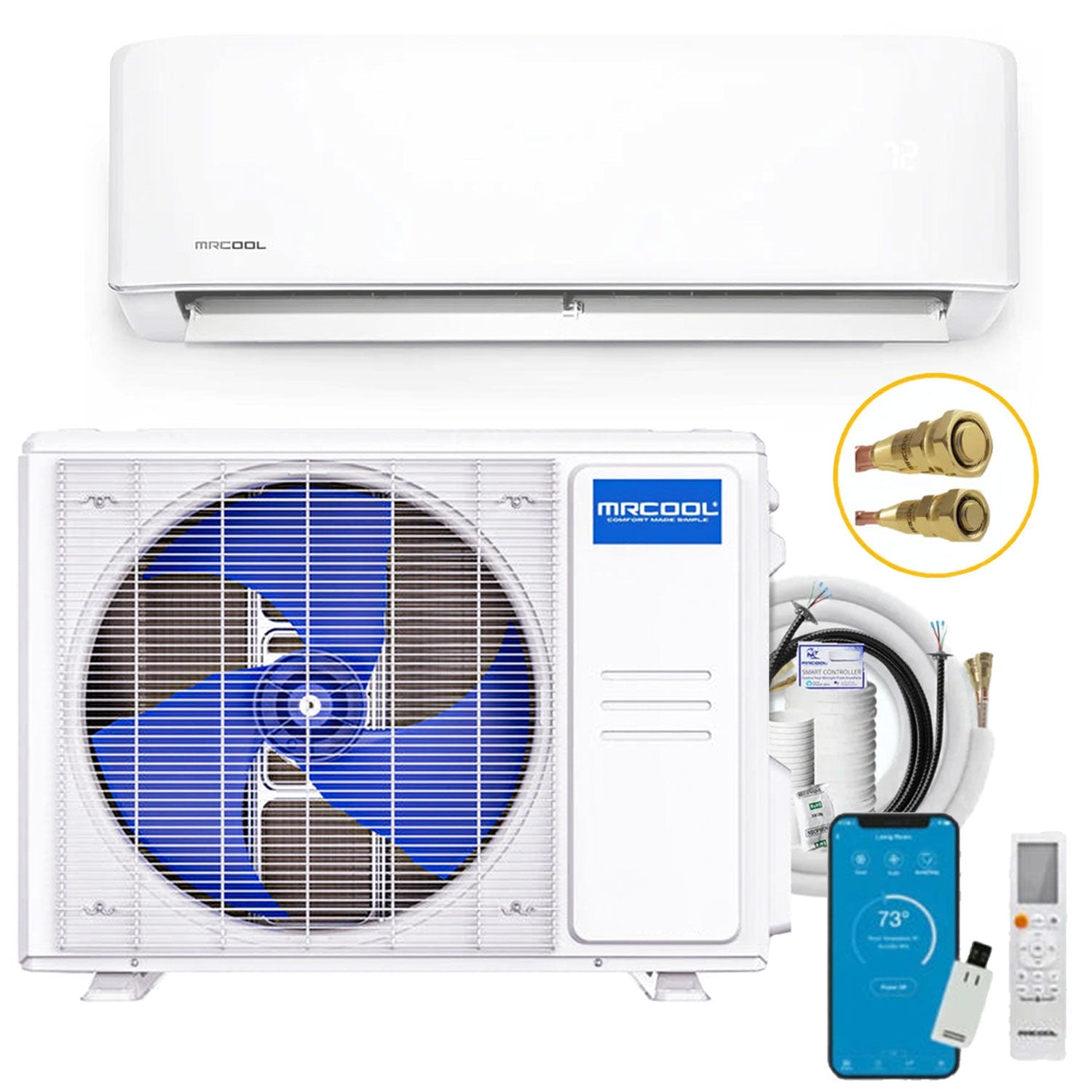

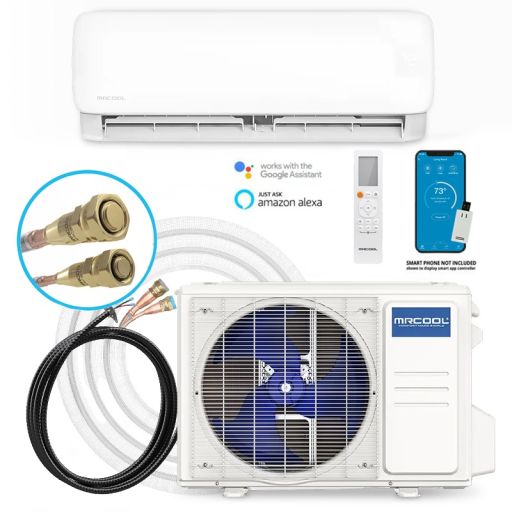

MRCOOL DIY 5th Gen EasyPro 12000 BTU Ductless Mini Split Heat Pump and Air Conditioner 115V R454B Easy Install Includes 16 Ft Line Set WiFi Enabled

No HVAC license or vacuum pump required - true DIY install. Includes pre-charged 16 ft QuickConnect line set and durable DIYPRO cable.

The MRCOOL DIY 5th Generation EasyPro 12,000 BTU Mini Split provides efficient year-round heating and cooling for rooms up to 550 sq. ft. With no special tools or professional installation needed, this system comes with a 16 ft QuickConnect line set pre-charged with R-454B refrigerant and a rugged DIYPRO cable for added protection and durability.

Engineered for smart performance and quiet operation, the unit delivers 19.5 SEER2 and 9.3 HSPF2-4 efficiency. Control your comfort through the MRCOOL SmartHVAC app, remote control, or with voice commands via Amazon Alexa and Google Assistant. Built-in features like Follow Me and Dry Mode enhance climate control while maintaining healthy air quality.

A Gold Fin condenser protects against corrosion in coastal environments. This system meets AHRI, NEEP ccASHP, and CEE Tier 1 standards and is Intertek-listed (5031495). Backed by MRCOOL’s Limited Lifetime Warranty, a 7-Year Compressor Warranty, and a 5-Year Parts Warranty.

?

Product Highlights
• Simple DIY installation - no vacuuming or licensed technician needed
• Includes 16 ft pre-charged QuickConnect line set and DIYPRO cable
• 19.5 SEER2 and 9.3 HSPF2-4 for efficient, reliable performance
• Covers areas up to 550 sq. ft.
• Smart control via app, Alexa, Google Assistant, and remote
• Quiet indoor operation as low as 17.5 dB
• Corrosion-resistant Gold Fin condenser for coastal durability
• Smart features include Follow Me, Dry Mode, Quiet Mode
• Industry-leading warranty: Lifetime (with registration), 7-Year Compressor, 5-Year Parts

?

Specifications
• BTU Capacity: 12,000
• Voltage: 115V
• SEER2: 19.5
• EER2: 9
• HSPF2-4: 9.3
• HSPF2-5: 7.0
• Coverage Area: Up to 550 sq. ft.
• Installation: DIY - no tools or vacuuming needed
• Refrigerant: R-454B (21.52 oz pre-charged)
• Line Set Length: 16 ft included (Max 82 ft)
• Wi-Fi Enabled: Yes
• Control: SmartHVAC App, Remote, Alexa, Google Assistant
• Indoor Noise: as low as 17.5 dB
• Outdoor Noise: 54.0 dB
• Indoor Dimensions (WxDxH): 31.57 x 7.87 x 11.61 in
• Outdoor Dimensions (WxDxH): 28.35 x 10.63 x 19.49 in
• Piping: 1/4 in (liquid) x 3/8 in (gas)
• Electrical: Max Breaker 20A, Min Circuit Ampacity 19.5A
• Certifications: UL, CSA, ETL, AHRI, Intertek (5031495)
• Warranty: 7-Year Compressor, 5-Year Parts, Limited Lifetime with Care Program
