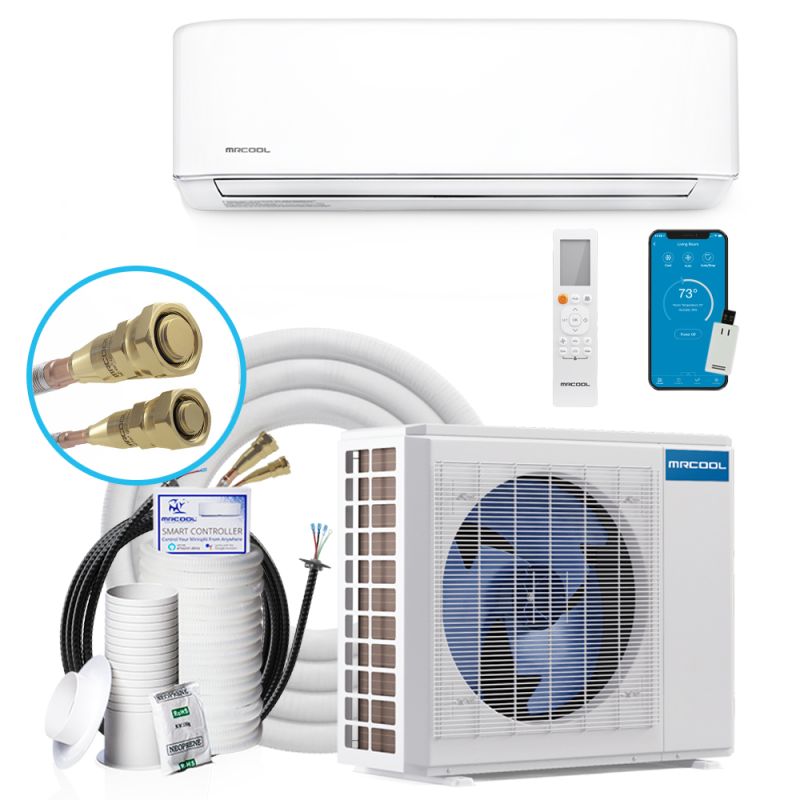

Mrcool DIY-36-HP-WMAH-230C25 DIY 4th Generation 36K BTU HEA

Product Description

The MRCOOL DIY-36-HP-WMAH-230C25 is a DIY 4th Generation 36K BTU HEA. Designed for quick and easy setup, this unit can be installed virtually anywhere without specialized tools. It efficiently heats and cools a single 1500 Sq. Ft. room. The SmartHVAC app is compatible with Amazon Alexa and Google Assistant, allowing control from Apple or Android devices.

• SmartHVAC app with WiFi control, compatible with Amazon Alexa and Google Assistant.
• Easy DIY installation with pre-charged R-410A 25 ft quick connect line; no special tools required.
• Variable-speed DC inverter compressor technology for energy efficiency.

Product Highlights

The MRCOOL DIY series offers efficient heating and cooling with smart features and easy installation, ideal for residential and commercial applications.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: DIY-36-HP-WMAH-230C25

Technical Specifications

• MPN: DIY-36-HP-WMAH-230C25
• Encompass SKU: MRCDIY-36-HP-WMAH-230C25
• Brand: MRCOOL
• SKU: DIY-36-HP-C-230C25 / DIY-36-HP-WMAH-230C25-2
• Refrigerant Charge: 119.9
• AHRI Certificate Number: 208552793
• Product Features: Quick Connect, WiFi
• Cooling BTU: 36,000 BTU
• Heating BTU: 36,000 BTU
• Decibel Level (dBA): 52
• Energy Star: No
• Refrigerant: R410A
• SEER2 (Efficiency): 18
• EER: 8.7
• Liquid Line: 3/8"
• Suction Line: 5/8"
• Electrical: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 35 Amps
• Min. Breaker Size: 28 Amps
• BTU/Tonnage: 36,000 BTU/3 Ton
• Mini Split Type: Wall Mounted
• Zone Compatibility: Single Zone
• Height: Indoor Unit: 14.25" | Outdoor Unit: 31.89"
• Width: Indoor Unit: 49.57" | Outdoor Unit: 37.24"
• Depth: Indoor Unit: 11.10" | Outdoor Unit:16.14"
• Additional Info: Indoor Unit Weight: 41.01 lbs | Outdoor Unit Weight: 150.35 lbs
• Unit Type: Wall-mounted
• Product Line: 4th Generation DIY
• Model: DIY-36-HP-WMAH-230C25
• Operating Mode: Cooling & Heating
• Unit Capacity: 36,000 BTU
• Coverage Area: 1500 Sq Ft.
• Cooling Capacity: 36,000 BTU
• Heating Capacity: 36,000 BTU
• SEER: 18.0
• Room Cooling/Heating Capacity: up to 1500 sq ft
• Modes: Auto, Cool, Dry, Heat, Fan and Sleep
• Noise Level: 34 - 52 dB(A)
• Max Line-Set Length: 73.8 ft
• Max Height Separation: 32.8
