Mrcool DIY-24-HP-WMAH-230C25 Diy 4th Generation 24k Btu Hea

Product Description

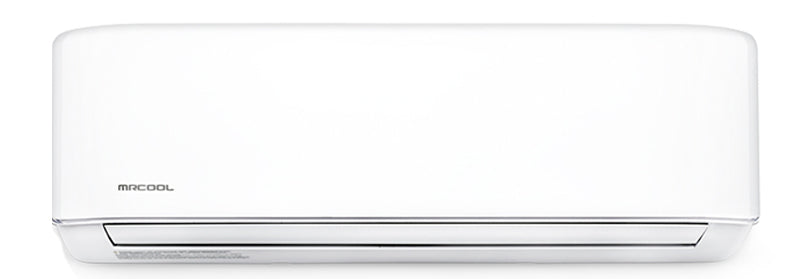

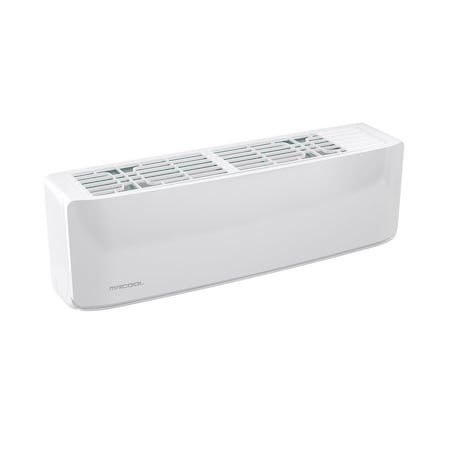

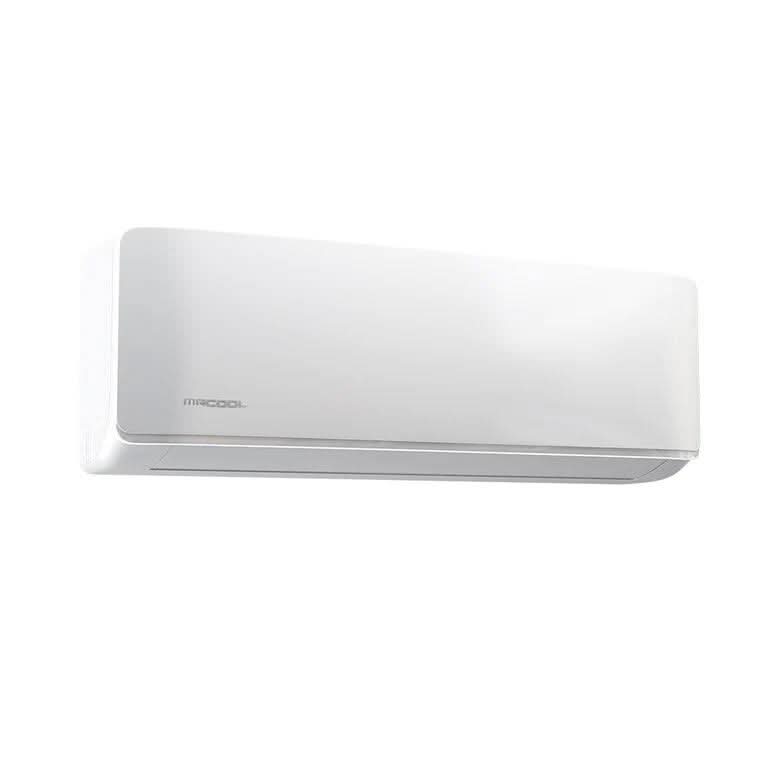

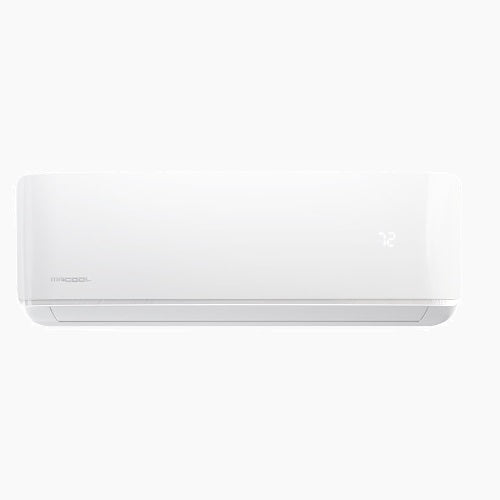

The MRCOOL DIY-24-HP-WMAH-230C25 Diy 4th Generation 24k BTU Hea is designed for DIY installation and provides efficient cooling and heating. This wall mounted air handler operates on 230V power and is part of the MrCool DIY ductless mini-split system's 4th generation, offering enhanced features and performance for spaces up to 1000 sq ft.

• 24K BTU Heat Pump
• Wall Mount Air Handler
• 230 volt

Product Highlights

Part of the 4th generation of MrCool DIY products, offering enhanced features and performance. Designed for easy installation and provides efficient cooling and heating.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: DIY-24-HP-WMAH-230C25
• Country of Origin: China

Technical Specifications

• MPN: DIY-24-HP-WMAH-230C25
• Brand: MRCOOL
• UPC: 810000000000
• Hz: 60 Hz
• PHASE: 1.0
• Voltage: 208-230 V
• Includes: Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements , WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
• Width (In.): 42.52 in
• Height (In.): 13.19 in
• Model / MPN: DIY-24-HP-WMAH-230C25
• Product Type: AIR_CONDITIONER
• Indoor Unit Type: Wall Mount
• Cooling BTUs: 23000
• Includes Heat Pump: Yes
• Heat Pump BTUs: 24000
• Fan Speeds: 3
• Min. Indoor Noise Level (dBA): 33
• Indoor Noise Level (dBA): 33 / 43.5 / 48.5 (L / M / H)
• Control Type: Hand Held Remote
• Connectivity: Module Included
• Wired Thermostat Optional: Yes
• Line Set Liquid Line: 3/8"
• Line Set Suction Line: 5/8"
• Depth (in.): 8.9
• Cooling: 23,000 BTU
• Heating: 25,000 BTU
• Max Coverage Area: Up to 1000 sqft
• SEER: 20.5
• EER: 12.5
• HSPF: HSPF4/HSPF5 : 10.5/9
• Zone Capacity: 1
• Min Circuit Ampacity: 22 A
• Refrigerant Type: R410A
• Refrigerant Volume: 81.13 oz
• Decibel Rating: 48.5/43.5/33
• Oscillation: 4-W
• Inverter: Yes
• Min Ambient Cool: -13F - 122F
• Min Ambient Heat: -13F - 75F
• Indoor Unit: DIY-24-HP-WMAH-230C25
• Line Set Length: 25ft
• Max Lineset Length: 98.42 ft
• Electrical Phase: 1 Ph
• Heating Capacity: 24000 BTU/H
• Maximum Voltage: 208V-230V
• Power: 24000 BTU/H
• Refrigerant Pipe Connection Method: Quick-Connect
• Room Size: 1000 Sq Ft
• Warranty: 5 Yr
• Product Dimensions: 42.52-in X 8.90-in X 13.19-in
• Configuration: Wall Mounted
• Product Length (in): 8.9
• Air Flow Direction: Horizontal
• Blower Motor: Variable Speed
• Cooling Capacity: 2 Ton
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 15 amps
• Refrigerant: R-410a
• Series: DIY
• Suction Line Size: 5/8 inch
• System Application Type: Ductless Split Systems
• Encompass SKU: MRCDIY-24-HP-WMAH-230C25
