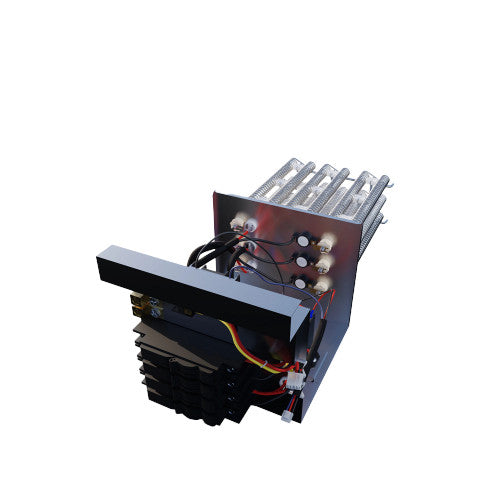

MRCOOL CENTRALHK20 20kW Electric Heat Kit

Product Description

The MRCOOL CENTRALHK20 is a twenty kilowatt electric heat kit. It is designed for supplemental heating in a variety of settings. This unit is compatible with MRCOOL central ducted air handlers that support thirty-six k, forty-eight k, and sixty k BTU capacities. The kit features heat elements made from nickel chromium for durability and efficiency.

• Compatible with MRCOOL Central Ducted Air Handlers (36k, 48k, 60k BTU)
• Includes factory-installed circuit breaker
• Equipped with sequencers for temperature control

Product Highlights

This heat kit ensures reliable heating with professional installation recommended to achieve optimal performance.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: CENTRALHK20

Technical Specifications

• Voltage: 208/230 V
• Maximum Fuse Breaker: 60A
• Minimum Circuit Ampacity: 46A
• Auxiliary Heater Size: 20 kW
• Net Depth: 10.16 inches
• Net Height: 8.03 inches
• Net Width: 21.06 inches
• Net Weight: 10.1 lbs
• Gross Depth: 14.37 inches
• Gross Height: 10.24 inches
• Gross Width: 24.02 inches
• Gross Weight: 15.7 lbs
• Electrical Phase: 1-Phase
• Heat Strip Size: 20 kW
• Primary Heating Capacity: 65,001 - 70,000 BTU
• Series: Central Ducted
• System Application Type: Central Split Systems
• Heating Capacity: 68,242 BTU
• Listings: AHRI
