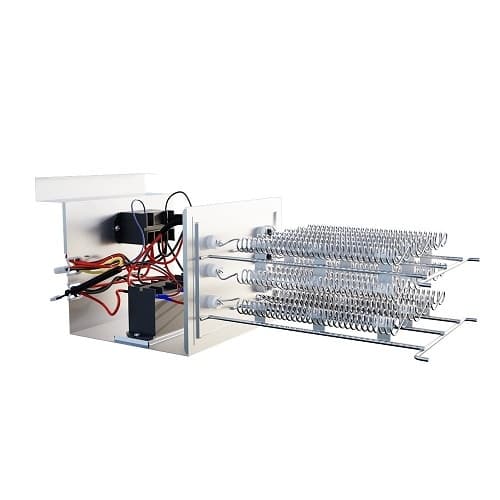

MRCOOL CENTRALHK10 Electric Heat Kit 10kW for Central Ducted Air Handler

Product Description

The MRCOOL CENTRALHK10 is a 10kW electric heat kit suitable for MRCOOL central ducted air handlers. This kit offers reliable auxiliary heating, essential for homes in colder climates. It is designed to work seamlessly with air handlers that have BTU capacities ranging from eighteen thousand to sixty thousand. The kit includes a factory-installed circuit breaker, ensuring safety during operation. It also features nickel chromium heat elements and sequencers to maintain optimal temperature control.

• Provides auxiliary heating for compatible MRCOOL Central Ducted Air Handlers.
• Features a factory-installed circuit breaker for enhanced safety.
• Includes nickel chromium heat elements and sequencers for precise temperature regulation.

Product Highlights

This electric heat kit is a vital addition to central ducted air systems, delivering necessary warmth during winter months.

Product Information

Standard Information

• Model: CENTRALHK10
• Electrical Phase: 1-Phase

Technical Specifications

• Heat Strip Size: 10 kW
• Voltage: 208/230 V
• Primary Heating Capacity: 30,001 - 35,000 BTU
• Max Overcurrent Protection: 40 amps
• Min Circuit Ampacity: 46/53
• Product Height: 8.03 inches
• Product Length: 10.16 inches
• Product Width: 21.06 inches
• Net Weight: 6.8 lbs
• Gross Weight: 12.6 lbs
• System Application Type: Central Split Systems
• Series: Central Ducted
