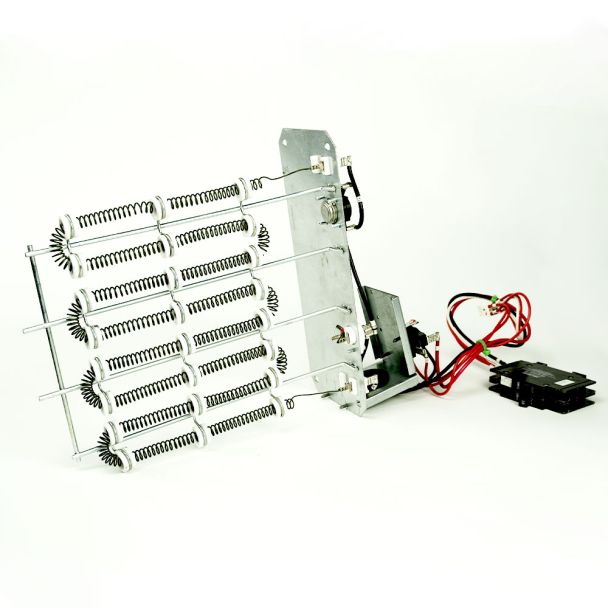

MRCOOL CENTRALHK08 Electric Heat Kit for Central Ducted Air Handler

Product Description

The MRCOOL CENTRALHK08 electric heat kit is designed for use with MRCOOL central ducted air handlers. It provides supplemental heat for residential structures. Key features include nickel chromium heat elements, a factory-installed circuit breaker, and sequencers for temperature control. This product is essential for efficient heating.

• Compatible with MRCOOL central ducted air handlers.
• Provides efficient supplemental heating.
• Includes factory-installed safety components.

Product Highlights

This electric heat kit enhances heating capabilities for central duct systems.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: CENTRALHK08

Technical Specifications

• Heat Strip Size: 7.5 kW
• Auxiliary Heater Sizes: 8 kW
• Electrical Phase: 1-Phase
• Voltage: 208/230 V
• Max Overcurrent Protection: 35 amps
• Max Breaker Size: 40/45
• Min Circuit Ampacity: 37/42
• Min. Breaker Size: 37/42
• Primary Heating Capacity: 25,001 - 30,000 BTU
• Net Depth: 10.16 in
• Net Height: 8.03 in
• Net Width: 21.06 in
• Net Weight: 7.3 lbs
• Gross Depth: 14.37 in
• Gross Height: 10.24 in
• Gross Width: 24.02 in
• Gross Weight: 12.8 lbs
• Series: Central Ducted
• System Application Type: Central Split Systems
