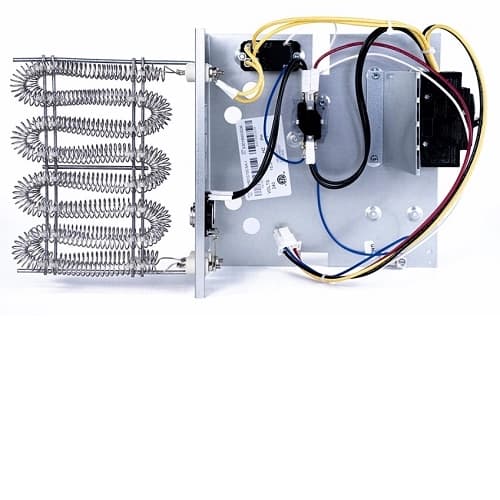

MRCOOL CENTRALHK05 5kW Electric Heat Kit for Central Ducted Air Handler

Product Description

The MRCOOL CENTRALHK05 is a 5kW electric heat kit designed for MRCOOL Central Ducted Air Handlers. It works with air handlers with BTU capacities of twelve thousand, eighteen thousand, twenty-four thousand, thirty thousand, and thirty-six thousand.

• Compatible with various BTU capacities
• Includes factory-installed circuit breaker
• Features nickel chromium heat elements

Product Highlights

This electric heat kit provides reliable heating for applications in mild climates. Its design ensures efficient temperature control while being easy to integrate with existing systems.

Product Information

Standard Information

• Model: CENTRALHK05
• Voltage: 208/230 V

Technical Specifications

• Heat Strip Size: 5 kW
• Electrical Phase: 1-Phase
• Max Fuse Breaker: 25/30
• Max Overcurrent Protection: 30 amps
• Min Circuit Ampacity: 23/27
• Primary Heating Capacity: 15,001 - 20,000 BTU
• Net Depth: 10.16 inches
• Net Height: 8.03 inches
• Net Width: 21.06 inches
• Net Weight: 5.7 lbs
• Gross Depth: 14.37 inches
• Gross Height: 10.24 inches
• Gross Width: 24.02 inches
• Gross Weight: 11.2 lbs
• Series: Central Ducted
• System Application Type: Central Split Systems
• UPC: 840255520720
• Warranty: 10 Year Parts
