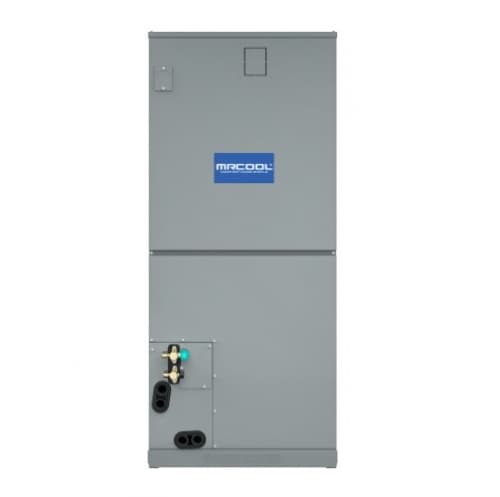

MRCOOL CENTRAL-60-HP-MUAH230A00 MRCOOL Central Ducted Hyper Heat Air Handler 5 Ton

Product Description

The MRCOOL Central Ducted Hyper Heat Air Handler is a versatile unit for heating and cooling in homes and businesses. The model number is CENTRAL-60-HP-MUAH230A00. This five-ton air handler features painted galvanized steel construction and a side-discharge design. It provides easy maintenance with a slide-out blower and removable filters.

• Compatible with MRCOOL No-Vac Quick Connect Line Sets.
• Supports various installation methods: upflow, downflow, and horizontal.
• Includes a wired thermostat and wireless remote with Follow Me function.

Product Highlights

This air handler is efficient and suitable for multiple configurations, enhancing the comfort of indoor spaces.

Product Information

Standard Information

• Manufacturer Part Number: CENTRAL-60-HP-MUAH230A00
• Cooling Capacity: 5 Ton

Technical Specifications

• Heating Capacity: 59,000 Btu
• Refrigerant: R-410A
• Input Voltage: 208/230V 1 Phase 60 Hz
• Max Overcurrent Protection: 15 amps
• Max Fuse Breaker: 15
• Air Flow Direction: Downflow, Horizontal, Upflow
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Heat Strip Compatibility: Up to 20 kW
• Configuration: Floor Mounted
• Width: Indoor 21.02 | Outdoor 37.48
• Depth: Indoor 24.49 | Outdoor 16.34
• Height: Indoor 52.99 | Outdoor 52.48
• Weight: 190.48 lbs
• Blower Motor: Variable Speed
• AHRI Number: 210279124
• HSPF: 9.4
• Cooling BTU: 55000
• Maximum CFM: 4500
• Decibel Level: 51
• SEER2: 15.3
• EER: 8.8
• Warranty: 10 Year Parts
