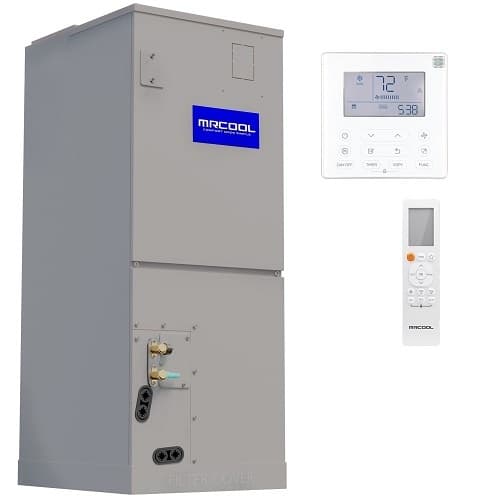

MRCOOL CENTRAL-60-HP-MUAH-230-00 5 Ton Central Ducted Air Handler

Product Description

The MRCOOL Central-60-HP-MUAH-230-00 is a 5-ton central ducted air handler that is suitable for central split systems. This unit supports multiple installation orientations, including upflow, downflow, and horizontal directions. Built from painted galvanized steel, it employs R-410A refrigerant. Key features include a removable filter and a self-diagnostic panel. An optional heating kit can also be added.

• Cool and heat capacity of 57,000 BTU/H and 60,000 BTU/H, respectively.
• Compatible with various line set connections such as Quick Connect, Flared, or Sweat.
• Variable-speed blower motor for efficient airflow management.

Product Highlights

This air handler is engineered for easy installation and maintenance.

Product Information

Standard Information

• Brand: MRCOOL
• Model: CENTRAL-60-HP-MUAH-230-00

Technical Specifications

• Tonnage: 5 Tons
• Cooling Capacity: 57000 BTU/H
• Heating Capacity: 60000 BTU/H
• Refrigerant Type: R-410A
• Air Flow Direction: Downflow, Horizontal, Upflow
• Electrical Phase: 1-Phase
• Input Voltage: 208/230V~60Hz,1ph
• Max Overcurrent Protection: 15 amps
• Noise Level: 52.0/48/43.5 dB(A)
• Air Flow: 805.88/1582.35/1358.82/1135.2 CFM
• Product Height: 52.99 inches
• Product Width: 21.02 inches
• Product Depth: 24.49 inches
• Weight: 190.48 lbs
• Warranty: 10 Year Parts & Labor
