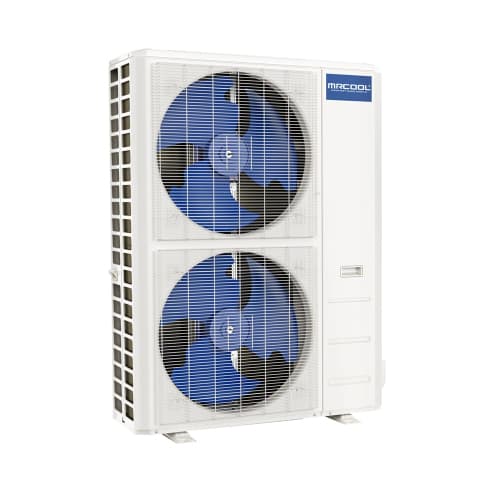

MRCOOL CENTRAL-60-HP-C-230A00 Hyper Heat Central Ducted Heat Pump Condenser

Product Description

The MRCOOL CENTRAL-60-HP-C-230A00 is a central ducted heat pump condenser designed for efficient heating and cooling solutions. This unit has a capacity of 60,000 BTU and utilizes a DC inverter for variable speed operation. The construction of the unit features painted galvanized steel for durability and it is compatible with MRCOOL No-Vac Quick Connect Line Sets, making installation straightforward.

• Cooling capacity of 55,000 to 60,000 BTU.
• SEER2 rating up to 15.3 and HSPF2-4 rating up to 9.4.
• Utilizes R-410A refrigerant.

Product Highlights

This heat pump condenser is designed for use in central split systems, providing reliable heating and cooling performance.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: CENTRAL-60-HP-C-230A00

Technical Specifications

• Cooling Capacity: 60,000 BTU
• Heating Capacity: 59,000 BTU
• Voltage: 208/230
• Refrigerant Type: R-410A
• Electrical Phase: 1-Phase
• HSPF2 Efficiency: 9.4
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Max Overcurrent Protection: 60 amps
• Weight: 272 lbs
• System Application Type: Central Split Systems
• Warranty: 10 Year Parts, 10 Year Compressor
• CFM: 1805.88/1582.35/1358.82/1135.29
• Max Lineset Length: 213.25 ft
• Min Circuit Ampacity: 9
• Product Height: 52.48 inches
• Product Length: 16.34 inches
• Product Width: 37.48 inches
