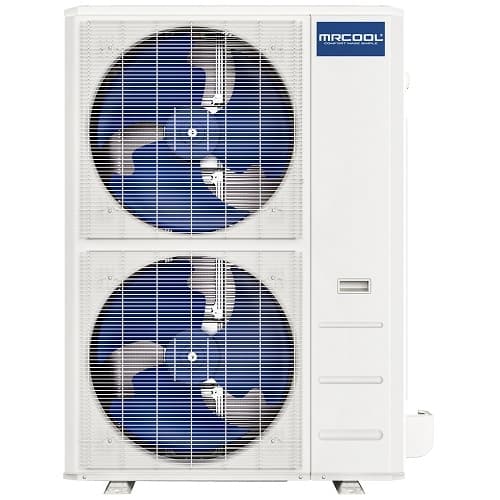

MRCOOL CENTRAL-60-HP-C-230-00 Central Ducted Heat Pump Condenser System

Product Description

The MRCOOL CENTRAL-60-HP-C-230-00 is a central ducted heat pump condenser. This unit is built for home heating and cooling. It has a cooling capacity of five tons and features variable speed technology. The unit is made from painted galvanized steel and has a side-discharge design, offering efficient airflow.

• Five-ton cooling capacity with variable speed compressor
• Compatible with R-410A or R-454B refrigerant
• Self-diagnostics for simplified maintenance

Product Highlights

This unit is suitable for professional installation and works best with a MRCOOL air handler to create a complete heating and cooling system.

Product Information

Standard Information

• Model: CENTRAL-60-HP-C-230-00
• Country of Origin: United States

Technical Specifications

• Cooling Capacity: 5 Ton
• Heating Capacity: 60000 Btu/h
• Refrigerant Type: R-410a
• Voltage: 208/230v~60Hz,1ph
• Max Overcurrent Protection: 60 amps
• Liquid Line Size: 3/8 inch
• Gas Line Size: 7/8 inch
• Suction Line Size: 7/8 inch
• Product Height: 52.48 inches
• Product Width: 37.48 inches
• Product Depth: 16.34 inches
• Weight: 248.46 lbs
• Cooling Efficiency: 18 SEER
• Heat Pump Efficiency (HSPF): 9.2
• Air Flow: 4411.76 CFM
• Compressor Type: Inverter
• AHRI Number: 208960640
• UPC: 840255520072
• Avg Coverage Area: 2500 - 3000 Sq Ft
• Primary Heating Capacity: 45001 - 50000 BTU
• Line Set Connection Type: Quick Connect, Flared, or Sweat
• System Application Type: Central Split Systems
• Warranty: 10 Year Parts, 10 Year Compressor
• SEER2: 15.2
• Tonnage: 5
• WiFi Compatibility: Yes
• Net Dimensions: 16.34 (D) x 38.39 (H) x 38.58 (W)
• Net Weight: 192.9 lbs
• EER2: 8.8
• Noise Level: 60 dB(A)
• Min Circuit Ampacity: 34
