MRCOOL CENTRAL-48-HP-MUAH-230-00 4 Ton Central Ducted Air Handler

Product Description

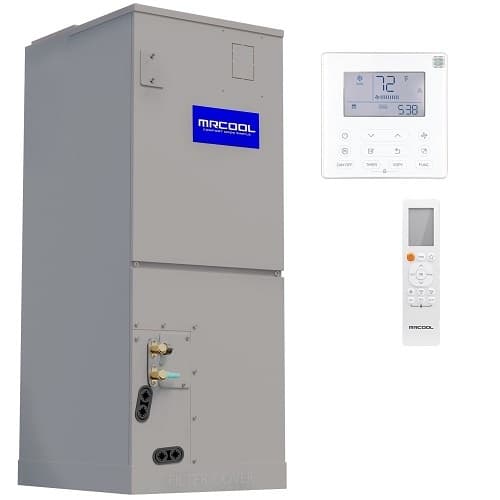

The MRCOOL CENTRAL-48-HP-MUAH-230-00 is a 4-ton central ducted air handler suitable for various installation formats including upflow, downflow, and horizontal orientations. This air handler is designed with durable painted galvanized steel and comes equipped with a removable filter and self-diagnostic features. It is compatible with the No Vac Quick Connect Line Set, which simplifies installation. This model works seamlessly with VersaPro and Hyper Heat second generation condensers. The package includes a wired thermostat and a wireless remote.

• Cooling/Heating Capacity: 48,000 BTU
• Compatible with heat strips up to 20 kW
• Variable speed blower motor

Product Highlights

The MRCOOL air handler effectively handles heating and cooling needs in central split systems. With a powerful cooling capacity and flexibility in installation, it is an ideal choice for residential or commercial settings.

Product Information

Standard Information

• Model: CENTRAL-48-HP-MUAH-230-00
• UPC: 840255520126

Technical Specifications

• AHRI Number: 208960639
• Product Height: 49.02 inches
• Product Length: 21.02 inches
• Product Width: 21.02 inches
• Configuration: Floor Mounted
• Air Flow Direction: Downflow, Horizontal, Upflow
• Blower Motor: Variable Speed
• Cooling Capacity: 4 Ton
• Electrical Phase: 1-Phase
• Heat Strip Compatibility: Up to 20 kW
• Line Set Connection Type: Quick Connect, Flared, Sweat
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 15 amps
• Weight: 156.75 lbs
• Refrigerant: R-410A
• Series: Central Ducted
• Suction Line Size: 3/4 inch
• System Application Type: Central Split Systems
• Input Voltage: 240
• Warranty: 10 Year Parts
• CFM: 1600.99
• Decibel Rating: 53 dBA
• Listings: ETL, AHRI, Energy Star
