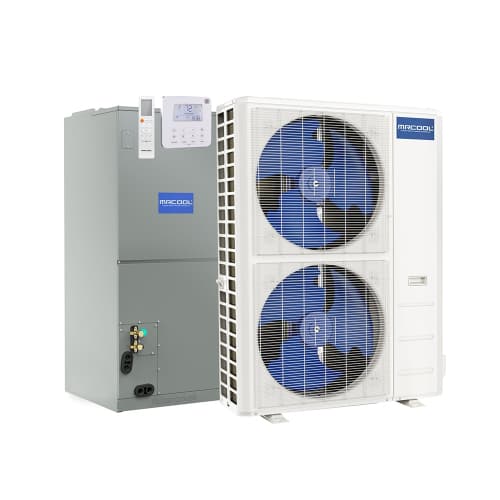

MRCOOL CENTRAL-48-HP-230B00-O 4 Ton Hyper Heat Central Ducted Condenser

Product Description

The MRCOOL CENTRAL-48-HP-230B00-O is a four-ton hyper heat central ducted condenser designed for various climate conditions. This model features DC Inverter technology that allows for variable speed functionality, ensuring efficient operation in multiple settings. It is suitable for use with the MRCOOL VersaPro Central Ducted Air Handler and utilizes R-454B refrigerant.

• Engineered with DC Inverter technology and variable speed functionality.
• Compatible with the MRCOOL VersaPro Central Ducted Air Handler.
• Built with painted galvanized steel for durability.

Product Highlights

This unit is ideal for residential or light commercial applications, providing reliable heating and cooling across a coverage area between one thousand seven hundred fifty to two thousand one hundred square feet.

Product Information

Standard Information

• MPN: CENTRAL-48-HP-230B00-O
• Brand: MRCOOL

Technical Specifications

• SEER2 Rating: 16.5
• Tonnage: 4
• Refrigerant Type: R-454B
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
• Warranty: 10 Year Parts, 10 Year Labor
• Net Depth: 16.34 inches
• Net Height: 38.39 inches
• Net Width: 38.58 inches
• Net Weight: 201.06 lbs
• UPC: 840255586535
• AHRI Number: 216032533
• Bundle Avg Coverage Area: 1,750 - 2,100 Sq Ft
• Bundle Cooling Capacity: 4 Ton
• Electrical Phase: 1-Phase
• Heat Pump Efficiency (HSPF2): 10.5
• Line Set Connection Type: Quick Connect, Flared, or Sweat
• Max Overcurrent Protection: 15 amps
• Primary Heating Capacity: 40,001 - 45,000 BTU
• System Application Type: Central Split Systems
• Input Voltage: 240
• Configuration: Floor Mounted
• Air Flow Direction: Downflow, Horizontal, Upflow
• Blower Motor: High Efficiency
• Heat Strip Compatibility: Up to 15 kW
