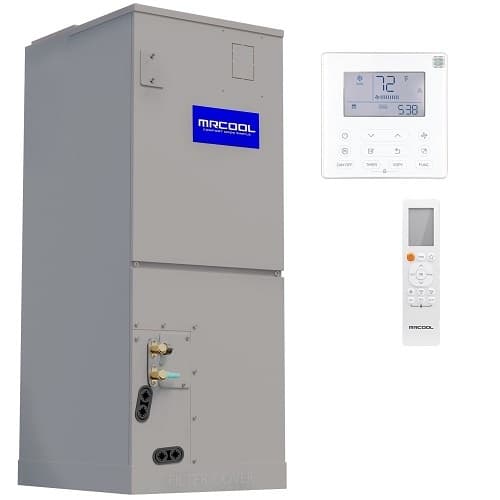

MRCOOL CENTRAL-36-HP-MUAH-230-00 3 Ton Central Ducted Air Handler

Product Description

The MRCOOL Central-36-HP-MUAH-230-00 is a three-ton central ducted air handler designed for spaces up to 1,500 square feet. This unit is constructed with painted galvanized steel. It offers flexible installation options including upflow, downflow, and horizontal configurations. An integrated wired thermostat is included for ease of use, and it works with the MRCOOL SmartHVAC app for convenient control.

• Supports multiple installation orientations.
• Equipped with a self-diagnosing panel.
• Optional heat kit available for enhanced heating.

Product Highlights

This air handler manages both heating and cooling effectively. It is compatible with R-410A or R-454B refrigerants and is designed for high efficiency. The variable speed blower motor ensures optimized airflow, allowing it to adapt to various configurations.

Product Information

Standard Information

• Brand: MRCOOL
• Model: CENTRAL-36-HP-MUAH-230-00

Technical Specifications

• Cooling Capacity: 3 Ton
• Heating Capacity: 36,000 BTU
• Voltage: 115/208-230
• Electrical Phase: 1-Phase
• Air Flow Direction: Downflow, Horizontal, Upflow
• Blower Motor: Variable Speed
• Refrigerant: R-410A
• Dimensions: 21.02 D x 49.02 H x 21.02 W inches
• Weight: 154.1 lbs
• Decibel Rating: 46.8 DBA
• Filter Type: Replaceable
• WIFI Compatibility: Yes
• Energy Star Certified: Yes
