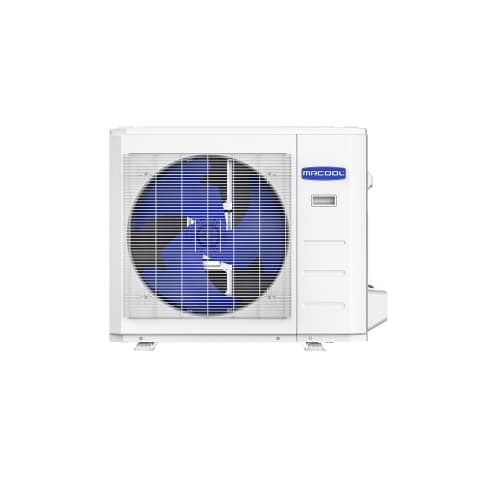

MRCOOL CENTRAL-36-HP-C-230B00-O 3 Ton Hyper Heat Central Ducted Condenser

Product Description

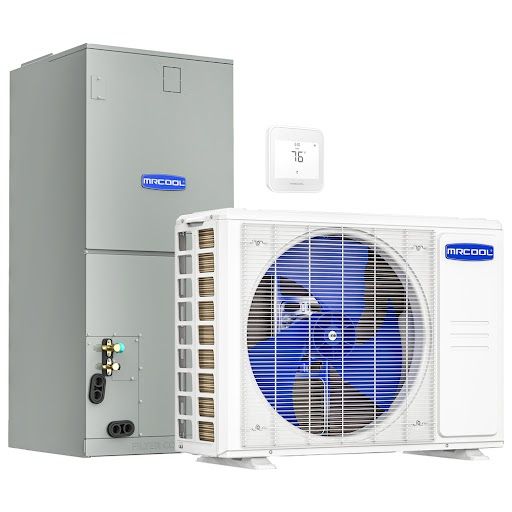

The MRCOOL CENTRAL-36-HP-C-230B00-O is a three-ton hyper heat central ducted condenser suitable for extreme weather. It features a DC inverter and variable speed technology, making it efficient and reliable. This condenser works seamlessly with the MRCOOL VersaPro central ducted air handler, providing efficient heating and cooling solutions.

• Designed for extreme weather performance.
• Uses R-454B refrigerant.
• Compatible with various installation configurations.

Product Highlights

The MRCOOL CENTRAL-36-HP-C-230B00-O is built for resilience in harsh climates, ensuring effective temperature control. This system is perfect for residential and commercial spaces that require reliable HVAC solutions.

Product Information

Standard Information

• Manufacturer: MRCOOL
• Product Code: CENTRAL-36-HP-C-230B00-O

Technical Specifications

• Cooling Capacity: 36000 Btu
• Heating Capacity: 37000 Btu
• EER2: 11.7
• SEER2: 17.4
• HSPF-4: 10.2
• HSPF-5: 8.6
• Refrigerant: R-454B
• Nominal Tons: 3 Ton
• Voltage: 208-230/1/60
• Electrical Phase: 1-Phase
• Max. Fuse Size: 30 A
• Max Overcurrent Protection: 30 amps
• Min. Circuit Amps: 29 A
• Sound Level: 62.5 dBA
• Dimensions: 16.34 in x 38.58 in x 38.39 in
• Weight: 253.23 lb
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
• AHRI Number: 216032532
• System Application Type: Central Split Systems
