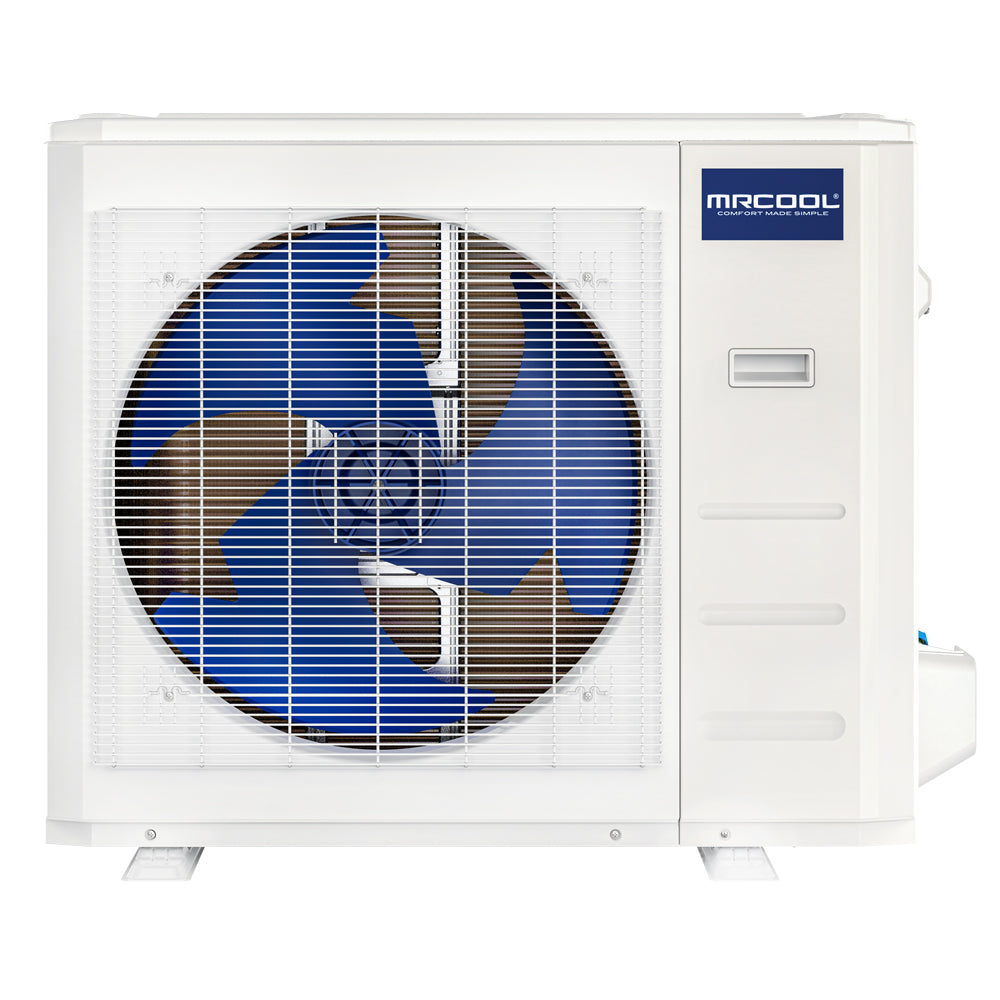

MRCOOL CENTRAL-36-HP-C-230-00 3 Ton Heat Pump Condenser

Product Description

The MRCOOL CENTRAL-36-HP-C-230-00 is a three-ton heat pump condenser suitable for central split systems. It includes variable speed technology and is designed for ease of installation with MrCool No-Vac Quick Connect line sets. This unit is constructed from painted galvanized steel, supporting R-410A or R-454B refrigerants. Its compact, side-discharge design makes it ideal for both new installations and replacements.

• Features variable speed technology for improved efficiency.
• Compatible with MrCool No-Vac Quick Connect line sets.
• Compact design facilitates easy installation.

Product Highlights

Product Information

Standard Information

• Brand: MRCOOL
• Model Number: CENTRAL-36-HP-C-230-00

Technical Specifications

• Cooling Capacity: 3 Ton
• Heating Capacity: 36000 BTU
• Average Coverage Area: 1,500 - 1,800 Sq Ft
• Compressor Type: Inverter
• Electrical Phase: 1-Phase
• Heat Pump Efficiency (HSPF): 9.1
• Line Set Connection Type: Quick Connect, Flared, or Sweat
• Liquid Line Size: 3/8 inch
• Suction Line Size: 3/4 inch
• Max Overcurrent Protection: 40 amps
• Product Height: 31.89 inches
• Product Length: 16.14 inches
• Product Width: 37.24 inches
• Cooling Efficiency: 18 SEER
• Input Voltage: 208/230 V
• Warranty: 10 Year Parts
• Weight: 161.16 lbs
• EER: 10.4
• CFM: 1082.35/970.59/864.71
• Decibel Rating High: 46.8
• Decibel Rating Low: 41.3
• Min Ambient Cool: 5~122F
• Min Ambient Heat: 5~75.2F
