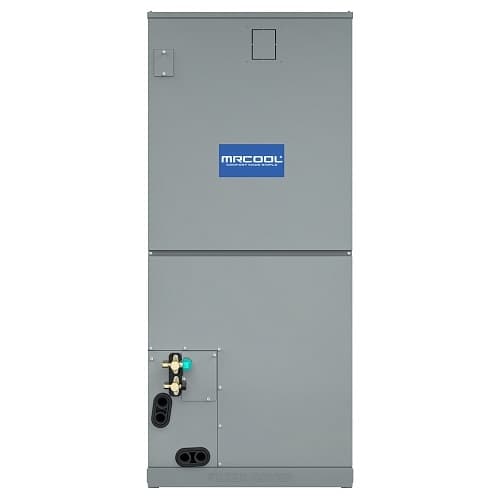

MRCOOL CENTRAL-36-HP-230-00 Heat Pump System

Product Description

The MRCOOL CENTRAL-36-HP-230-00 is a heat pump system optimized for central ducted installations. It provides both heating and cooling efficiently, with a cooling capacity of three tons. This unit operates with R-410A refrigerant and accommodates quick connect, flared, or sweat line set connections. It supports multiple installation types including upflow, downflow, and horizontal configurations.

• Cooling capacity of three tons
• Compatible with multiple line set connection types
• Designed for easy HVAC installation

Product Highlights

This system includes variable speed technology for enhanced performance and efficiency.

Product Information

Standard Information

• Model: CENTRAL-36-HP-C-230-00
• Application Type: Central Split Systems

Technical Specifications

• Cooling Capacity: 3 Ton
• Electrical Phase: 1-Phase
• Line Set Connection Type: Quick Connect, Flared, or Sweat
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 40 amps
• Refrigerant: R-410A
• Voltage: 240
• Warranty: 10 Year Parts
• Product Height: 31.89 inches
• Product Length: 16.14 inches
• Product Width: 37.24 inches
• Weight: 154.1 lbs
• AHRI Number: 208960638
• Heat Pump Efficiency (HSPF): 9.1
• Cooling Efficiency: 18 SEER
