MRCOOL CENTRAL-30-HP-MUAH-230-25 Central Ducted Air Handler

Product Description

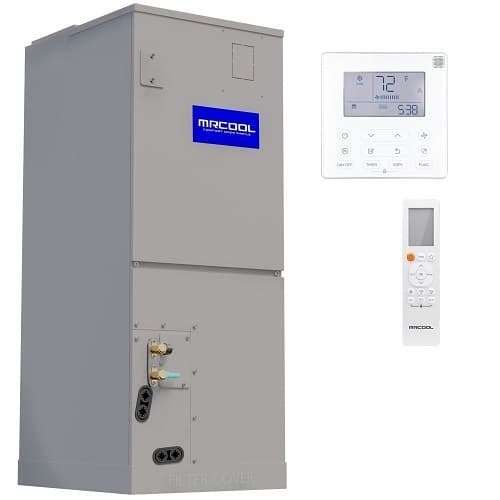

The MRCOOL CENTRAL-30-HP-MUAH-230-25 is a central ducted air handler built for residential heating and cooling. This unit supports installation in various positions, including upflow, downflow, and horizontal. It comes with a wired thermostat for easy temperature control. The air handler operates using R-410A refrigerant and allows for the optional addition of a heating kit to provide extra warmth when needed. It can efficiently manage climate control for areas from one thousand two hundred fifty to one thousand five hundred square feet.

• Supports multi-position installation (upflow, downflow, horizontal).
• Compatible with an optional heating kit.
• Utilizes R-410A refrigerant for effective cooling.

Product Highlights

This air handler is designed to work well in residential spaces, providing reliable climate control while maintaining compatibility with additional heating options.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: CENTRAL-30-HP-MUAH-230-25

Technical Specifications

• Model: MVP-30-HP-MUAH-230-25
• Air Flow Direction: Multi-position
• Cooling Capacity: 2.5 Ton
• Voltage: 208/230 V
• Electrical Phase: 1-Phase
• Decibel Rating: 46.5/43/39.5
• Refrigerant Type: R410A
• Liquid Line Size: 3/8 inch
• Suction Line Size: 5/8 inch
• Auxiliary Heater Sizes: 5kw, 8kw, 10kw, 15kw
• Base Warranty: 10 years parts and labor
• Product Width: 21.02 inches
• Product Height: 49.02 inches
• Product Length: 21.02 inches
• Air Handler Weight: 128.53 lbs
• SEER: 18.5
• EER: 10.3
• HSPF: 9.5/8
• CFM: 894.12/805.88/711.76
• Heating Capacity: 30000
• Cycle: 60 Hz
• Max Overcurrent Protection: 15 amps
• Min Circuit Ampacity: 25
• Refrigerant Volume: 111.11 oz
• Min Ambient Cool: 5~122F
• Min Ambient Heat: 5~75.2F
• Lineset Included: Yes
• Line Set Length: 25ft
• Compressor Motor Type: Rotary
• Condenser Fan Motor RPM: 1150/1050/900/850
• Filter Type: Replaceable
• Auxiliary Heater Included: No
• Auxiliary Heater Available: Yes
• Adjustable Thermostat: Yes
• Fan Only Option: Yes
• Sleep Mode: Yes
• Auto Cool: Yes
• App Compatibility: No
• Remote Control Included: Yes
• AHRI Certified: Yes
• Condenser Depth: 16.14 inches
• Condenser Height: 31.89 inches
• Condenser Width: 37.24 inches
• Condenser Weight: 146.39 lbs
