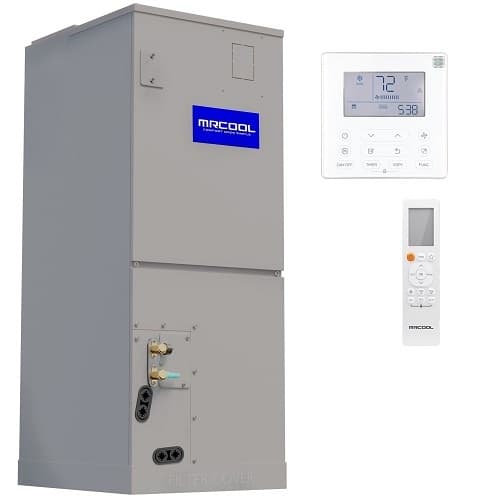

MRCOOL CENTRAL-24-HP-MUAH-230-25 Central Ducted Air Handler

Product Description

The MRCOOL Central Ducted Air Handler is built for heating and cooling in central split systems. Weighing one hundred thirty-two pounds, this two-ton unit offers flexible installation options. It supports upflow, downflow, and horizontal configurations, ensuring versatility in various settings. Features include a wired thermostat for easy temperature management and compatibility with heat kits to enhance heating performance.

• Multi-position installation options
• Designed for 10kW heat strip kits
• Uses R-410A refrigerant

Product Highlights

Product Information

Standard Information

• Model: CENTRAL-24-HP-MUAH-230-25
• MPN: CENTRAL-24-HP-MUAH-230-25

Technical Specifications

• AHRI Number: 211644118
• Cooling Capacity: 2 Ton
• Heating Capacity: 24000 BTU/H
• Input Voltage: 208V-230V
• Max Overcurrent Protection: 15 amps
• Refrigerant: R-410A
• Air Flow Direction: Downflow, Horizontal, Upflow
• Blower Motor: High Efficiency, Variable Speed
• Heat Strip Compatibility: Up to 10 kW
• Line Set Connection Type: Quick Connect, Flared, or Sweat
• Liquid Line Size: 3/8 inch
• Suction Line Size: 5/8 inch
• Warranty: 10 Year Parts
• Noise Level: 43.0/41.5/38.0 dB(A)
• Power Supply: 208/230v~60Hz,1ph
• Air Flow: 817.65/752.94/682.35/611.76 CFM
• SEER: 19.2
• Product Dimensions: 45 inches x 21.02 inches x 17.52 inches
