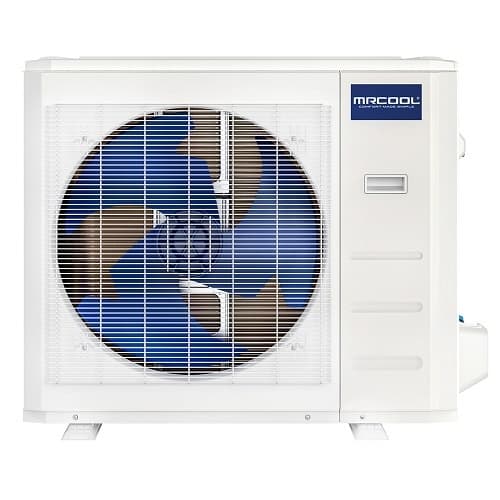

MRCOOL CENTRAL-24-HP-C-230-25 Central Ducted Condenser 24000 BTU/H (Multi-position) Replacement MPN: CENTRAL-24-HP-C-230-25

Product Description

The MRCOOL CENTRAL-24-HP-C-230-25 is a central ducted condenser that offers versatile multi-position installation. This system uses R-410A refrigerant and operates with a 208/230V power supply. It provides efficient cooling and heating, making it suitable for various settings.

• Cooling and Heating Capacity: 24000 BTU/H
• Compact design with side discharge
• Includes No Vac Quick-Connect line sets

Product Highlights

This condenser features a durable painted galvanized steel cabinet and allows for flexible installation options. An optional heating kit is available for added functionality.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: CENTRAL-24-HP-C-230-25

Technical Specifications

• Cooling Capacity: 24000 BTU/H
• Heating Capacity: 24000 BTU/H
• Voltage: 208/230 V
• Electrical Phase: 1-Phase
• Cycle: 60 Hz
• Refrigerant Type: R410A
• SEER: 19.2
• EER: 12.5
• HSPF: 10/8.5
• Max Fuse Breaker: 35 amps
• Min Circuit Ampacity: 22
• Rated Load: 0.6
• Air Flow Direction: Multi-position
• Line Set Included: Yes
• Line Set Length: 25 ft
• Liquid Line Size: 3/8 inch
• Suction Line Size: 5/8 inch
• Compressor Motor Type: Twin-Rotary
• Condenser Depth: 16.14 in
• Condenser Height: 31.89 in
• Condenser Width: 37.24 in
• Condenser Weight: 125.22 lbs
• Air Handler Depth: 17.52 in
• Air Handler Height: 45 in
• Air Handler Width: 21.02 in
• Air Handler Weight: 106.48 lbs
• Total Weight: 143.74 lbs
• Warranty: 10 years parts and labor
• Model: MVP-24-HP-C-230-25
• AHRI Number: 211644118
• Product Height (in): 31.89
• Product Length (in): 16.14
• Product Width (in): 37.24
• Cooling Efficiency (SEER2): 16.7
• Heat Pump Efficiency (HSPF2): 9.1
