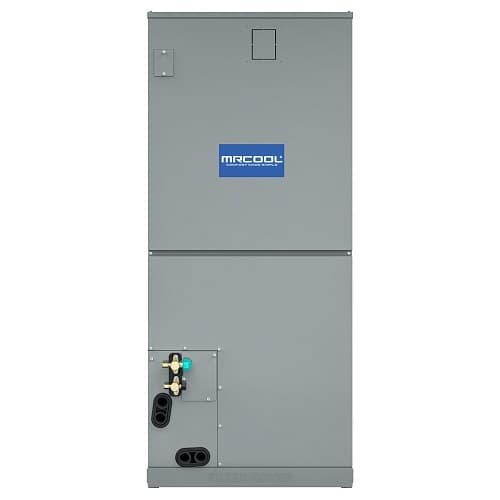

MRCOOL CENTRAL-24-HP-230-25 Central Ducted Air Handler and Condenser

Product Description

The MRCOOL CENTRAL-24-HP-230-25 is a central ducted air handling and condensing system. It is suitable for indoor climate control and utilizes R-410A refrigerant, providing efficient cooling and heating performance.

• Includes wired thermostat for easy temperature control.
• Multi-position installation options available.
• Compatible with MRCOOL No-Vac Quick Connect line sets.

Product Highlights

This unit works effectively for various applications, ensuring comfort across large spaces.

Product Information

Standard Information

• Part Number: CENTRAL-24-HP-230-25
• Application Type: All Purposes

Technical Specifications

• Cooling Capacity: 24000 BTU
• Heating Capacity: 24000 BTU
• Electrical Phase: 1-Phase
• Voltage: 208V-230V
• SEER: 19.2
• Warranty: 10 Year Parts and Labor
• Product Dimensions: 35.04 inches X 26.50 inches X 13.46 inches
• Weight: 132.72 lbs
• Air Flow Direction: Downflow, Horizontal, Upflow
• Configuration: Floor Mounted
