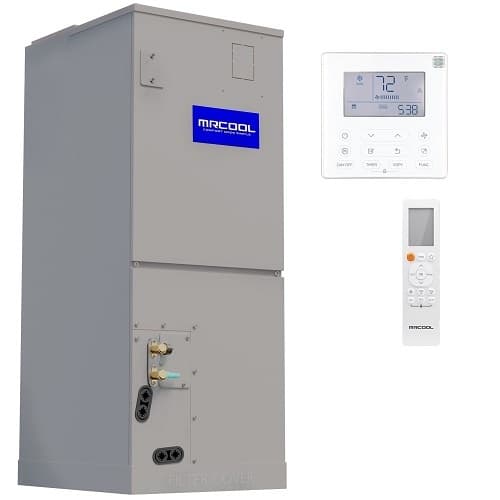

MRCOOL CENTRAL-18-HP-MUAH-230-25 1.5 Ton Central Ducted Air Handler

Product Description

The MRCOOL CENTRAL-18-HP-MUAH-230-25 is a 1.5 ton central ducted air handler suitable for both heating and cooling applications. Designed for flexibility, this unit works with MRCOOL No-Vac Quick-Connect line sets. It includes a variable speed blower motor for efficient air distribution, a removable filter for easy maintenance, and a self-diagnostics panel for monitoring system performance.

• Capacity: 18,000 BTU for both heating and cooling
• Multi-positional installation options: Upflow, Downflow, and Horizontal
• Utilizes environmentally friendly R-410A refrigerant

Product Highlights

This central ducted air handler is perfect for residential applications where efficient temperature control is essential. The unit's design allows for various installation configurations and seamless integration with existing systems.

Product Information

Standard Information

• Brand: MRCOOL
• MPN: CENTRAL-18-HP-MUAH-230-25

Technical Specifications

• Cooling Capacity: 18000 BTU/h
• Heating Capacity: 18000 BTU/h
• SEER: 22
• EER: 12.5
• HSPF-4: 11
• Air Flow: 617.65 / 576.47 / 529.41 / 494.12 CFM
• Indoor Noise Level: 39.5 Hi / 38.5 Mi / 35.5 Lo
• Power Supply: 208 / 230V~60Hz, 1ph
• Input Voltage: 208-230V
• Max Fuse: 15 Amps
• Refrigerant Type: R-410A
• Refrigerant Charge: 56.44 ounces
• Liquid Line Size: 1/4 inch
• Gas Line Size: 1/2 inch
• Product Dimensions: 17.52 inches (Depth) x 21.02 inches (Width) x 45 inches (Height)
• Weight: 131.61 lbs
• Air Flow Direction: Downflow, Horizontal, Upflow
• Blower Motor: Variable Speed
