MRCOOL CENTRAL-18-HP-230-25 Central Ducted System

Product Description

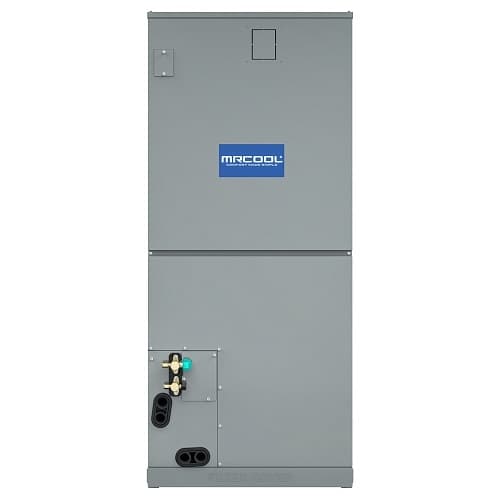

The MRCOOL CENTRAL-18-HP-230-25 is a central ducted system suitable for both heating and cooling applications. This system includes an air handler and a condenser unit. It operates using a DC inverter heat pump and is equipped with a pre-charged line set for easy installation. The air handler supports multiple installation configurations, including upflow, downflow, and horizontal ductwork.

• Pre-charged line set included.
• Multi-position installation support.
• Self-diagnostic features included.

Product Highlights

This system is designed to provide efficient climate control, with easy maintenance options such as a replaceable filter. It is suitable for various applications and can cover an area of seven hundred fifty to nine hundred square feet.

Product Information

Standard Information

• Brand: MRCOOL
• Model: CENTRAL-18-HP-230-25

Technical Specifications

• SEER: 22
• EER: 12.5
• HSPF: 11/9
• Cooling Capacity: 18000 BTU/H
• Heating Capacity: 18000 BTU/H
• Input Voltage: 208/230 V
• Electrical Phase: 1
• Frequency: 60 Hz
• Max Fuse Breaker: 30 amps
• Min Circuit Ampacity: 18
• Refrigerant Type: R410A
• Refrigerant Volume: 56.44 oz
• Air Flow Direction: Multi-position
• Minimum Ambient Temperature (Cooling): -13F~122F
• Minimum Ambient Temperature (Heating): -13~75.2F
• Line Set Length: 25 ft
• Liquid Line Size: 1/4 inch
• Suction Line Size: 1/2 inch
• Compressor Motor Type: Rotary
• Filter Type: Replaceable
• Remote Control Included: Yes
• AHRI Certified: Yes
• Warranty: 10 years parts and labor
• Condenser Dimensions: 13.46 in depth, 26.50 in height, 35.04 in width
• Air Handler Dimensions: 17.52 in depth, 45 in height, 21.02 in width
• Decibel Rating High: 39.5
• Decibel Rating Low: 35.5
• Application Type: All Purposes
• Zone Capacity: 1
• Compressor: Single Stage
• Weight: 200 lbs
