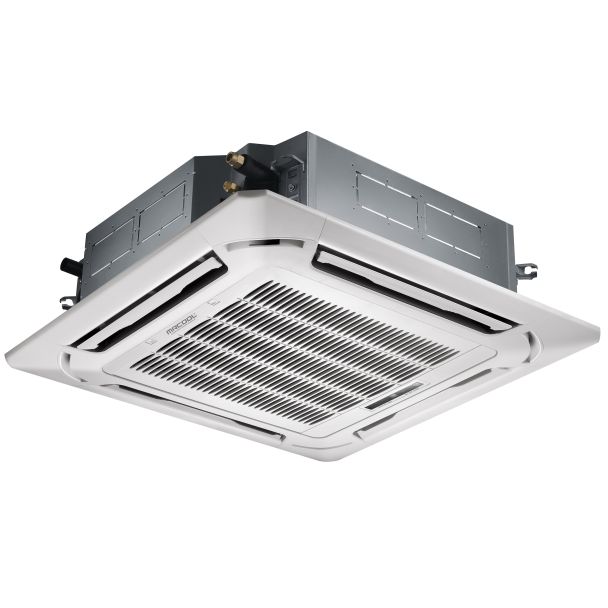

MRCOOL CASSETTE18HP-230 Olympus 18,000 BTU Ductless Mini-Split Ceiling Cassette

Product Description

The MRCOOL Olympus 18,000 BTU Ductless Mini-Split Ceiling Cassette operates efficiently at 230 volts and provides both cooling and heating for spaces up to one thousand five hundred square feet. This model is designed for ceiling installation, maximizing space by keeping walls and floors clear. The system makes use of R-410A refrigerant and features a variable speed blower motor, ensuring reliable temperature control in both residential and commercial applications.

• Cools and heats spaces effectively
• Ceiling-mounted design minimizes space usage
• Variable speed blower for efficient airflow

Product Highlights

The MRCOOL Olympus is suitable for various environments, making it a versatile choice for HVAC systems.

Product Information

Standard Information

• Brand: MRCOOL
• Model: CASSETTE18HP-230-P

Technical Specifications

• Cooling Capacity: 18000 BTU
• Heating Capacity: 18000 BTU
• Tonnage: 1.5 Ton
• Maximum Coverage Area: 1500 sq ft
• Air Flow Direction: Downflow
• Number of Speeds: 4 (Variable)
• Decibel Level (dBA): 46/41.5/39.5
• Refrigerant: R-410A
• Liquid Line Size: 1/4 inch
• Suction Line Size: 1/2 inch
• Input Voltage: 208-230 V
• Electrical Phase: 1-Phase
• Cycle: 60 Hz
• Max Fuse Breaker: 15 A
• Max Overcurrent Protection: 15 amps
• Min Circuit Ampacity: 1.9 A
• Maximum CFM: 562.68/485.58/439.08
• Blower Motor RPM: 730/630/570
• Inverter: Yes
• Net Dimensions (W x D x H): 22.44 in x 22.44 in x 10.24 in
• Net Weight: 35.71 lbs
• Gross Dimensions (W x D x H): 26.06 in x 26.06 in x 12.48 in
• Gross Weight: 46.96 lbs
• Warranty: 5-year Parts/7-year Compressor/1-year Remote
