MRCOOL Advantage 5th Gen 24000 BTU Ductless Mini Split Heat Pump and Air Conditioner 230V R454B Non DIY Install Includes 16 Ft Line Set

Important: This is not a DIY model. Professional HVAC installation is required.

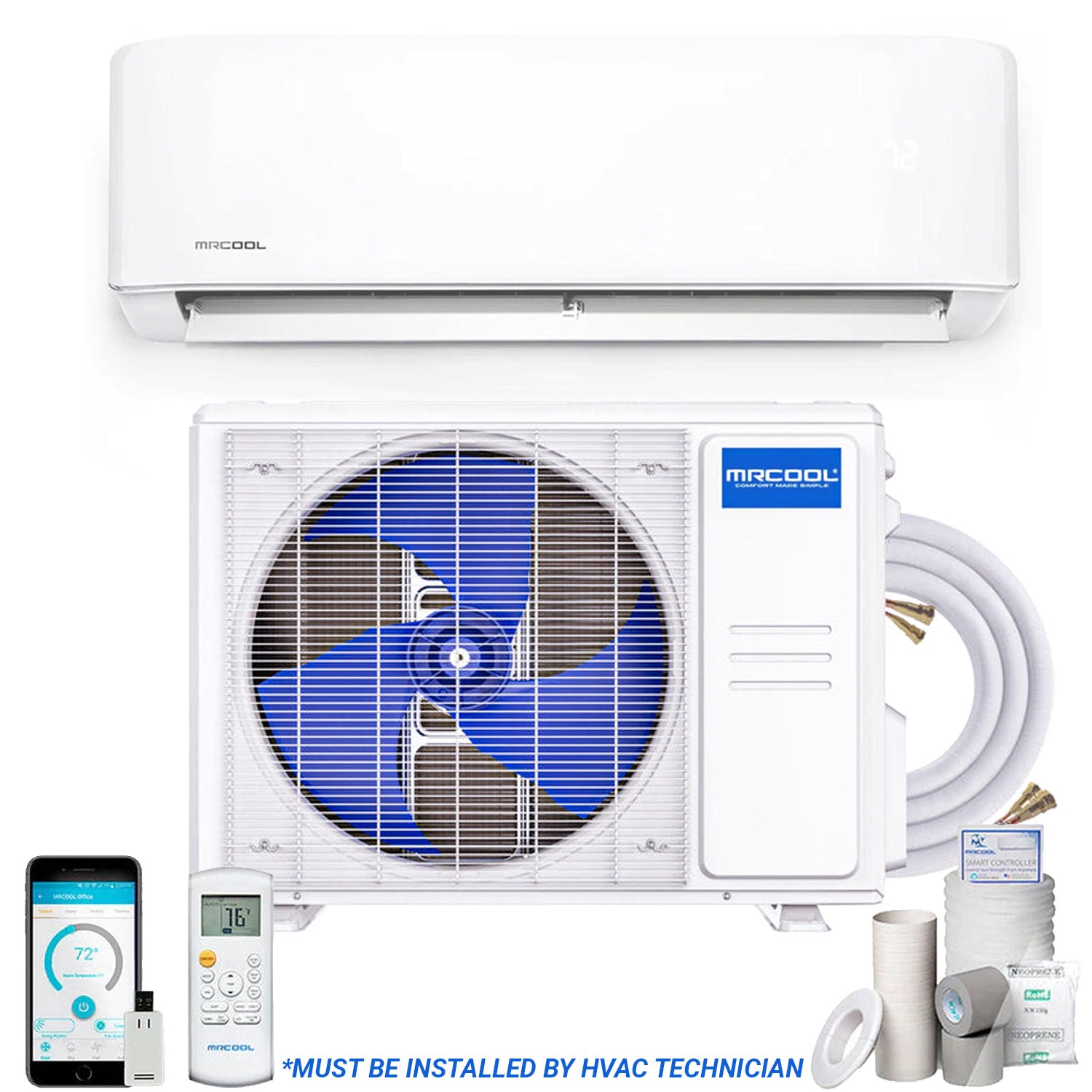

The MRCOOL Advantage 5th Generation 24000 BTU Mini Split offers powerful and efficient climate control for large spaces up to 1,050 sq. ft. This complete system includes a 230V outdoor condenser, quiet indoor air handler, and a 16 ft. pre-charged line set for seamless professional installation.

Powered by R454B refrigerant, the system delivers enhanced energy efficiency while significantly reducing greenhouse gas emissions. With a 80% lower Global Warming Potential than R410A, this refrigerant supports a more sustainable home comfort solution. The unit achieves 18.7 SEER2 and 9.3 HSPF2-4 energy efficiency ratings, making it a reliable, eco-conscious choice for year-round heating and cooling.

Built-in Wi-Fi allows smart control through the MRCOOL SmartHVAC app or voice integration with Amazon Alexa and Google Assistant. Features like Sleep Mode, Auto Restart, and Follow Me temperature sensing make everyday use more convenient and energy-conscious.

Backed by MRCOOL’s robust warranty—2 years on parts, 1 year on the compressor, and 1 year on the remote control—this system also qualifies for a Limited Lifetime Warranty through the MRCOOL Care Program.

Product Highlights
• Heating and cooling in one high-capacity ductless system

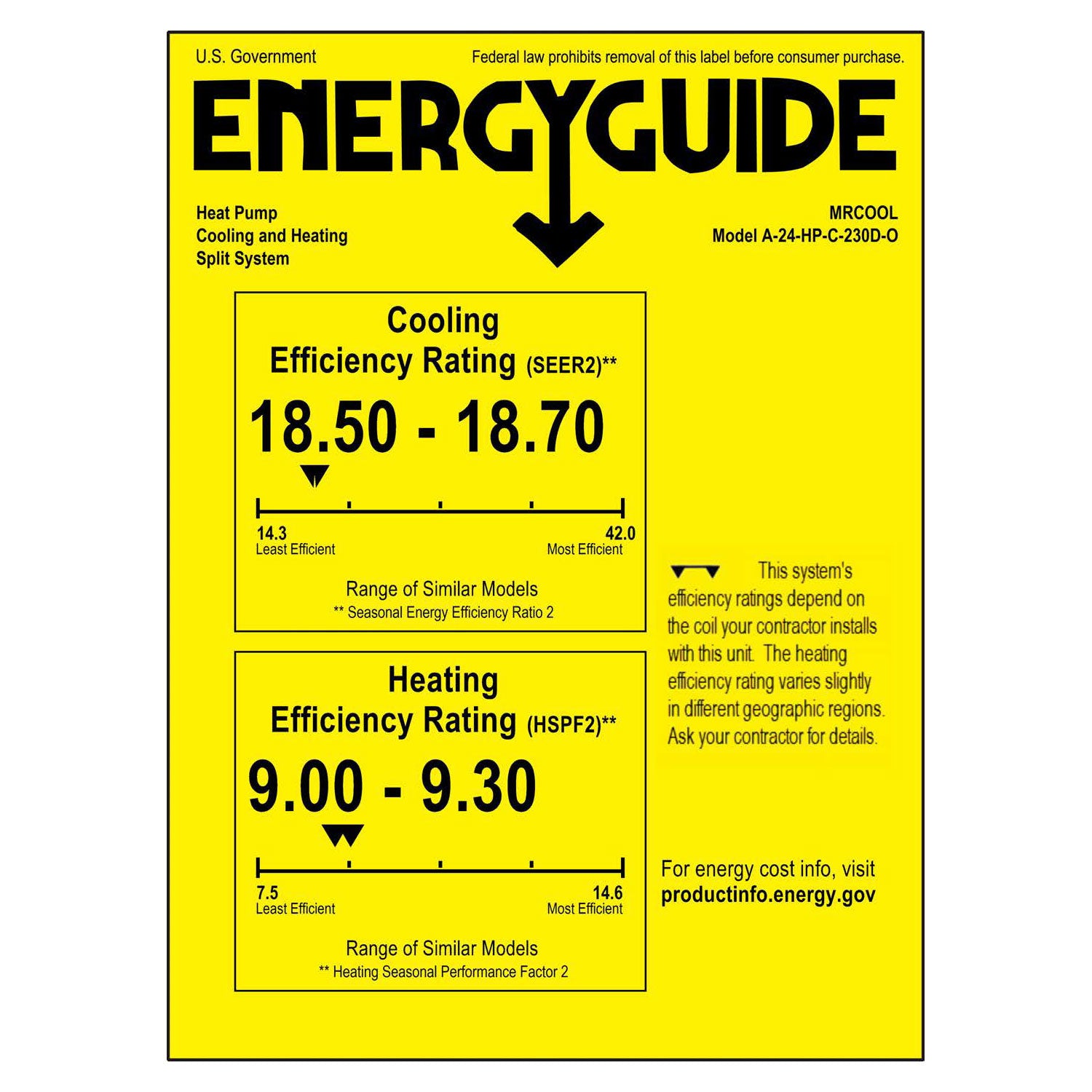

• 18.7 SEER2 and 9.3 HSPF2 energy efficiency ratings
• Designed for rooms up to 1,050 sq. ft.
• R454B refrigerant with lower Global Warming Potential than R410A
• Built-in Wi-Fi for app and voice control
• Quiet operation: indoor noise as low as 21.5 dB
• Gold Fin condenser for corrosion resistance
• Smart features include Sleep Mode, Auto Restart, and Leak Detection
• 16 ft. pre-charged line set included

Specifications
• BTU Capacity: 24000
• Voltage: 230V (208-230V, 60Hz, 1Ph)
• SEER2 Rating: 18.7
• HSPF2 Rating: 9.3
• Refrigerant: R-454B
• Wi-Fi Enabled: Yes
• Installation Type: Non-DIY (Professional required)
• Coverage Area: Up to 1,050 sq. ft.
• Line Set Included: 16 ft. pre-charged

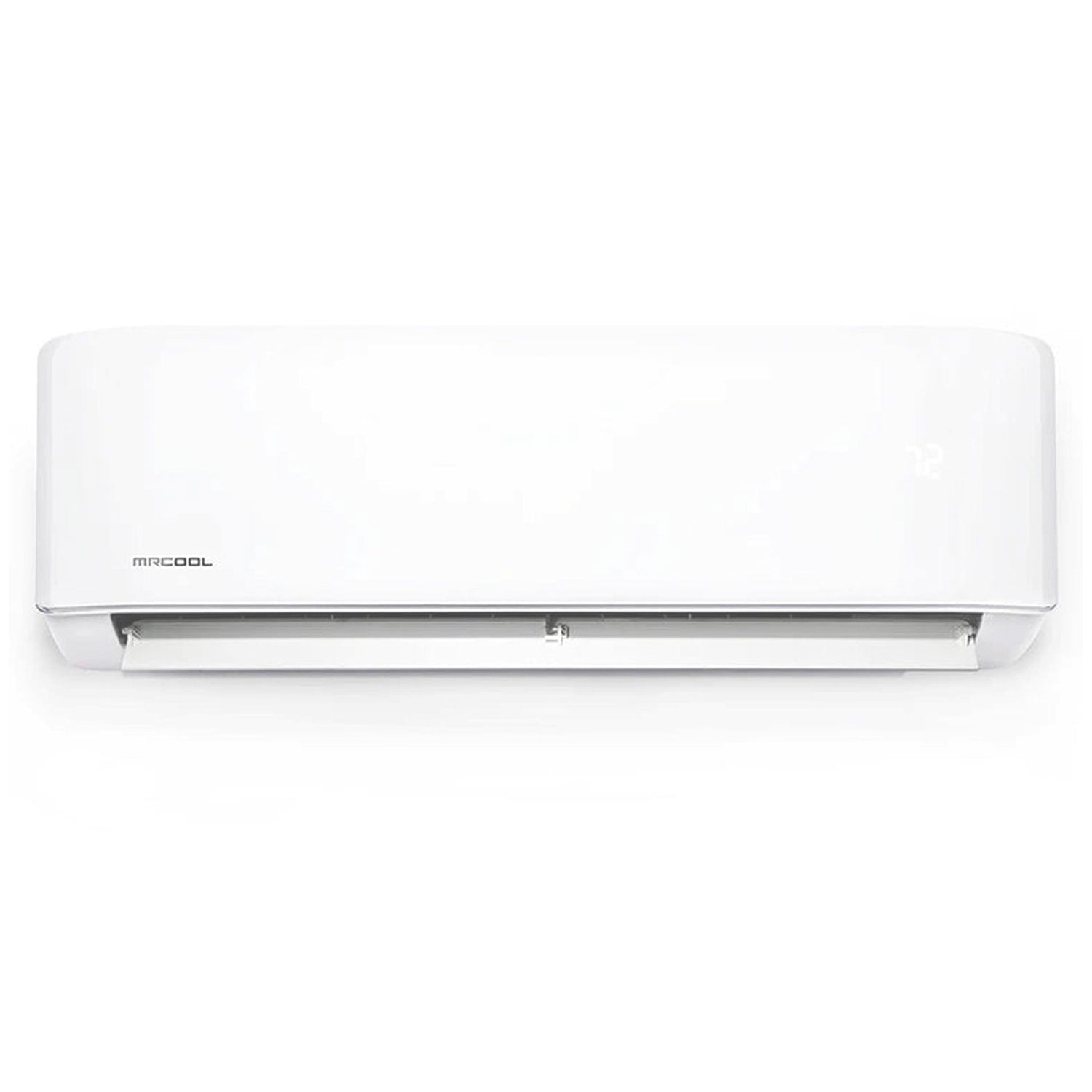

• Indoor Unit Dimensions (WxDxH): 42.52 x 8.90 x 13.19 in

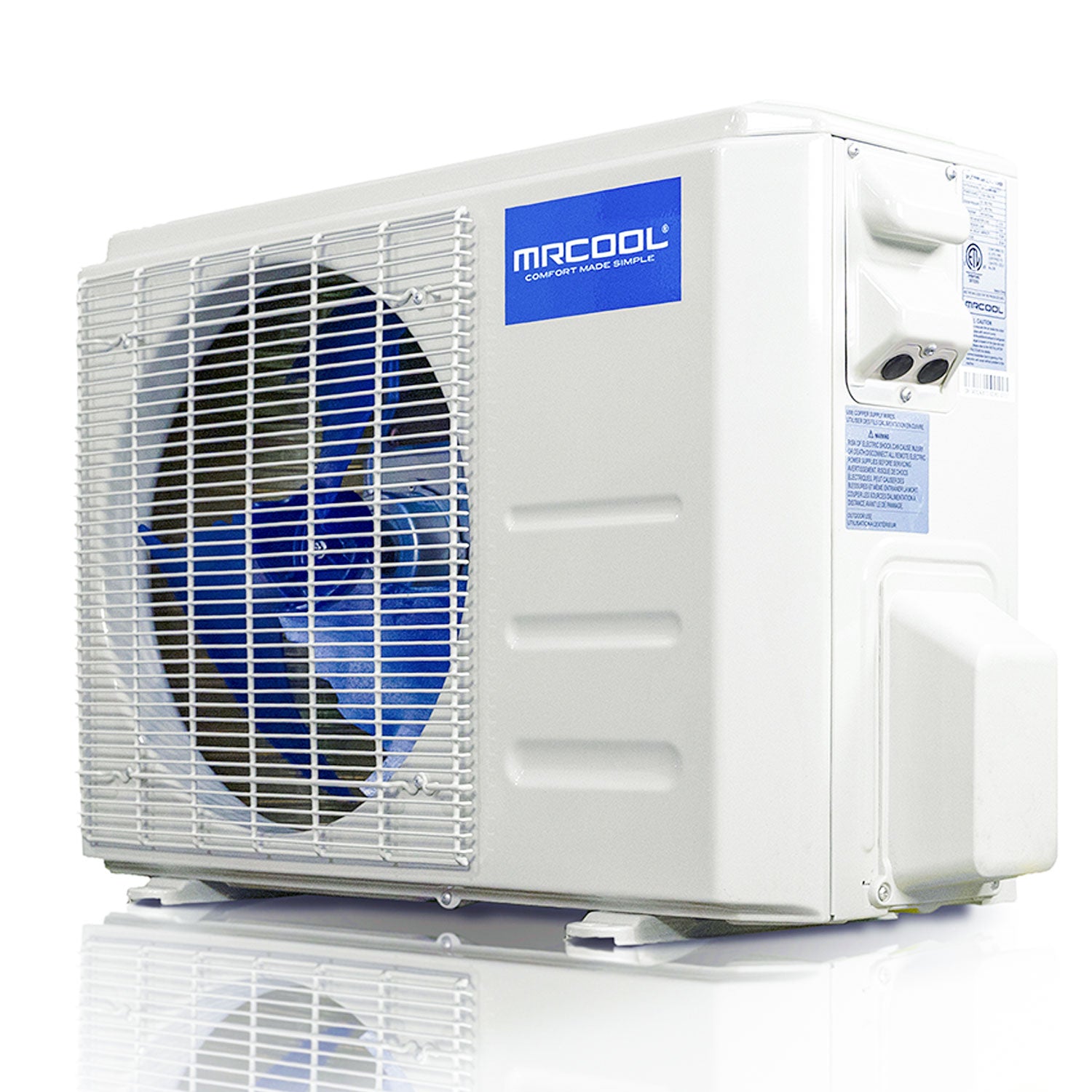

• Outdoor Unit Dimensions (WxDxH): 35.04 x 13.46 x 26.50 in
• Indoor Noise Level: as low as 21.5 dB
• Outdoor Noise Level: 59 dB
• Circuit Requirements: Indoor 3.0A (Max 15A), Outdoor 19.0A (Max 20A)
• Piping Size: 3/8 in. (liquid) x 5/8 in. (gas)
• Unit Weights: Indoor 30.64 lbs (net), Outdoor 94.58 lbs (net)
