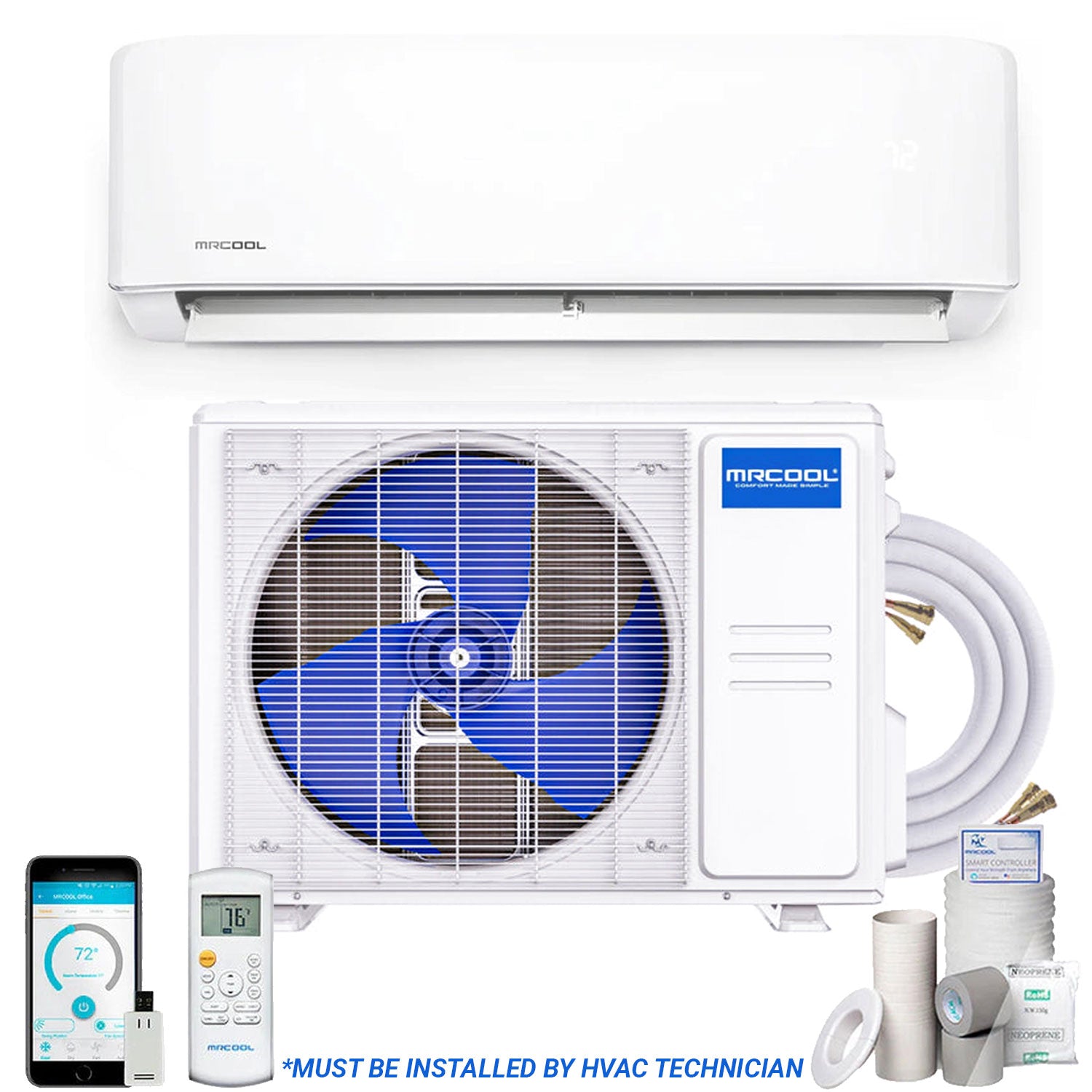

MRCOOL Advantage 5th Gen 18000 BTU Ductless Mini Split Heat Pump and Air Conditioner 230V R454B Non DIY Install Includes 16 Ft Line Set

Important: This is not a DIY model. Professional HVAC installation is required.

The MRCOOL Advantage 5th Generation 18000 BTU Mini Split is engineered for energy-efficient, year-round climate control in larger spaces up to 800 sq. ft. This system includes a 230V outdoor condenser, quiet indoor air handler, and a 16 ft. pre-charged line set for efficient ductless installation.

Featuring R454B refrigerant with a Global Warming Potential approximately 80% lower than R410A, this unit is an eco-conscious option that doesn’t sacrifice performance. With energy ratings of 19.2 SEER2 and 9.6 HSPF2-4, it delivers outstanding savings and comfort.

Built-in Wi-Fi provides easy control through the MRCOOL SmartHVAC app or voice assistants like Amazon Alexa and Google Assistant. The system includes smart features like Sleep Mode, Auto Restart, Follow Me temperature sensing, and programmable scheduling for optimized comfort.

Professional installation is required. However, the ductless configuration means a simpler, faster setup compared to central HVAC systems.

Register your unit to activate the included warranty: 2 years on parts, 1 year on the compressor, and 1 year on the remote. Enroll in the MRCOOL Care Program to qualify for an extended Limited Lifetime Warranty.

Product Highlights
• Heating and cooling in one efficient ductless system
• 19.2 SEER2 and 9.6 HSPF2 energy efficiency ratings
• Ideal for spaces up to 800 sq. ft.
• Uses R454B refrigerant with reduced environmental impact
• Built-in Wi-Fi for smartphone or voice control
• Smart features: Sleep Mode, Timer, Auto Restart, Leak Detection
• Quiet operation with noise levels as low as 19 dB indoors
• Gold Fin condenser resists corrosion, great for coastal areas
• Includes 16 ft. pre-charged line set for professional installation

Specifications
• BTU Capacity: 18000
• Voltage: 230V (208-230V, 60Hz, 1Ph)
• SEER2 Rating: 19.2
• HSPF2 Rating: 9.6
• Refrigerant: R-454B
• Wi-Fi Enabled: Yes
• Installation Type: Non-DIY (Professional required)
• Coverage Area: Up to 800 sq. ft.
• Line Set Included: 16 ft. pre-charged
• Indoor Unit Dimensions (WxDxH): 37.99 x 8.46 x 12.56 in
• Outdoor Unit Dimensions (WxDxH): 31.69 x 12.99 x 21.81 in
• Indoor Noise Level: as low as 19 dB
• Outdoor Noise Level: 56 dB
• Circuit Requirements: Indoor 3.0A (Max 15A), Outdoor 15.0A (Max 20A)
• Piping Size: 1/4 in. (liquid) x 1/2 in. (gas)
• Unit Weights: Indoor 24.47 lbs (net), Outdoor 72.31 lbs (net)
