MRCOOL A-18-HP-WMAH-230B MRCOOL Advantage 18k BTU Ductless Heat Pump

Product Description

The MRCOOL Advantage Ductless Heat Pump A-18-HP-WMAH-230B is a mini-split heating and cooling system with a SEER rating of 19. This unit is designed to provide efficient climate control in residential spaces, effectively supporting both heating and cooling needs.

• Cooling and heating capacity of 18,000 BTU
• Compatible with WiFi for remote management

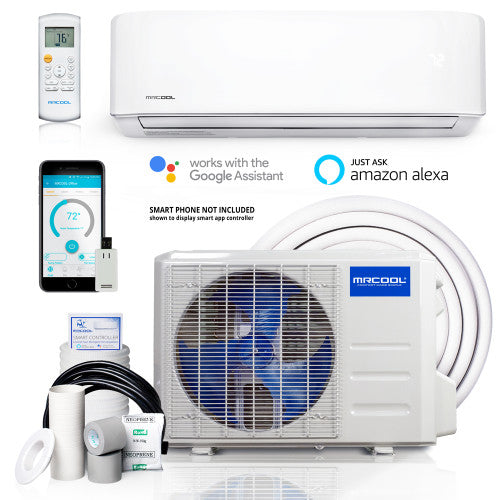

• Includes wall-mounted air handler and outdoor condenser

Product Highlights

This system includes a remote control, sleep mode, louver position memory, and auto restart functions for convenience. Use of R-410A refrigerant and installation by a certified HVAC technician is recommended for optimal performance.

Product Information

Standard Information

• Brand: MRCOOL
• Model: A-18-HP-WMAH-230B

Technical Specifications

• Cooling Capacity: 18,000 BTU
• Heating Capacity: 18,000 BTU
• SEER: 19
• EER: 11
• Input Voltage: 208-230V
• Phase: 1
• Cycle: 60 Hz
• Max Fuse Breaker: 20 A
• Min Circuit Ampacity: 15 A
• Coverage Area: 750 sq. ft.
• Refrigerant Type: R410A
• Low Ambient Cooling: 5°F
• Indoor Unit Model: A-18-HP-WMAH-230B
• Outdoor Unit Model: A-18-HP-C-230B
• Liquid Line Size: 1/4
• Suction Line Size: 1/2
• Dimensions: 21.81 x 31.50 x 13.11
• Weight: 79.8 lbs
• Filter Type: Washable
• AHRI Number: 202918800
