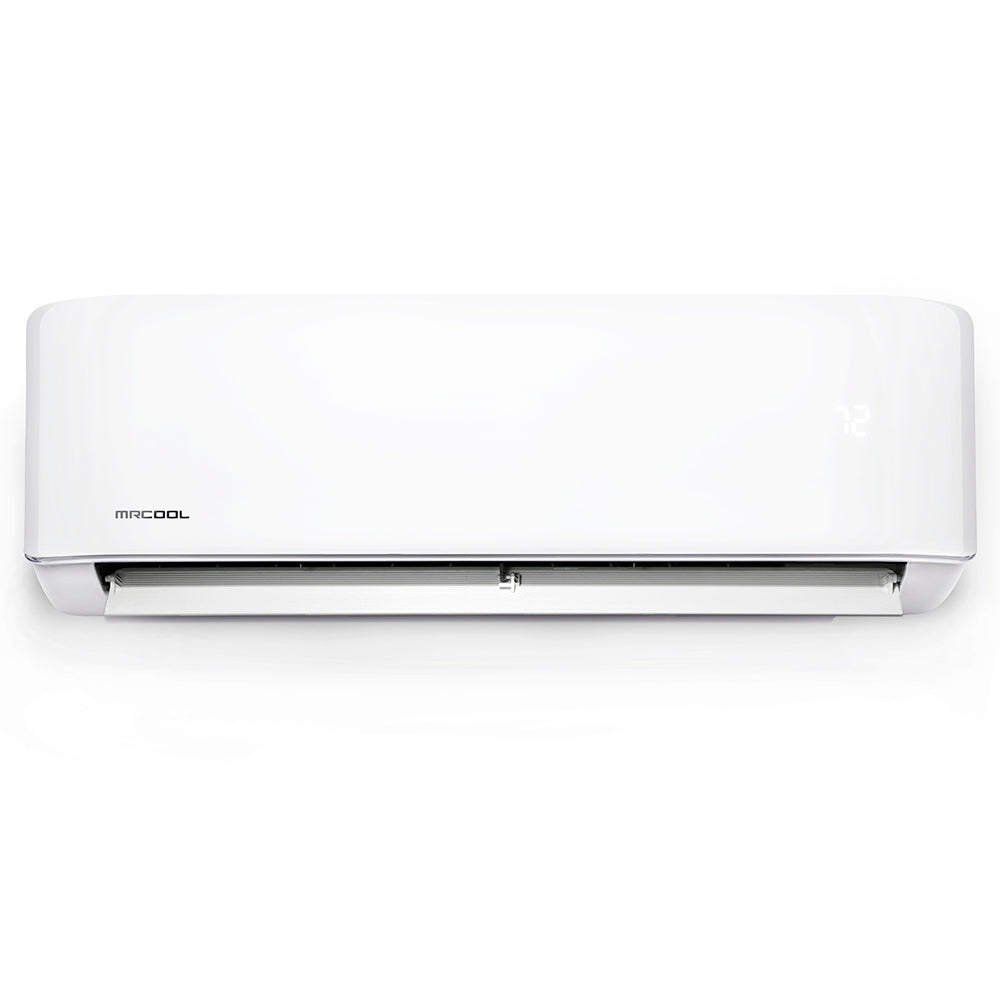

MRCOOL A-12-HP-WMAH-230C MRCOOL Advantage Ductless Mini-Split Air Handler

Product Description

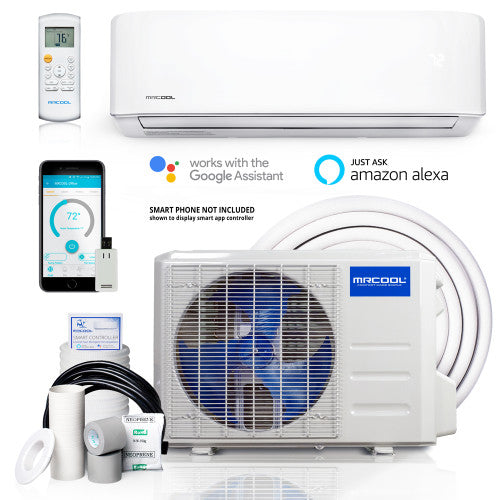

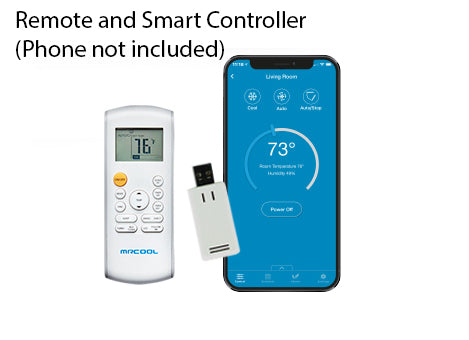

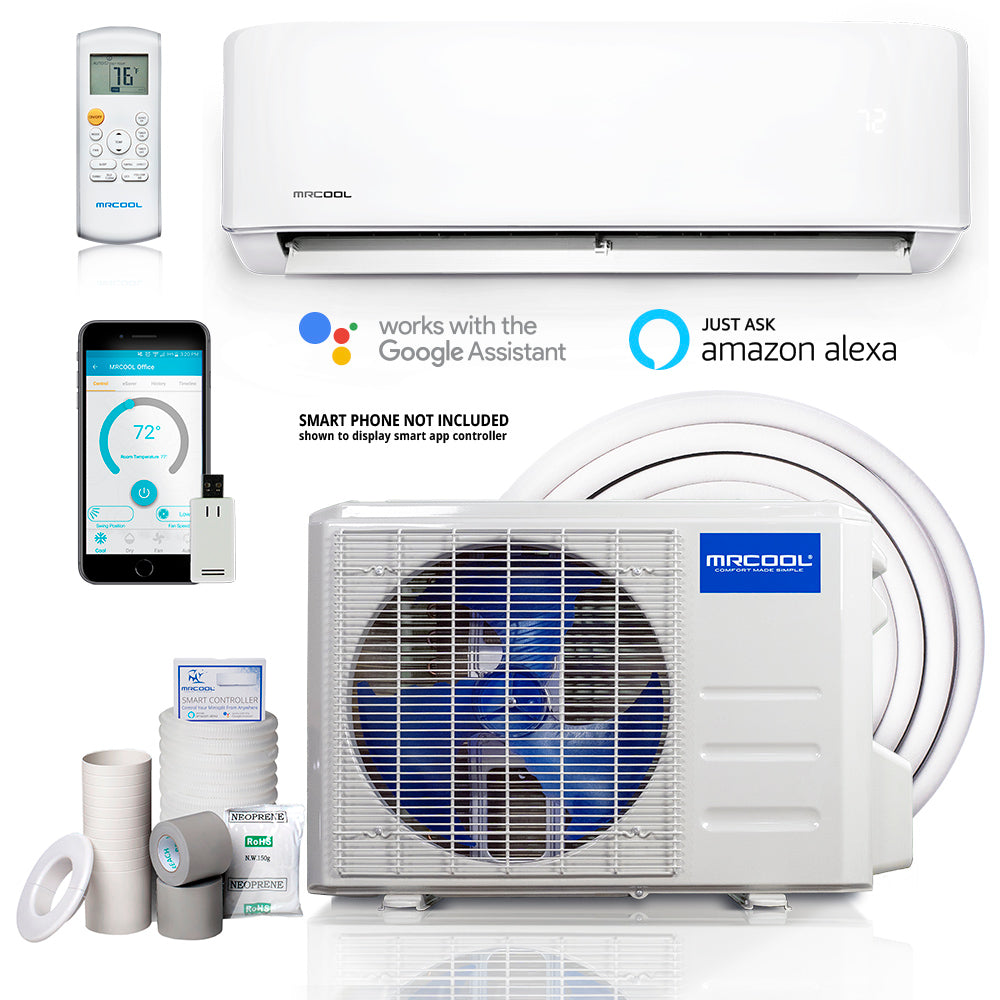

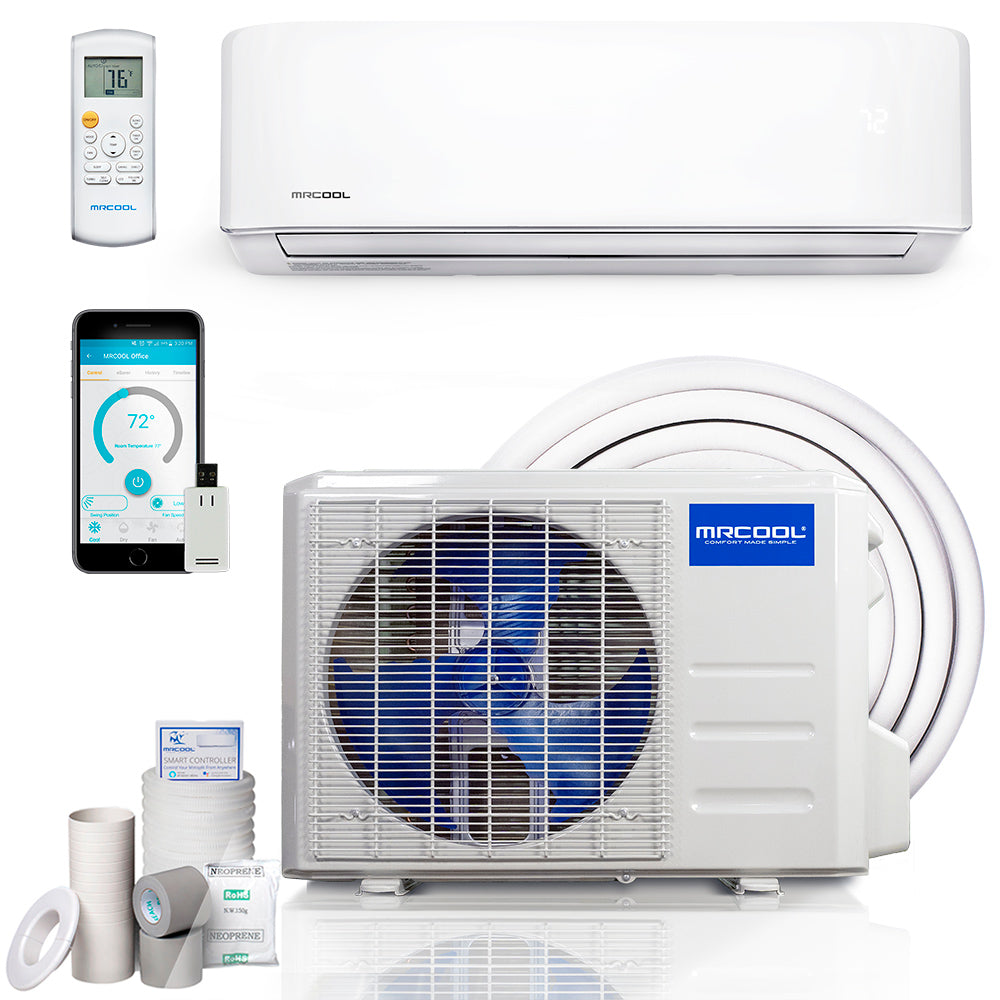

The MRCOOL Advantage A-12-HP-WMAH-230C is a ductless mini-split air handler with a cooling capacity of 12,000 BTU. This unit is designed to be mounted on walls and is suitable for residential and commercial spaces. It features smart technology, allowing compatibility with Apple and Android devices as well as integration with Amazon Alexa and Google Assistant. This functionality allows for remote control of the air handler via the SmartHVAC WiFi control module, providing convenience and ease of use.

• Cooling and heating capabilities.

• Smart technology for remote access.

• Auto-restart function for ease of use.

Product Highlights

The MRCOOL Advantage air handler is efficient and reliable, suitable for various applications, ensuring comfort through effective climate control.

Product Information

Standard Information

• Model: A-12-HP-WMAH-230C

• MPN: A-12-HP-WMAH-230C

Technical Specifications

• Cooling Capacity: 12,000 BTU

• Heating Capacity: 12,000 BTU

• SEER2: 21.4

• EER2: 10.8

• Voltage: 240

• Cool Area: 400 SQ. FT.

• Refrigerant Type: R410A

• Low Ambient Cooling: 5°F

• Net Dimensions: 31.57 x 7.44 x 11.69 inches

• Net Weight: 67 lbs

• Liquid Line Size: 1/4 inches

• Suction Line Size: 1/2 inches

• Configuration: Wall Mounted

• Air Flow Direction: Horizontal

• Blower Motor: Variable Speed

• Max Overcurrent Protection: 15 amps

• System Application Type: Ductless Split Systems

• Indoor Unit Type: Wall Mount

• Includes Heat Pump: Yes

• Fan Speeds: 3

• Indoor Noise Level (Hi/Mid/Lo): 37/30/22.5 dBA

• Control Type: Hand Held Remote

• Wired Thermostat Optional: Yes

• Min Circuit Ampacity: 15 A

• UPC: 840255521703
