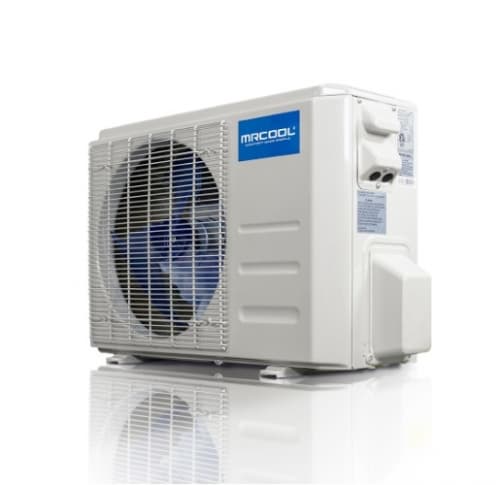

MRCOOL A-12-HP-C-230C Advantage Series Condenser

Product Description

The MRCOOL A-12-HP-C-230C is an Advantage series condenser designed specifically for ductless mini-split systems. This unit integrates both cooling and heating capabilities, offering a capacity of twelve thousand BTU per hour. The condenser supports 208/230V electrical systems and utilizes R-410A refrigerant, making it suitable for areas up to five hundred to six hundred square feet. The design promotes quiet operation and includes a gold fin condenser for enhanced corrosion resistance. Furthermore, it incorporates smart technologies, including WiFi compatibility.

• Cooling and heating capacity: 12000 BTU/H
• Electrical requirements: 208/230V, single phase
• Refrigerant type: R-410A

Product Highlights

This condenser is ideal for residential or light commercial applications, effectively maintaining comfortable temperatures in various environments.

Product Information

Standard Information

• Brand: MRCOOL
• Country of Origin: Not specified

Technical Specifications

• Cooling Capacity: 12000 BTU
• Heating Capacity: 12000 BTU
• SEER: 19
• SEER2: 21.4
• EER: 10.8
• EER2: 10.8
• HSPF2: 9.1
• Voltage: 208/230V
• Electrical Phase: 1 Ph
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 15 A
• Minimum Circuit Ampacity: 15 A
• Coverage Area: 500 Sq Ft
• Refrigerant Type: R-410A
• Decibel Rating High: 37 dBA
• Decibel Rating Low: 22.5 dBA
• Number of Speeds: 3
• Minimum Ambient Cooling: 5 Degrees F
• Liquid Line Size: 1/4 in
• Suction Line Size: 1/2 in
• Dimensions: 11.93 in x 30.12 in x 21.85 in
• Weight: 59.3 lbs
• Compressor Type: Inverter
• Certifications: cETLus Listed, CSA US, cUL/UL Listed, ETL Listed, AHRI Certified
• Warranty: 2 Year Parts, 1 Year Compressor
