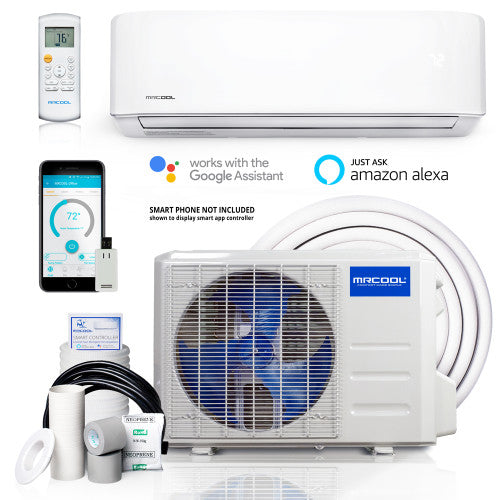

MRCOOL A-09-HP-WMAH-230B 9,000 BTU Ductless Mini-Split Air Handler

Product Description

The MRCOOL A-09-HP-WMAH-230B is a ductless mini-split air handler designed for efficient wall-mounted installation. This unit offers heating and cooling capabilities, making it suitable for various climates. It features adjustable fan speeds and multiple cooling options to ensure comfort. The unit works with the SmartHVAC app for seamless control via smartphone, remote, or smart home devices like Amazon Alexa and Google Assistant.

• Cooling capacity of 9,000 BTU/H
• Compatible with SmartHVAC app for remote operation
• Includes auto restart and sleep mode functionalities

Product Highlights

This air handler is ideal for small spaces up to 375 square feet, providing personalized comfort with adjustable airflow and smart control options.

Product Information

Standard Information

• Brand: MRCOOL
• Model: A-09-HP-WMAH-230B

Technical Specifications

• Cooling Capacity: 9000 BTU
• Heating Capacity: 9800 BTU
• SEER: 18
• EER: 11
• HSPF: 9.5
• Input Voltage: 208-230V
• Electrical Phase: 1-Phase
• Cycle: 60 Hz
• Max Overcurrent Protection: 15 amps
• Min Circuit Ampacity: 15 A
• Refrigerant Type: R410A
• Air Flow Direction: Horizontal
• Mounting Type: Wall Mounted
• Liquid Line Size: 1/4 inch
• Suction Line Size: 3/8 inch
• Dimensions: 11.42 inches x 28.43 inches x 7.36 inches
• Weight: 17 lbs
• Max Coverage Area: 375 square feet
