Mr Pex 6114001 Retropanel Straight Track 1/2 in Pex

Product Description

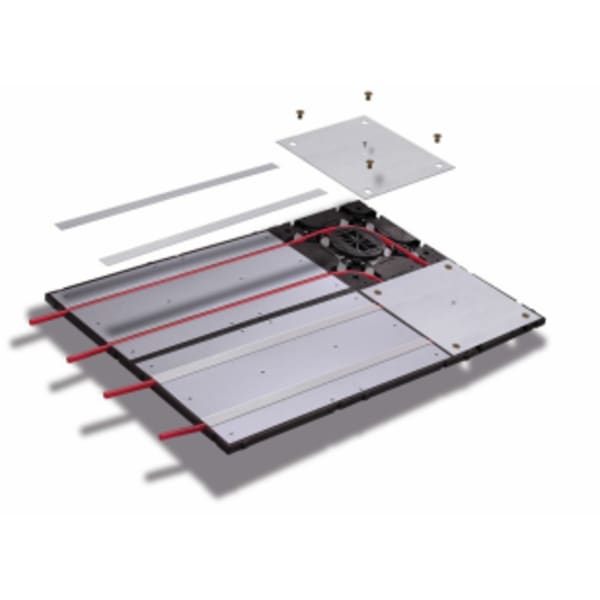

The MR PEX 6114001 is a straight aluminum track panel designed for radiant heating installations using 1/2-inch PEX tubing. Measuring 15.75 inches by 31.5 inches, this RetroPanel accepts PEX tubing to transfer heat evenly across the panel surface, improving thermal output in radiant floor or panel heating systems. Its aluminum construction promotes efficient heat conduction from the tubing to the surrounding surface. Licensed plumbers and radiant heating installers working on residential or light commercial hydronic systems are the primary installers of this product.

This panel is suited for radiant heating retrofit applications where PEX tubing needs to be routed and secured in a straight-run configuration. The RetroPanel design is intended for installations where tubing is embedded or secured beneath flooring or within wall and ceiling assemblies. It works with standard 1/2-inch PEX tubing commonly used in low-temperature hydronic distribution systems.

Key Features

• Aluminum construction for efficient heat transfer from PEX tubing to panel surface
• Straight track configuration for clean, linear PEX tubing runs
• Panel dimensions of 15.75 inches by 31.5 inches suit standard bay spacing in retrofit installs
• Compatible with 1/2-inch PEX tubing, the most common size in residential hydronic systems
• Designed for retrofit scenarios where tubing is routed without full slab or subfloor access

Compatibility

Designed for use with 1/2-inch PEX tubing in radiant heating panel installations.

Installation Notes

Installation is typically performed by a licensed plumber or radiant heating technician. Before servicing or connecting tubing, shut off and depressurize the hydronic circuit. Secure the panel according to the structural assembly requirements of the flooring or ceiling system. Follow local mechanical and plumbing codes for hydronic radiant system installations.

Technical Specifications

• Material: Aluminum
• Panel Length: 31.5 inches
• Panel Width: 15.75 inches
• Tubing Compatibility: 1/2 inch PEX
• Track Type: Straight

Standard Information

• Brand: MR PEX
• Manufacturer Part Number: 6114001
