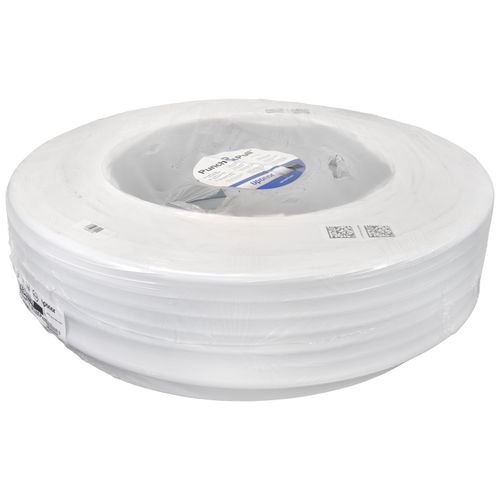

MR PEX 4360750 3/4 Uponor AquaPEX White with Blue Print 300-ft Coil

Product Description

The MR PEX 4360750 is a three-fourth inch Uponor AquaPEX pipe designed for plumbing applications. This white pipe features a blue print and is provided in a three hundred foot coil. It is suitable for cold potable water distribution systems as well as radiant heating and cooling systems. The pipe is made from crosslinked polyethylene (PEX-a) and is a non-oxygen barrier type. It adheres to standards such as ASTM F877, NSF, and DIN4726.

• Sizes available: Three-fourth inch nominal pipe size
• Constructed from crosslinked polyethylene (PEX-a)
• Supplied in a three hundred foot coil

Product Highlights

This PEX pipe is durable and flexible, making it ideal for various plumbing needs.

Product Information

Standard Information

• Material: PEX
• Application: Plumbing
• Color: White (Blue Print)

Technical Specifications

• MPN: 4360750
• Fitting System Compatibility: PEX Compression, Clamp, Crimp, PEX Press, Expansion PEX, Push Fit
• Size: 3/4 inch
• Shape: Coil
• Tubing Type: Non-Oxygen Barrier
• Maximum Pressure: 160 psi
• Outside Diameter: 0.875 inches
• Grade: PEX-a
• Warranty: 25 Year
• Inside Diameter: 0.671 inches
• Standards Met: ASTM F877, NSF, DIN4726
• Maximum Temperature: 200°F
• Coil Inner Diameter: 22 inches
• Coil Outer Diameter: 32 inches
• Coil Width: 8 inches
• Operating Pressure: 100 psi
• Operating Temperature: 73°F
• Linear Expansion Rate: 1.1 inches per 10°F per 100 feet
• Pipe Density: 0.0584 lb/ft³
• SDR-class: 9
