Mr Pex 3320600 6 loop 1-1/2 inches chrome plated brass manifold with flowmeter & ball valve

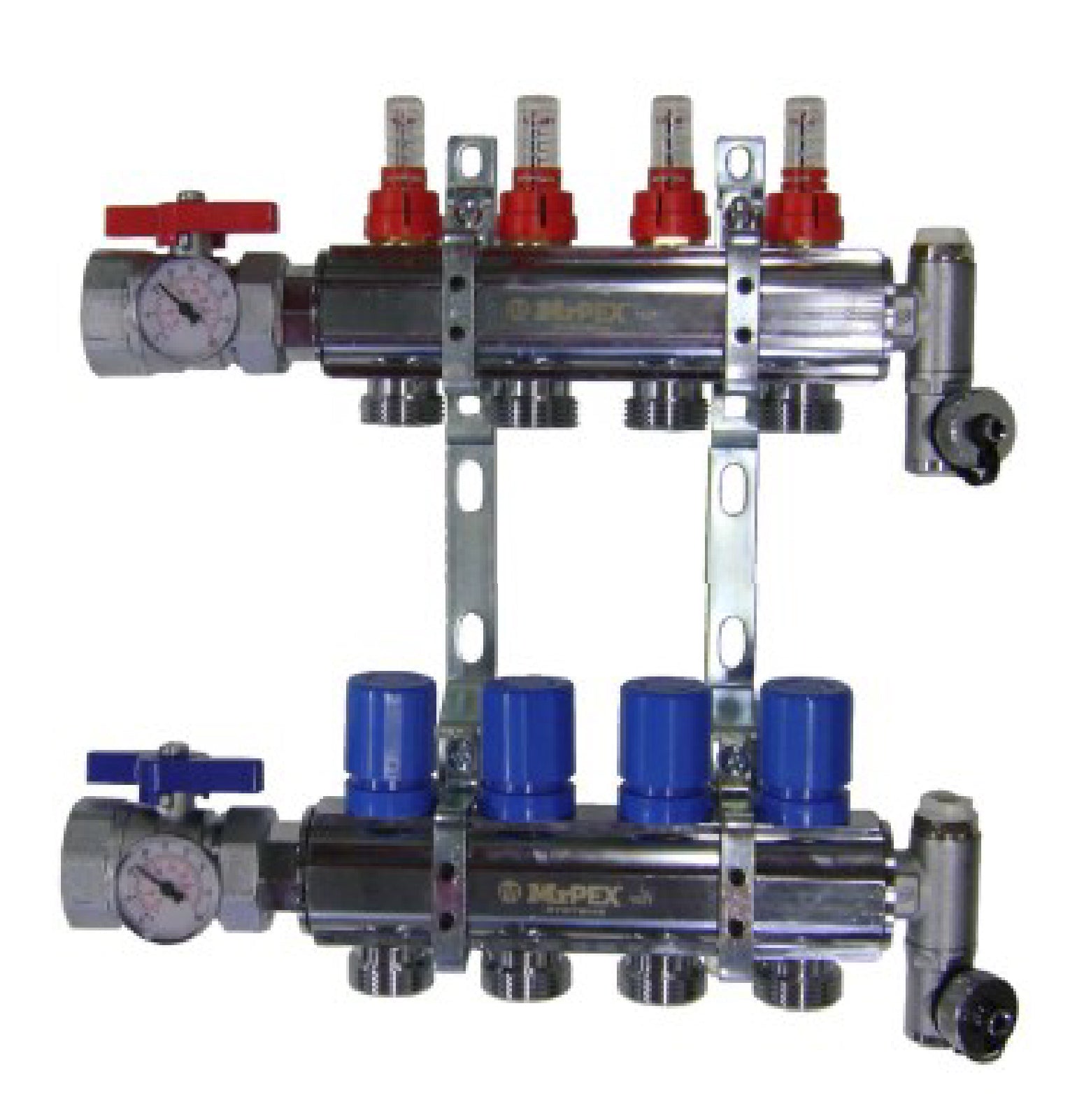

Product Description

The MR PEX 3320600 is a 6 loop 1-1/2" chrome plated brass manifold designed for radiant heating systems. Made from high-quality extruded brass, this manifold features adjustable flow-meters for precise control of flows up to 1.6 gpm per loop. The return side includes valved on/off valves, with a balancing valve disc engineered for exact adjustments of small flows while accommodating large flows. It supports PEX and PEX-AL-PEX tubing, ideal for hydronic heating applications.

• Made from high-quality extruded brass
• Adjustable flow-meters for flows up to 1.6 gpm per loop
• Valved manifold with on/off valves on return side

Product Highlights

This fully assembled manifold provides precise flow control and robust construction for efficient radiant heating systems.

Product Information

Standard Information

• Brand: MR PEX
• Manufacturer Part Number: 3320600

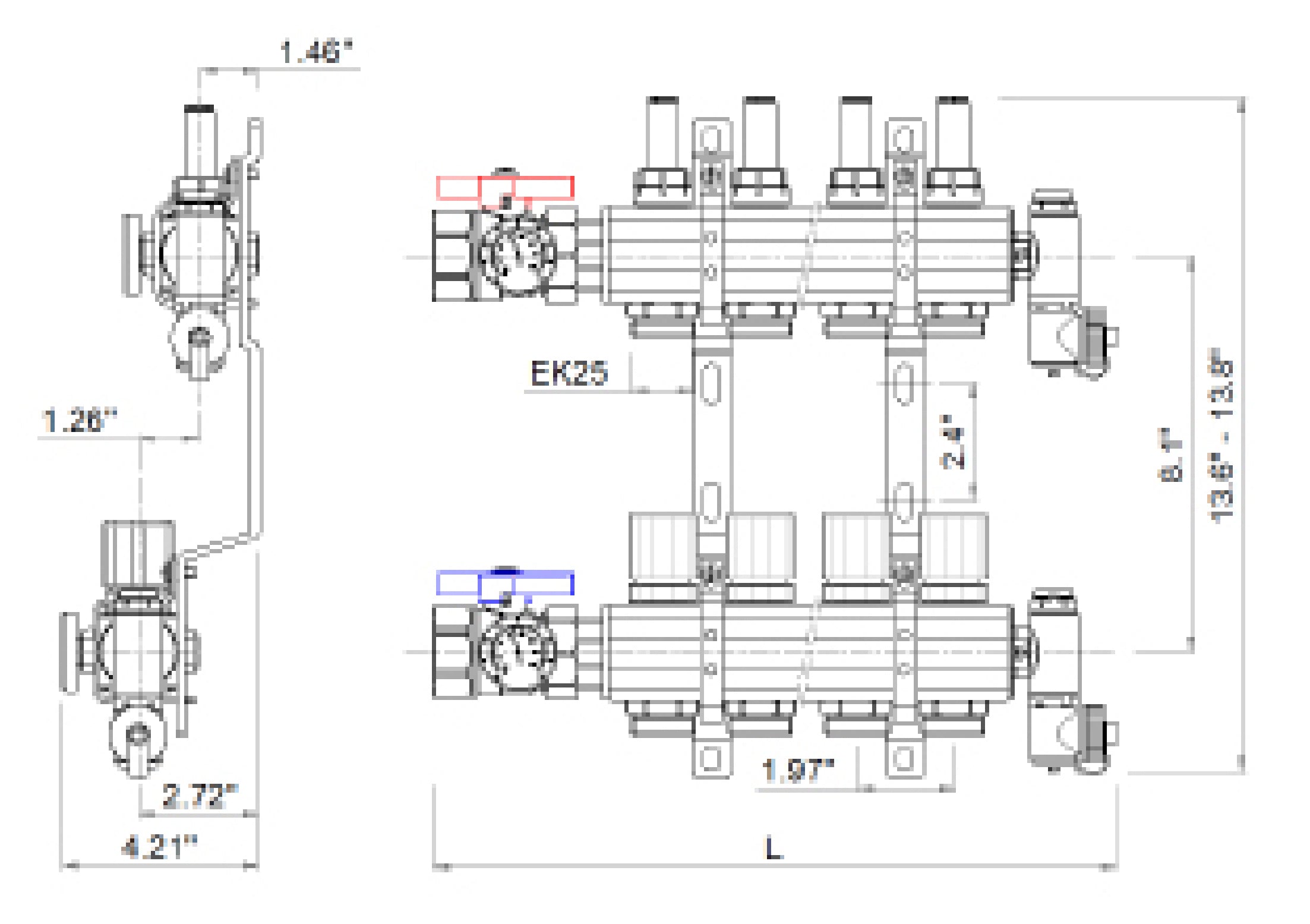

Technical Specifications

• PEX Size: 3/4", 5/8"
• Loop Thread: EK25
• Supply Connection Size: 1-1/4" FNPT
• Supply Connection Type: BSP
• Number of Outlets: 6
• Material: Brass
• Application: Heating
• Fitting System Compatibility: PEX-AL-PEX Compression, PEX Compression
• Tubing Compatibility: PEX, PEX-AL-PEX
• Manifold Compatibility: Mr. PEX Manifold
• Manifold Body Material: ASTM B124 C37700 (CW612N EN12168)
• Brass Components Material: ASTM B124 C37700 (CW614N and CW617N)
• Operating Pressure: 87 psi
• Maximum Pressure (at 70 degrees F): 145 psi
• Maximum Continuous Working Temperature: 160 degrees F
• Maximum Intermittent Working Temperature: 185 degrees F (maximum 10 minutes/day)
• Working Temperature Range: 41 degrees to 158 degrees F
• Maximum Differential Pressure: 14.5 psi
• Fluids Allowed: Water/Up to 50% Propylene glycol
• Flow Indication Scale: 0 to 2 GPM (precision plus/minus 10%)
• Thermometer Scale: 32 to 175 degrees F
• Supply Balancing Flowmeter (wide open) Cv: 1.39
• Return Interception Valve (wide open) Cv: 3.24
• Manifold Union: G1-1/4" Female Swivel Nut Flat Seat
• Ball Valve Connection: 1-1/4" NPT Female x G1-14" Male Flat Seat
• Loop Connections: G1" Eurocone (EK25)
• Fill and Drain Valve Connections: 3/4" GHT
• Actuator Adapter Connection: M30x1.5
• Combined Branch Cv Value: 1.64 gpm
• Manifold Body Flow Capacity: 22 gpm
